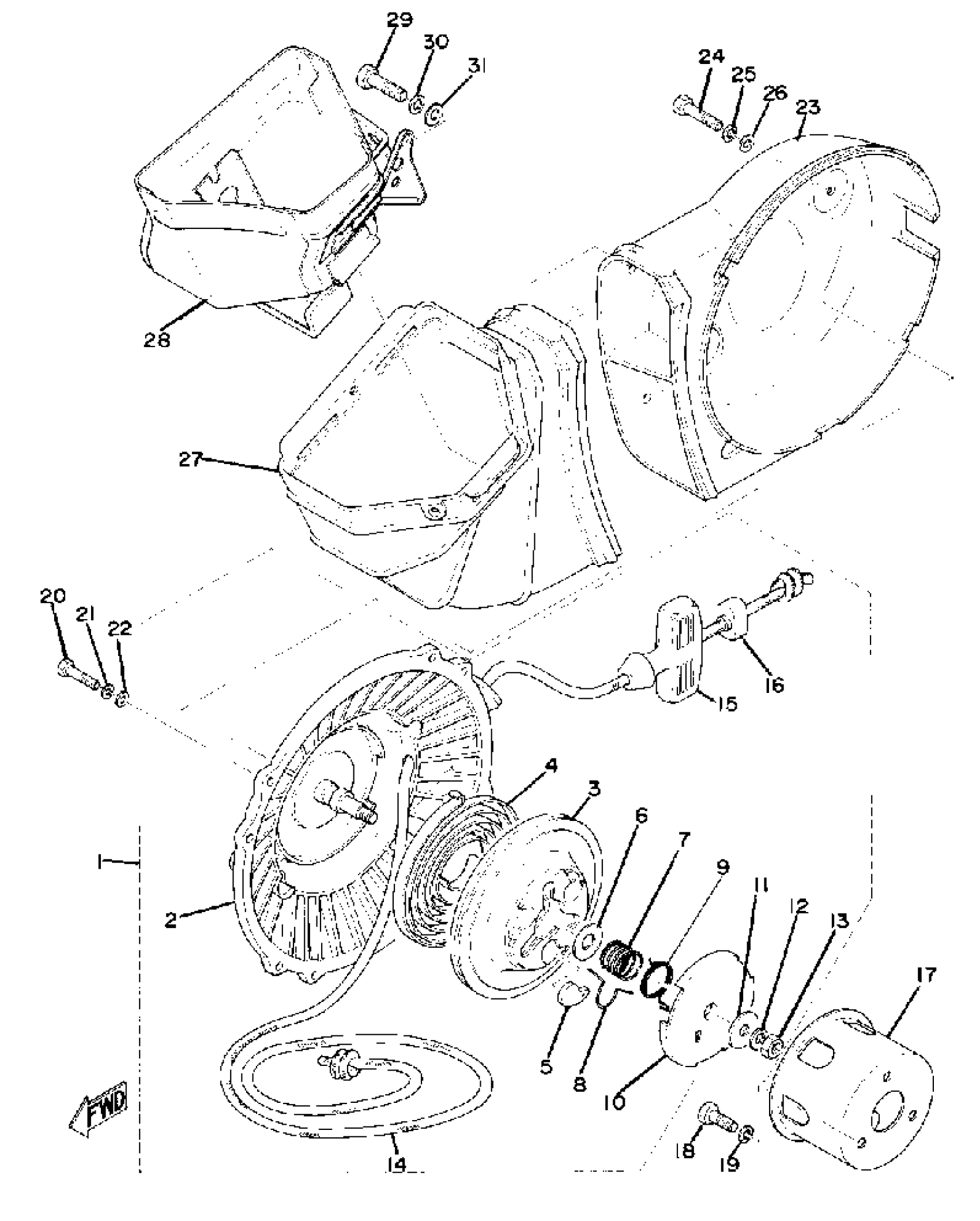

Yamaha PR440 1976 STARTER Diagram

#

Description
Price

1

STARTER ASSEMBLY

8G6-15710-00-00

Unavailable

2

. CASE, STARTER

8A1-15711-00-00

Unavailable

3

. DRUM, SHEAVE

857-15714-00-00

Unavailable

4

SPRING, STARTER

8F3-15713-01-00

$48.99

5

. PAWL, DRIVE

616-15741-01-00

Unavailable

6

WASHER, FLAT

(802-15726-00-00)

Unavailable

7

SPRING,DRIVE PLATE

626-15715-01-00

Unavailable

8

. SPRING, RETURN

811-15784-00-00

Unavailable

9

. SPRING, RETURN

811-15734-00-00

Unavailable

10

. PLATE, DRIVE

811-15716-00-00

Unavailable

11

WASHER,FLAT

807-15726-01-00

Unavailable

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

NUT, HEXAGON SMALL

95317-05700-00

$8.49

14

ROPE, STARTER

(807-15751-00-00)

Unavailable

15

. HANDLE, STARTER

807-15755-00-00

Unavailable

16

GUIDE, ROPE

(8A1-15758-00-00)

Unavailable

17

PULLEY, STARTER

8A1-15723-00-00

Unavailable

18

BOLT(JA9)

90101-08691-00

Unavailable

19

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

20

BOLT, HEXAGON

97017-06020-00

Unavailable

21

WASHER, SPRING

92907-06100-00

Unavailable

22

WASHER(6TA)

92907-06600-00

Unavailable

23

DUCT, AIR

8A1-15471-01-00

Unavailable

24

BOLT (661)

97013-06012-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

27

DUCT, AIR

(8A1-15473-00-00)

Unavailable

28

DUCT, AIR

(8A1-15475-00-00)

Unavailable

29

BOLT (682)

97095-06040-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

WASHER, PLAIN (646)

92990-06600-00

Unavailable
