OIL TANK - COOLER

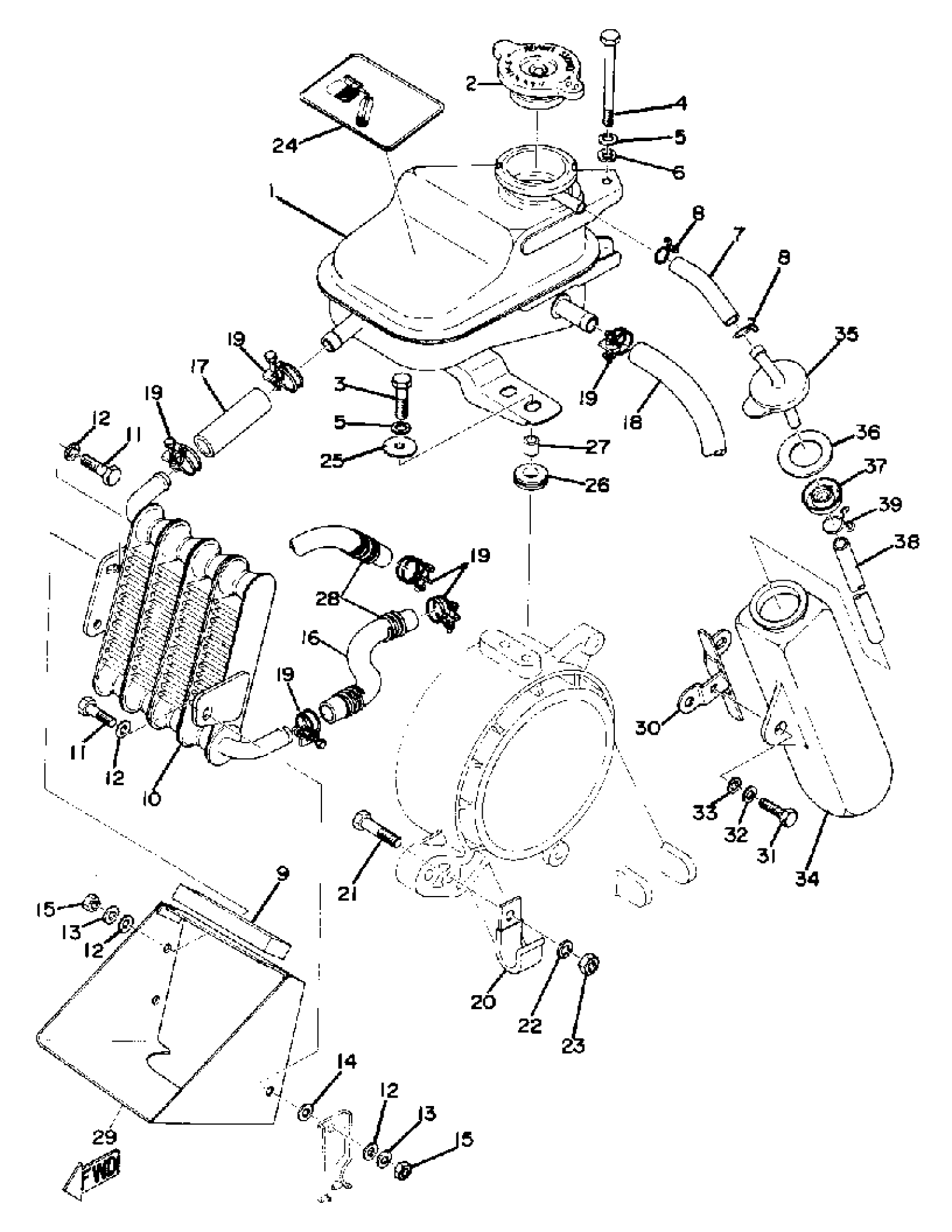

Yamaha PR440 1976 OIL TANK - COOLER Diagram
#
1
TANK, TQ/CONV OIL
(8A2-21811-00-00)
Unavailable
2
CAP, RADIATOR
11H-12462-00-00
$108.99
3
BOLT, HEXAGON
97017-06020-00
$4.06
4
BOLT(7LR)
97027-06080-00
$7.49
5
WASHER, SPRING
92995-06100-00
Unavailable
6
WASHER, PLAIN (646)
92990-06600-00
$2.80
7
HOSE
90445-11294-00
Unavailable
8
CLIP
90467-100A1-00
$7.49
9
DAMPER
(8A2-21852-00-00)
Unavailable
10
COOLER
(8A2-21841-01-00)
Unavailable
11
BOLT, HEXAGON
97013-08020-00
$1.16
12
.. WASHER, PLATE
92990-08600-00
Unavailable
13
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
14
WASHER 6154275100
90201-08103-00
Unavailable
15
NUT(6L2)
95333-08600-00
$2.49
16
PIPE 2
(8A2-21817-01-00)
Unavailable
17
PIPE 3
(8A2-21818-00-00)
Unavailable
18
PIPE 1
(8A2-21816-00-00)
Unavailable
19
CLAMP, HOSE (834-21822-00)
90460-19039-00
Unavailable
20
CLAMP
(90465-10018-00)
Unavailable
21
BOLT, HEXAGON
97013-08030-00
Unavailable
22
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
23
NUT(6L2)
95333-08600-00
$2.49
24
ORMNT, TQ/CONV TANK
(8A2-21835-00-00)
Unavailable
25
WASHER PLATE 137241870000
90201-06072-00
Unavailable
26
GROMMET (431)
90480-14052-00
Unavailable
27
COLLAR (90387-066J9)
90387-064W1-00
Unavailable
28
PROTCTOR, HOSE
(8A2-21824-00-00)
Unavailable
29
DUCT, COOLER
(8A2-21851-00-00)
Unavailable
30
BRACKET, RECOV TANK
(8A2-21873-00-00)
Unavailable
31
BOLT, HEXAGON
97013-08020-00
$1.16
32
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
33
.. WASHER, PLATE
92990-08600-00
Unavailable
34
TANK, RECOVERY
8A2-21871-00-00
Unavailable
35
CAP
8A2-21875-00-00
Unavailable
36
GASKET, CAP
8A2-16716-00-00
Unavailable
37
STOPPER
8A2-21872-00-00
Unavailable
38
HOSE (L198)
90445-11293-00
Unavailable
39
CLIP
90467-100A1-00
$7.49
