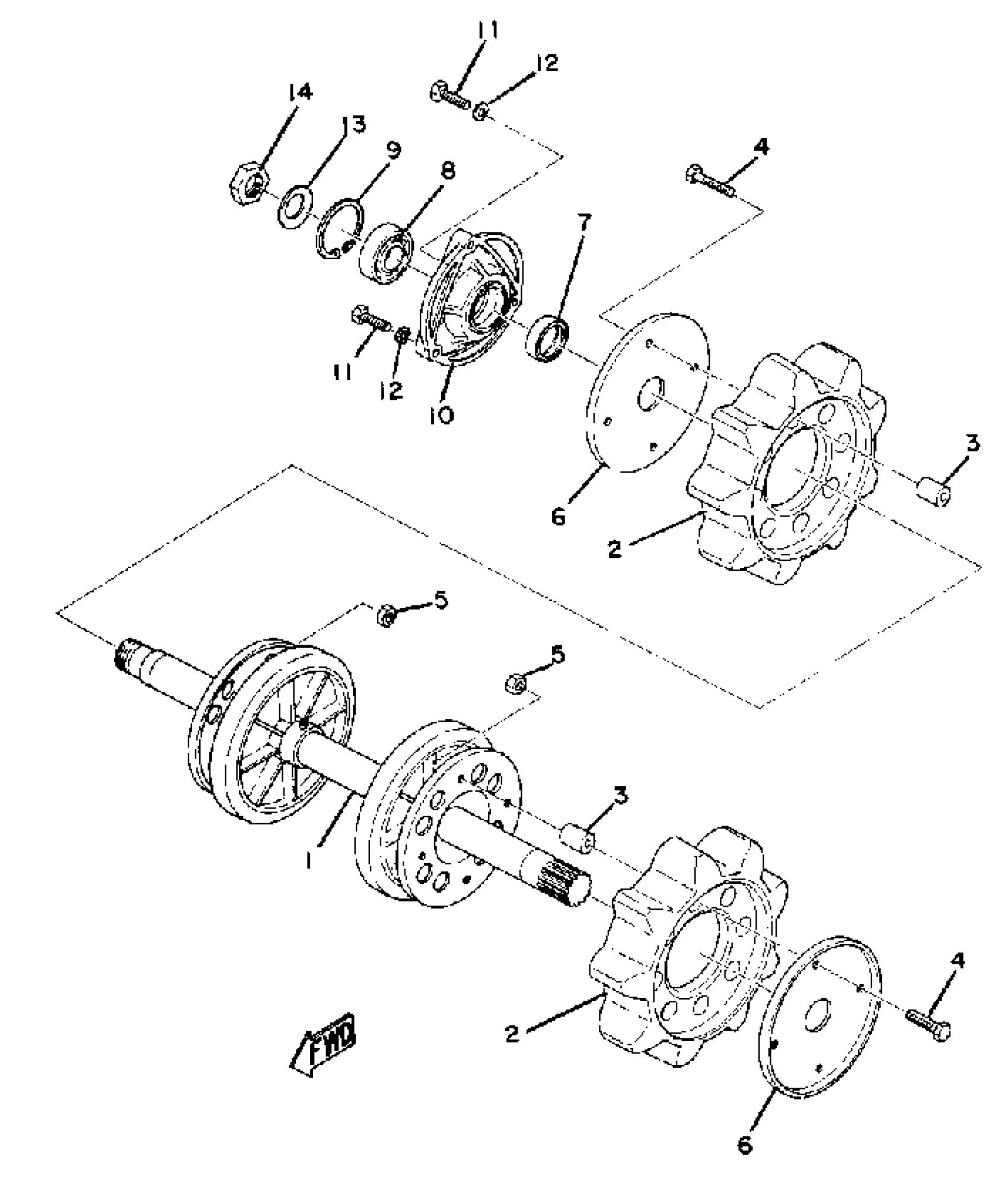

Yamaha PR440 1976 FRONT AXLE Diagram

#

Description
Price

1

FRONT AXLE

890-47510-00-00

Unavailable

2

WHEEL, SPROCKET 1

890-47531-00-00

Unavailable

3

COLLAR

(90387-06476-00)

Unavailable

4

BOLT, HEXAGON

97017-06025-00

$4.24

5

NUT, NYLON

95707-06300-00

$3.50

6

RIM, SPROCKET WHL 2

(890-47522-00-00)

Unavailable

7

OIL SEAL,SD-TYPE

93102-25332-00

Unavailable

8

BEARING

93306-00412-00

Unavailable

9

CIRCLIP, R-TYPE

93420-44029-00

Unavailable

10

HOUSING, FRONT AXLE

841-47551-00-00

Unavailable

11

BOLT (682)

97013-08025-00

$8.49

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

WASHER 810475810000

90208-22001-00

$8.49

14

NUT (821-47579-00)

90170-22094-00

$5.60
