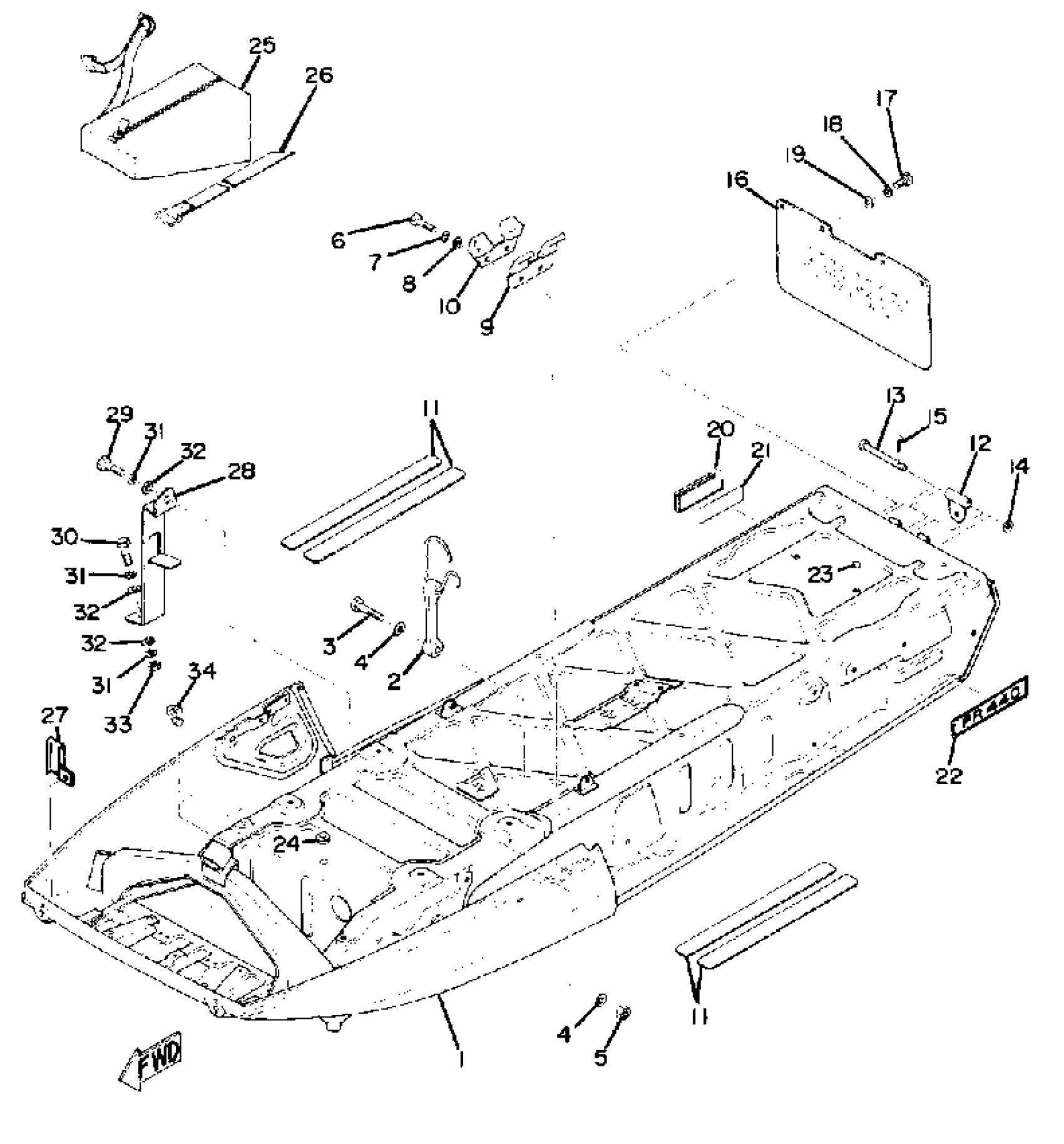

Yamaha PR440 1976 FRAME Diagram
#
1
FRAME
(8A2-21910-00-00)
Unavailable
2
LATCH ASSEMBLY
8A1-77170-01-00
Unavailable
3
SCREW, BIND(J39)
98980-06030-00
$7.49
4
WASHER, PLATE
90201-06380-00
$0.60
5
NUT, SELF-LOCKING
95617-06100-00
$8.49
6
BOLT(3JK)
97027-05020-00
$3.29
7
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
8
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
9
CLAMP 3
(8A1-77137-00-00)
Unavailable
10
STOPPER
8A1-77188-00-00
Unavailable
11
COVER, FOOTREST
878-27423-00-00
Unavailable
12
BRACKET, HITCH 1
802-77591-00-00
Unavailable
13
PIN, CLEVIS
(91701-08102-00)
Unavailable
14
.. WASHER, PLATE
92990-08600-00
Unavailable
15
PIN, COTTER
91490-25020-00
$3.19
16
FLAP
865-77595-00-00
Unavailable
17
UNAVAILABLE IN PRICE BOOK
97301-06108-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
19
WASHER, PLATE (J10)
90201-06697-00
Unavailable
20
REAR REFLECTOR ASSY
81G-85130-00-00
Unavailable
21
TAPE, REFLECTOR
878-85133-00-00
Unavailable
22
EMBLEM 4
(8A2-77354-01-00)
Unavailable
23
COVER, NUT
(867-21969-00-00)
Unavailable
24
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
25
SERVICE BAG CMPLT
(8A1-77331-00-00)
Unavailable
26
BAND, SERVICE BAG
(8A1-77332-00-00)
Unavailable
27
PROTC, WIRE HARNESS
(8E4-82589-00-00)
Unavailable
28
STAY, BELT
(8A1-77338-00-00)
Unavailable
29
BOLT (661)
97013-06012-00
Unavailable
30
BOLT(8CP)
97017-06014-00
Unavailable
31
WASHER, SPRING
92995-06100-00
Unavailable
32
WASHER, PLAIN (646)
92990-06600-00
Unavailable
33
NUT, HEXAGON
95380-06600-00
Unavailable
34
NO LONGER AVAILABLE
841-82591-00-00
Unavailable
