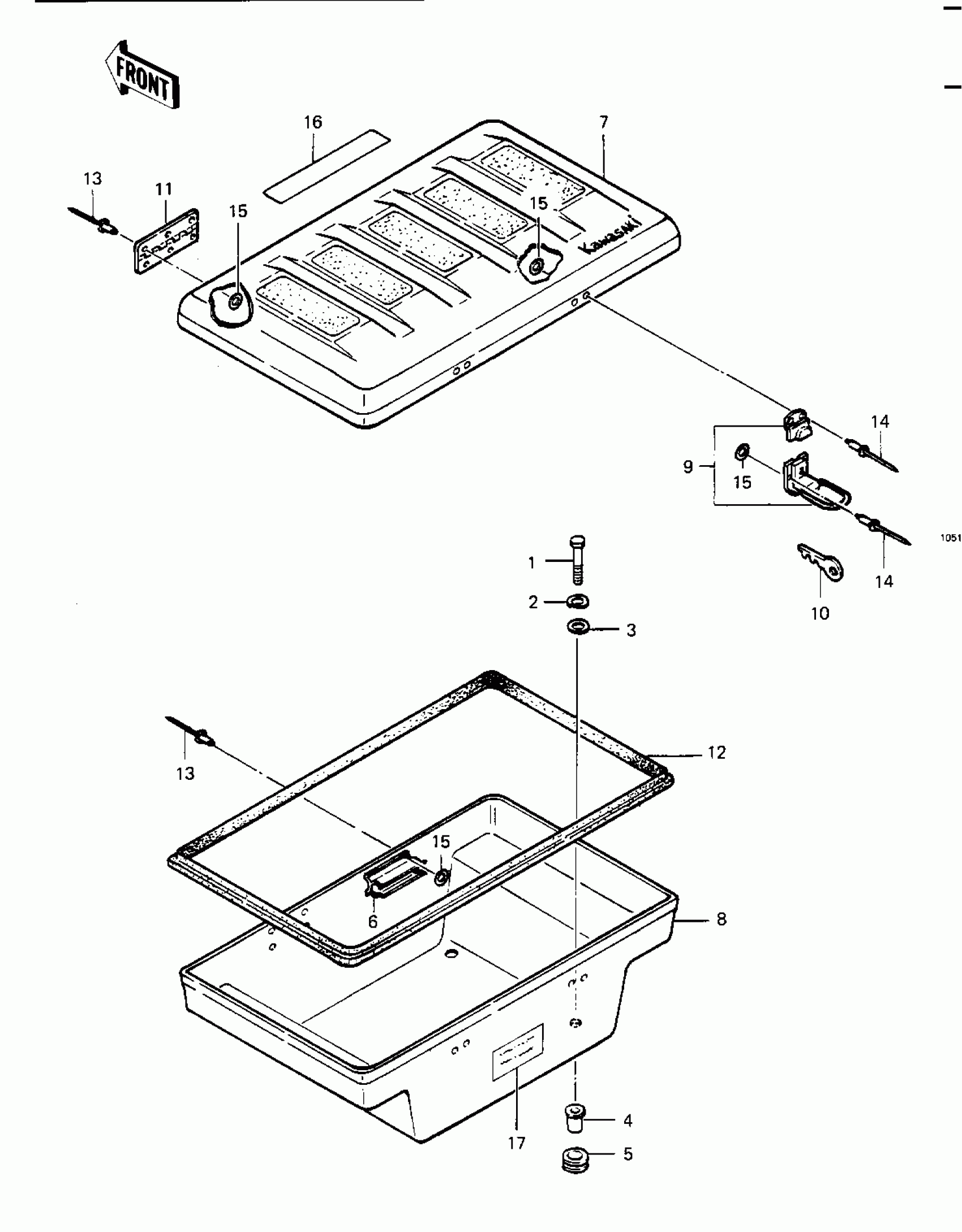

Kawasaki Police TRUNK Diagram

#

Description
Price

1

BOLT,8X40

115G0840

$6.00

2

WASHER SPRING 8MM

461F0800

$0.40

3

WASHER PLAIN 8MM

410B0800

$0.93

4

COLLAR,FUEL TANK FITT

92027-1134

$10.28

5

DAMPER RUBB TANK FRNT

92075-013

$5.47

6

HOLDER,CASE-ASSY

13091-4020

Unavailable

7

COVER-TRUNK.J-WHITE

14025-4028-8C

Unavailable

8

CASE-TRUNK.J-WHITE

32099-4017-8C

$237.59

9

LATCH

49031-4002

$14.49

10

KEY

27008-4001

Unavailable

11

HINGE,TRUNK

53009-4005

$9.87

12

SEAL-TRUNK

92093-4009

Unavailable

13

RIVET

92039-4007

$0.59

14

RIVET,POP

92039-4006

$1.36

15

WASHER

92022-4017

$0.82

16

LABEL-NO PASSENGER

56040-4008

$2.27

17

LABEL-WARNING

56040-4012

$2.08
