Description

Price

1

SHAFT-TRANSMISSION IN

13127-1068

Unavailable

2

SHAFT,OUTPUT

13128-1007

Unavailable

3

GEAR,INPUT,2ND,13T

13129-1316

Unavailable

4

GEAR,INPUT,3RD,18T

13129-1317

Unavailable

5

GEAR,INPUT,TOP,24T

13129-1318

Unavailable

6

GEAR,OUTPUT,2ND,27T

13129-1320

Unavailable

7

GEAR,OUTPUT,3RD,26T

13129-1321

Unavailable

8

GEAR,OUTPUT,4TH,21T

13129-1322

Unavailable

9

GEAR,OUTPUT,TOP,20T

13129-1323

Unavailable

10

GEAR-TRANSMISSION SPU

13129-1422

Unavailable

11

4TH GEAR,DRIVE SHAFT

13134-026

Unavailable

12

SPROCKET-OUTPUT,13T

13144-1038

Unavailable

12

SPROCKET-OUTPUT,12T

13144-1039

Unavailable

13

NUT,LOCK,16M/M

92015-1013

Unavailable

14

WASHER,LOCK

92022-1017

Unavailable

15

WASHER,20.5X30X1,STEEL

92022-112

$8.86

16

WASHER-HANDLEBAR FIT

92022-196

Unavailable

17

WASHER,THRUST,15MM

92022-279

$10.56

18

WASHER,TOOTHED,22.5X27X0.5

92024-039

$6.27

19

SPACER,DRIVE SHAFT

92026-1061

$8.94

20

COLLAR,ENGINE SPROCKT

92027-287

Unavailable

21

RING-SNAP,20X25.5X1.2

92033-025

$4.96

22

RING-SNAP,18MM

92033-029

$9.82

23

RING-SNAP

92033-032

$4.96

24

RING-O,17.5X1.5

92055-022

$6.22

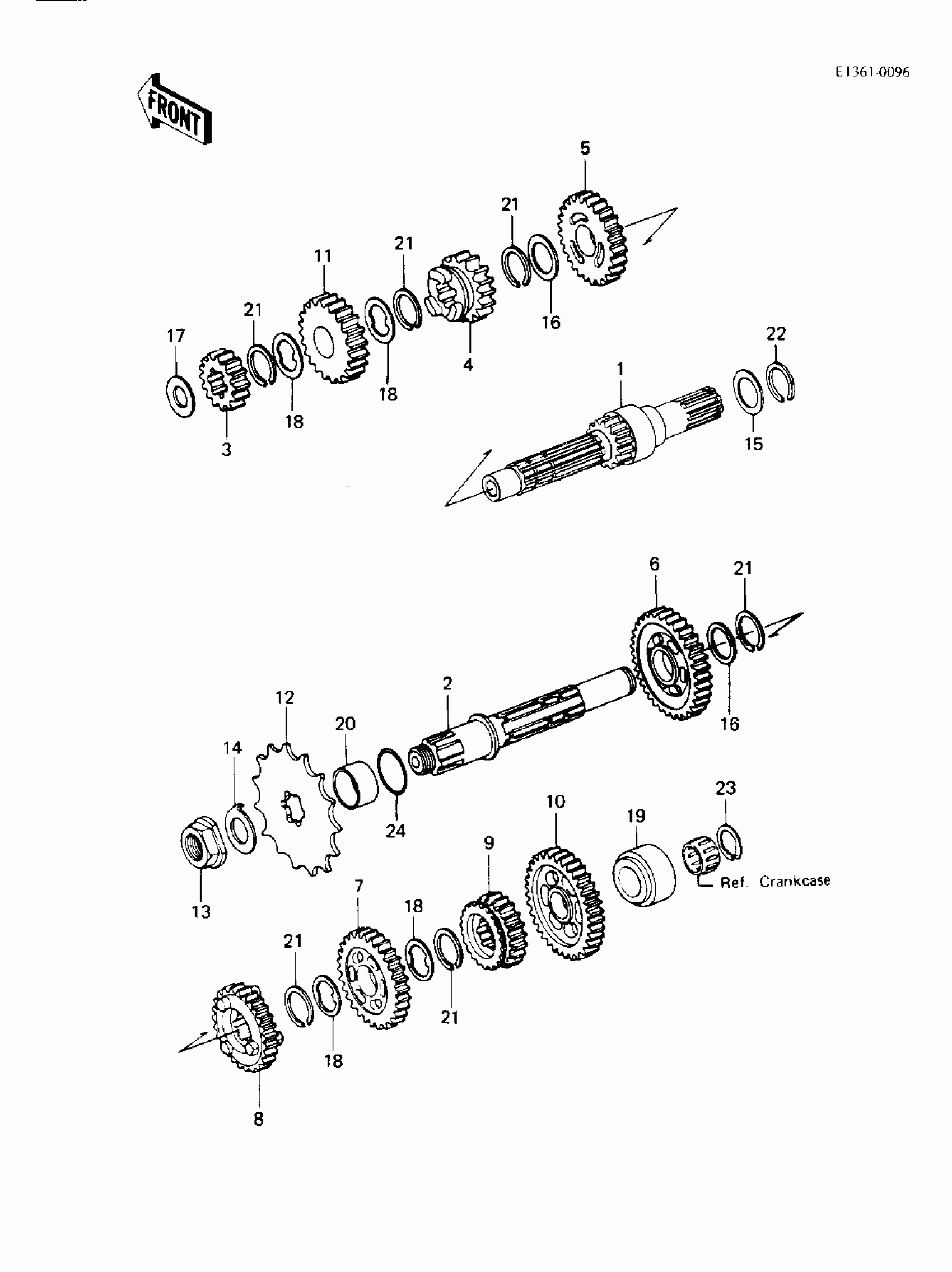

Kawasaki Police TRANSMISSION Diagram

SHAFT-TRANSMISSION IN

SHAFT,OUTPUT

GEAR,INPUT,2ND,13T

GEAR,INPUT,3RD,18T

GEAR,INPUT,TOP,24T

GEAR,OUTPUT,2ND,27T

GEAR,OUTPUT,3RD,26T

GEAR,OUTPUT,4TH,21T

GEAR,OUTPUT,TOP,20T

GEAR-TRANSMISSION SPU

4TH GEAR,DRIVE SHAFT

SPROCKET-OUTPUT,13T

SPROCKET-OUTPUT,12T

NUT,LOCK,16M/M

WASHER,LOCK

WASHER,20.5X30X1,STEEL

WASHER-HANDLEBAR FIT

WASHER,THRUST,15MM

WASHER,TOOTHED,22.5X27X0.5

SPACER,DRIVE SHAFT

COLLAR,ENGINE SPROCKT

RING-SNAP,20X25.5X1.2

RING-SNAP,18MM

RING-SNAP

RING-O,17.5X1.5
