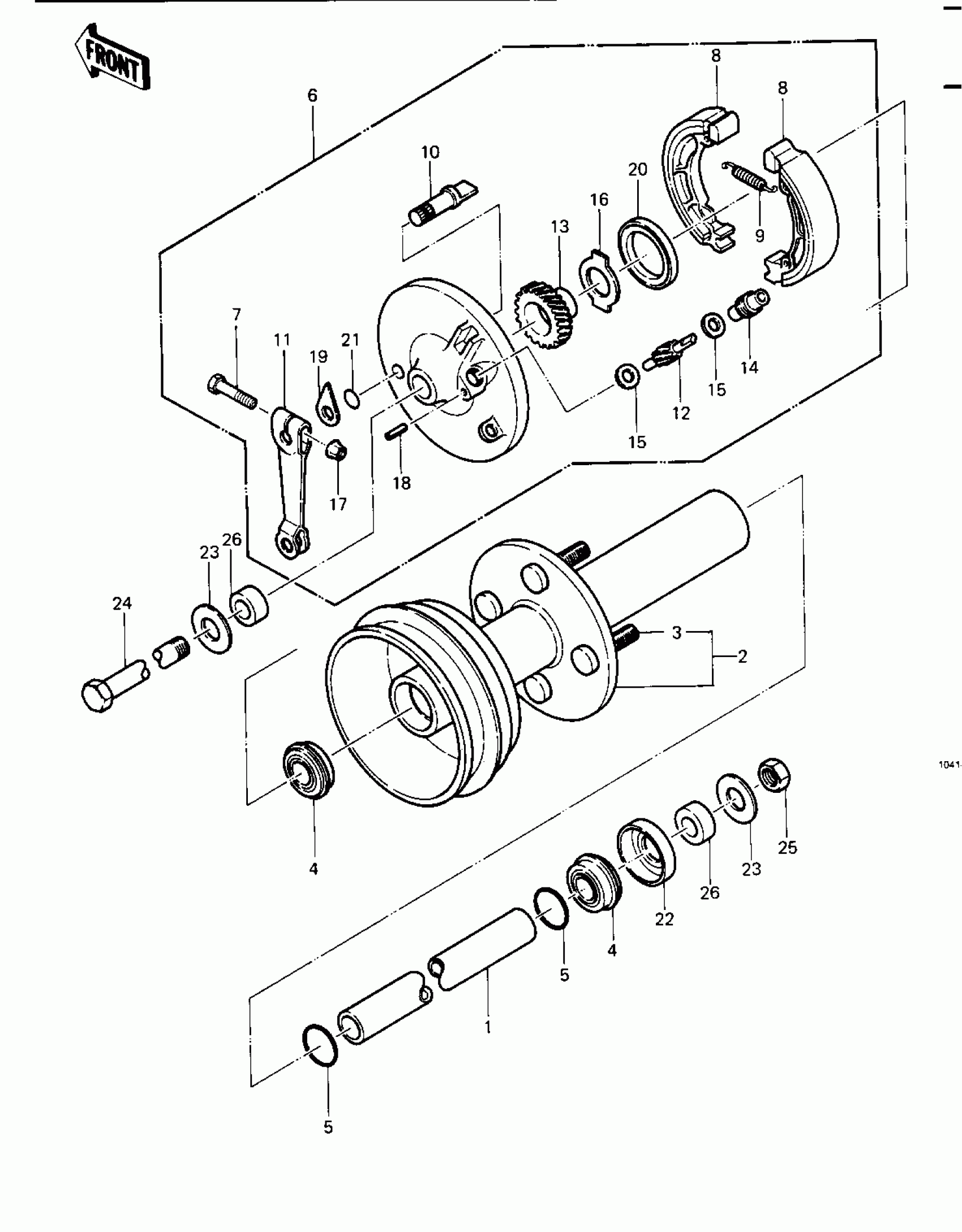

Kawasaki Police FRONT HUB/BRAKE Diagram

#

Description
Price

1

PIPE,SPACER

32032-4109

$9.69

2

DRUM ASSY FRONT

41038-4011

$66.00

3

BOLT,LUG

92001-4006

Unavailable

4

BEARING BALL HUB-ASSY

92045-4005

Unavailable

5

"0" RING

92055-4001

$1.99

6

PANEL-ASSY-BRAKE,FR

41035-1165

$228.54

7

BOLT-UPSET

112G0630

$1.36

8

SHOE-BRAKE

41048-1085

$22.53

9

SPRING,BRAKE SHOE

92081-1766

$8.03

10

CAM-BRAKE

41050-018

$23.50

11

LEVER-BRAKE CAM

41053-005

$15.47

12

PINION-SPEEDOMETER

41060-014

Unavailable

13

GEAR-METER SCREW

41060-4001

$34.19

14

BUSHING,SPEEDOMETER CABLE

41062-005

$19.48

15

WASHER,5.1X9X0.4

41063-001

$4.69

16

RECEIVER-SPEEDOMETER

41064-4001

Unavailable

17

NUT,6MM

41072-007

$3.92

18

PIN,SPRING

41082-001

$3.92

19

INDICATOR,BRAKE SHOE

41085-013

$14.51

20

SEAL-OIL,BRAKE PANEL

92050-002

$14.64

21

RING-O,BRAKE CAM

92055-004

$4.80

22

CAP-BEARING

14022-4003

Unavailable

23

WASHER PLAIN 16MM

410B1600

Unavailable

24

AXLE,FRONT

41068-4003

$75.32

25

NUT,LOCK 14M/M

92015-1122

$7.34

26

COLLAR

92027-4009

$3.63
