Description

Price

1

COVER,FR,J-WHITE

14025-4029-8U

Unavailable

2

BOLT-UPSET

112G0625

$3.62

3

WASHER SPRING 6MM

461F0600

$0.69

4

UNAVAILABLE IN PRICE BOOK

56040-4004

$2.27

5

BRACKET-SEAT

32046-4012

$15.47

6

COLLAR

92027-194

$5.52

7

DAMPER RUBBER

92075-112

$4.31

8

FENDER-FR,J-WHITE

35004-4003-8U

Unavailable

9

BOLT-UPSET 6X14

112B0614

Unavailable

10

BRACE-FNDR,LH FT

35009-4001

$3.69

11

BRACE-FNDR,RH FT

35009-4002

$3.69

12

BRACE-FNDR,REAR

35009-4003

$3.62

13

BOLT-UPSET 6X14

112B0614

Unavailable

14

WASHER SPRING 6MM

461F0600

$0.69

15

FENDER-RR,J-WHITE

35022-4007-8U

$126.18

16

COLLAR

92027-4020

$4.65

17

BRACKET,FLAP

11034-4062

Unavailable

18

BRACKET,FLAP

11034-4063

Unavailable

19

FLAP

35019-4004

Unavailable

20

SCREW,6X20

92009-1289

$4.31

21

WASHER,6.5X20X1.6

92022-125

$1.40

22

WASHER SPRING 6MM

461F0600

$0.69

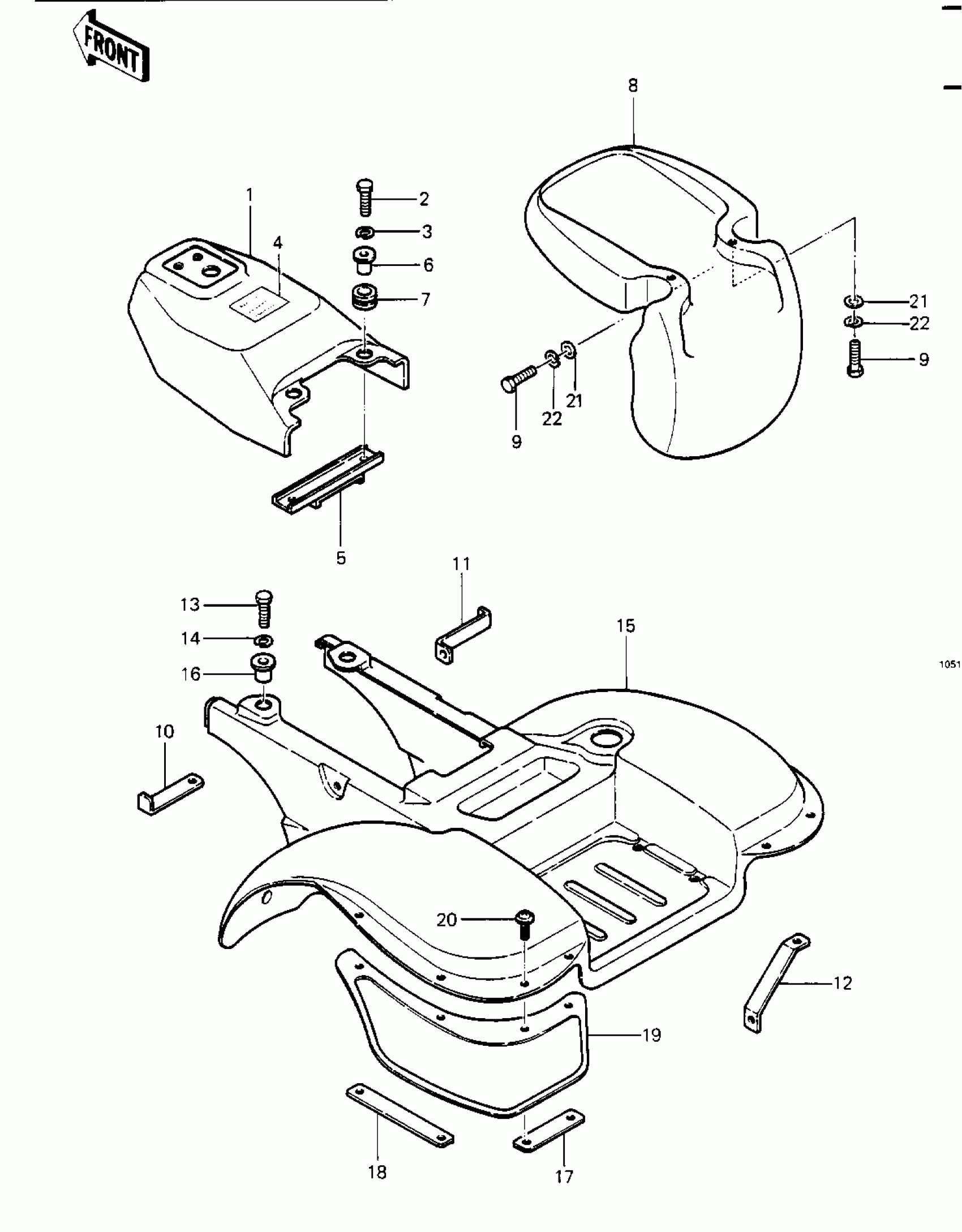

Kawasaki Police FENDERS/COVER Diagram

COVER,FR,J-WHITE

BOLT-UPSET

WASHER SPRING 6MM

UNAVAILABLE IN PRICE BOOK

BRACKET-SEAT

COLLAR

DAMPER RUBBER

FENDER-FR,J-WHITE

BOLT-UPSET 6X14

BRACE-FNDR,LH FT

BRACE-FNDR,RH FT

BRACE-FNDR,REAR

BOLT-UPSET 6X14

WASHER SPRING 6MM

FENDER-RR,J-WHITE

COLLAR

BRACKET,FLAP

BRACKET,FLAP

FLAP

SCREW,6X20

WASHER,6.5X20X1.6

WASHER SPRING 6MM
