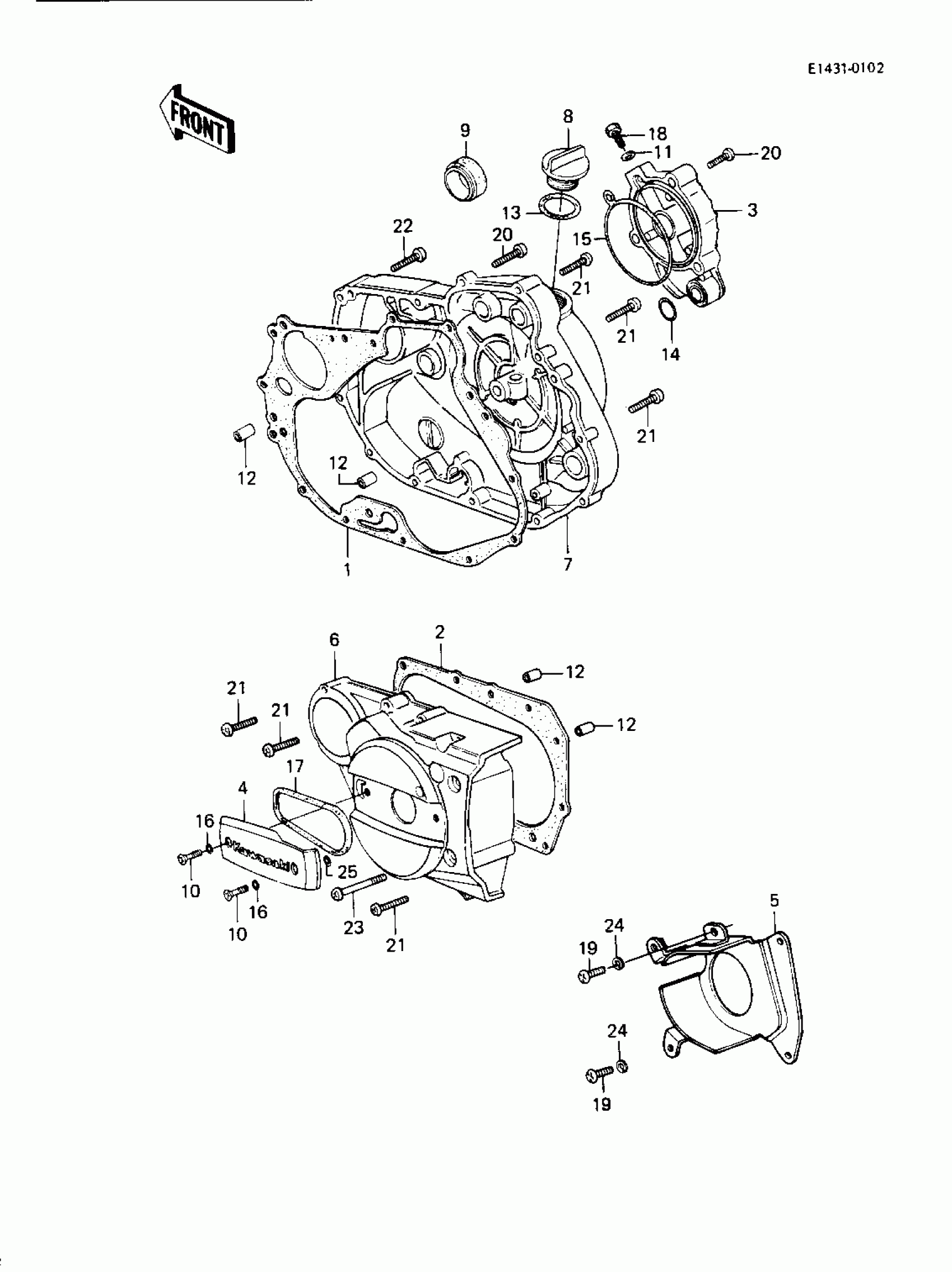

Kawasaki Police ENGINE COVERS Diagram
#
Description
Price
1
GASKET,CLUTCH COVER
11009-1306
Unavailable
2
GASKET,L.H ENGINE COV
14045-031
$30.41
3
COVER,OIL FILTER
14025-1559
Unavailable
4
COVER,GENERATOR
14025-1606
Unavailable
5
COVER-CHAIN,BLACK
14026-1052
Unavailable
6
COVER-GENERATOR
14031-1110
Unavailable
7
COVER-CLUTCH
14032-1098
Unavailable
8
CAP-OIL FILLER
16115-1009
$14.30
9
GAUGE,OIL LEVEL
52005-1009
$18.40
10
SCREW-CSK-RD-CROS,M6X20
92009-1715
$4.39
11
WASHER,6.2X11X1
92022-304
$3.65
12
PIN,DOWEL,6.3X8X14
92042-007
$5.70
13
RING-O,31.5X2.6
92055-049
$4.31
14
RING-O
92055-098
$9.57
15
"0" RING,FILTER COVER
92055-1048
$14.50
16
RING-O,5.28X1.78
92055-109
$4.39
17
RING-O
92055-1143
$6.40
18
BOLT HEX HEAD 6X8
110B0608
$0.18
19
SCREW PAN HEAD 6X10
220B0610
$3.14
20
SCREW PAN HEAD 6X25
220B0625
$2.60
21
SCREW PAN HEAD 6X30
220B0630
$3.41
22
SCREW PAN HEAD 6X40
220B0640
Unavailable
23
SCREW-PAN-CROS,6X60
220B0660
$1.79
24
WASHER SPRING 6MM
461F0600
$0.69
25
O RING,12MM
670B2012
$3.23
