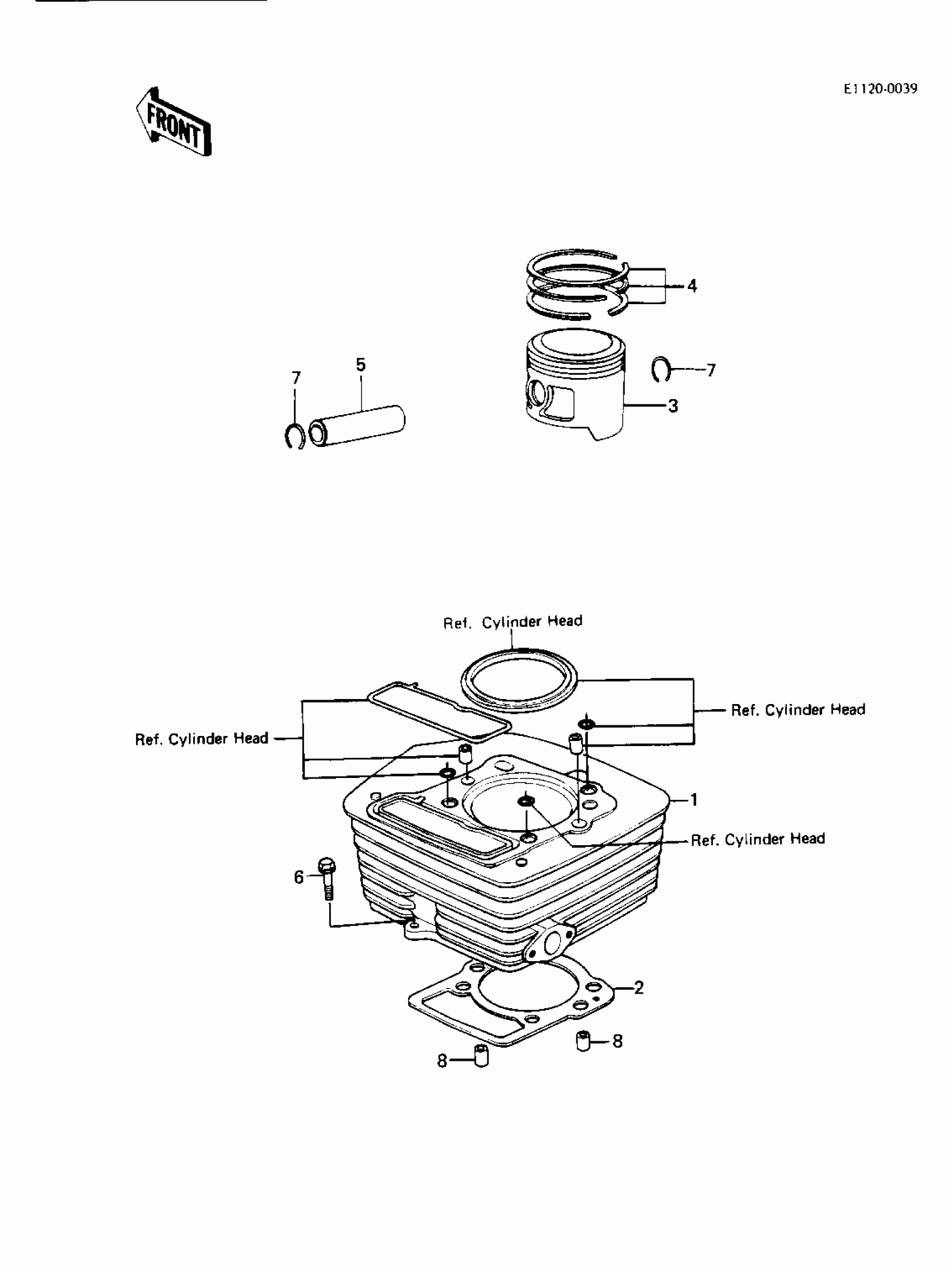

Kawasaki Police CYLINDER/PISTON Diagram

#

Description

Price

1

CYLINDER-ENGINE

11005-1331

Unavailable

2

GASKET,CYLINDER BASE

11009-043

Unavailable

3

PISTON-ENGINE,STD

13001-1101

Unavailable

3

PISTON-ENGINE L,O/S 0

13029-1048

Unavailable

3

PISTON-ENGINE LL,O/S

13027-1047

Unavailable

4

RING-SET-PISTON

13008-1011

Unavailable

4

RING-SET PISTON L,O/S

13025-1014

Unavailable

4

RING-SET PISTON LL,0/

13024-1014

Unavailable

5

PIN-PISTON

13002-1013

$6.66

6

BOLT,FLANGED,6X28

92003-202

Unavailable

7

CIRCLIP,PISTON PIN

92036-021

$0.49

8

PIN,DOWEL,10X14

92043-1037

$0.74
