Description

Price

1

CAMSHAFT-VALVE

12044-1053

$277.46

2

SPROCKET,CAM CHAIN,32

12046-1037

$58.95

3

TENSIONER,CAM CHAIN

12049-1008

Unavailable

4

SLIPER,CAM CHAIN

12053-023

$36.12

5

SLIPER,CAM CHAIN

12053-024

$49.12

6

ROD,PUSH,CAM CHAIN

13116-1019

$16.13

7

PLATE-POSITION

14014-1030

$3.89

8

RETAINER,TENSIONER

14020-1002

$17.55

9

BOLT,TENSIONER ADJUST

92001-1155

$5.33

10

WASHER OIL PUMP BANJO

92022-077

$3.99

11

WASHER,10X22X3

92022-1365

$5.52

12

COLLAR,TENSIONER

92027-1273

$32.58

13

COLLAR

92027-155

$8.19

14

CHAIN,CAM

21070-013

$150.60

15

SPRING,TENSIONER

92081-1105

$4.55

16

BOLT-UPSET

112G0630

$1.36

17

BOLT,FLANGED,6X25

130G0625

$1.17

18

BOLT-FLANGED,10X25

130G1025

$3.17

19

SCREW PAN HEAD 6X10

220B0610

$3.14

20

O RING,21MM

670B2021

$4.69

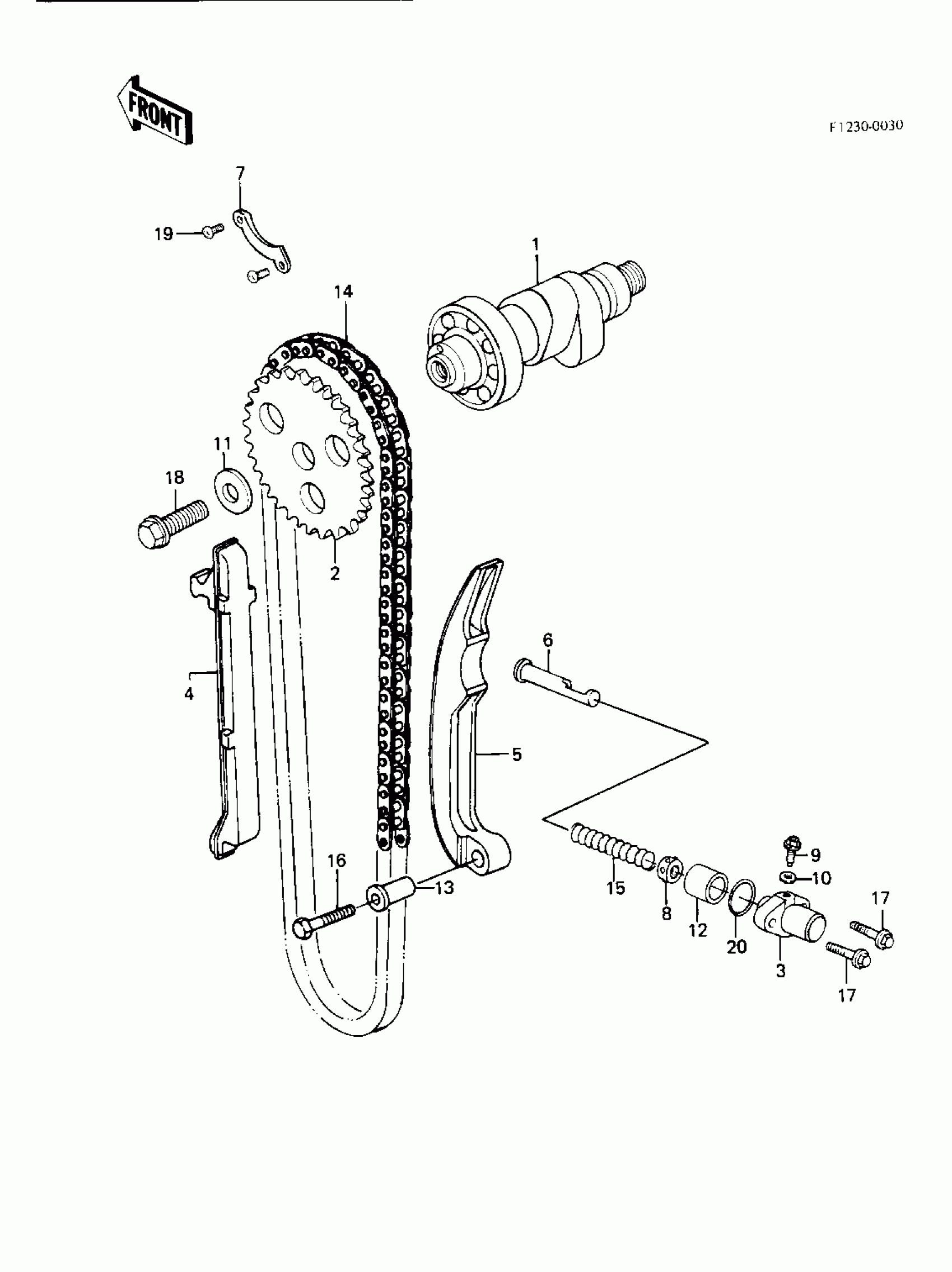

Kawasaki Police CAMSHAFT/CHAIN/TENSIONER Diagram

CAMSHAFT-VALVE

SPROCKET,CAM CHAIN,32

TENSIONER,CAM CHAIN

SLIPER,CAM CHAIN

SLIPER,CAM CHAIN

ROD,PUSH,CAM CHAIN

PLATE-POSITION

RETAINER,TENSIONER

BOLT,TENSIONER ADJUST

WASHER OIL PUMP BANJO

WASHER,10X22X3

COLLAR,TENSIONER

COLLAR

CHAIN,CAM

SPRING,TENSIONER

BOLT-UPSET

BOLT,FLANGED,6X25

BOLT-FLANGED,10X25

SCREW PAN HEAD 6X10

O RING,21MM
