Partiron

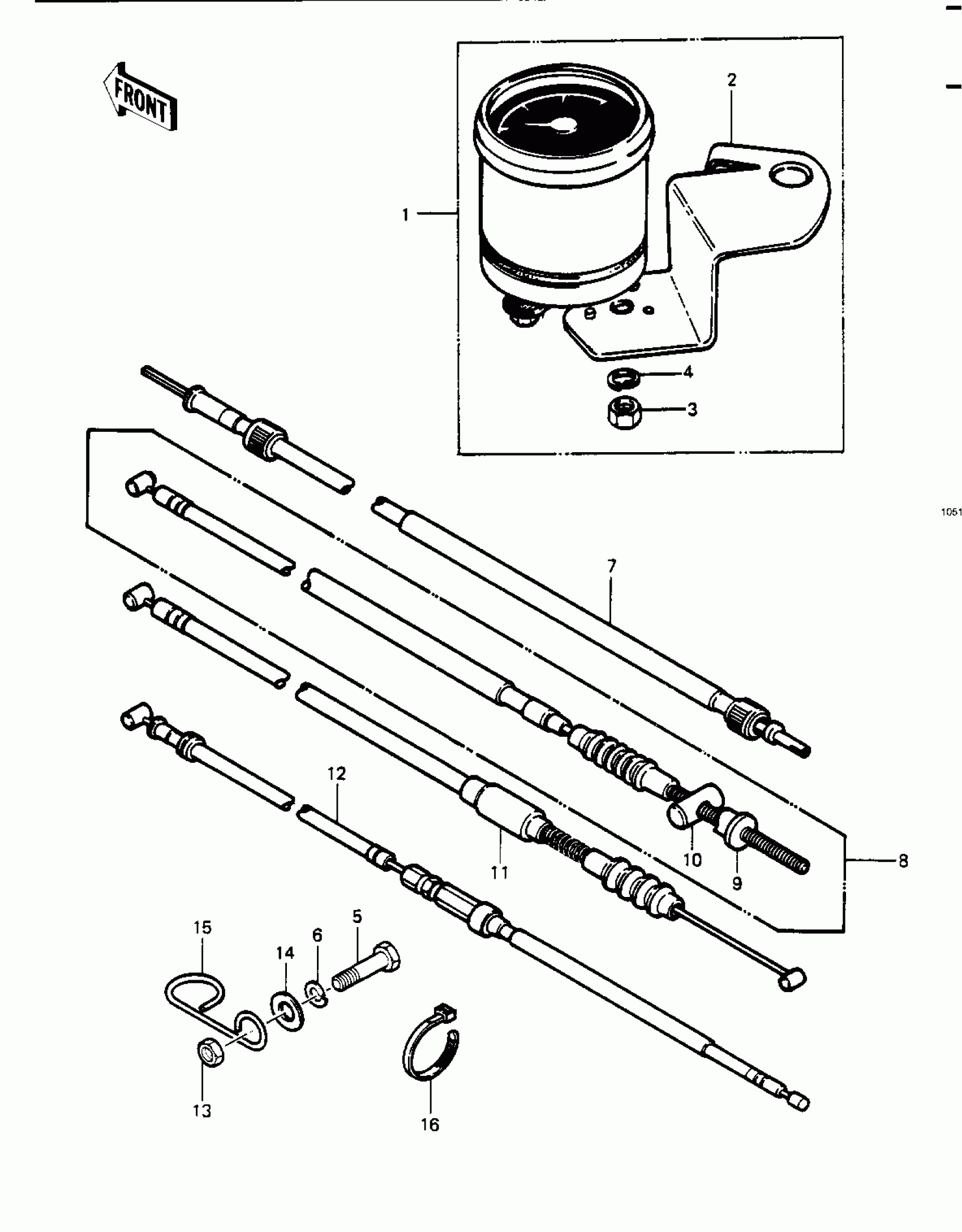

Kawasaki Police CABLES/METER Diagram

#

Description
Price

1

METER-ASSY

25001-4008

$310.84

2

BRACKET,METER

11034-4253

Unavailable

3

NUT 6MM

311B0600

$0.93

4

WASHER SPRING 6MM

461F0600

$0.69

5

BOLT-UPSET

112G0618

$1.01

6

WASHER SPRING 6MM

461F0600

$0.69

7

CABLE,SPEEDOMETER

54001-4002

Unavailable

8

CABLE-BRAKE

54005-4004

Unavailable

9

NUT,CABLE ADJUSTER LOCK

92015-052

$12.76

10

PIN,BRAKE CABLE

92043-082

$5.59

11

CABLE-CLUTCH

54011-4004

Unavailable

12

CABLE-THROTTLE

54012-4002

Unavailable

13

NUT,LOCK,6MM

92019-008

$4.26

14

WASHER,6.5X20X1.6

92022-125

$1.40

15

CLAMP,CLUTCH CABLE

92037-1202

Unavailable

16

BAND

92072-3505

Unavailable
