Description

Price

1

BOLT-UPSET

112G0625

$3.62

2

BOLT-UPSET 6X14

112B0614

Unavailable

3

WASHER SPRING 6MM

461F0600

$0.69

4

NUT 6MM

311B0600

$0.93

5

WASHER-PLAIN,10MM

411B1000

$0.93

6

LEVER-BRAKE,PEDAL

43001-4009

$66.18

7

SHAFT-BRAKE

43004-4001

$107.35

8

HOLDER-BRAKE

43034-4001

$21.03

9

NUT,CAP,10MM

92020-003

$6.52

10

SPRING,BRAKE PEDAL

92081-1337

Unavailable

11

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

12

ROD-BRAKE

43011-4005

Unavailable

13

SPRING,BRAKE ROD

43012-001

$4.65

14

PIN COTTER 2.0X15

550D2015

$1.04

15

NUT,WING,6MM

92015-4004

$7.29

16

WASHER, BRAKE ROD

92022-4003

Unavailable

17

PIN,6X17

92043-064

$4.69

18

PIN,BRAKE ROD

92043-065

$5.57

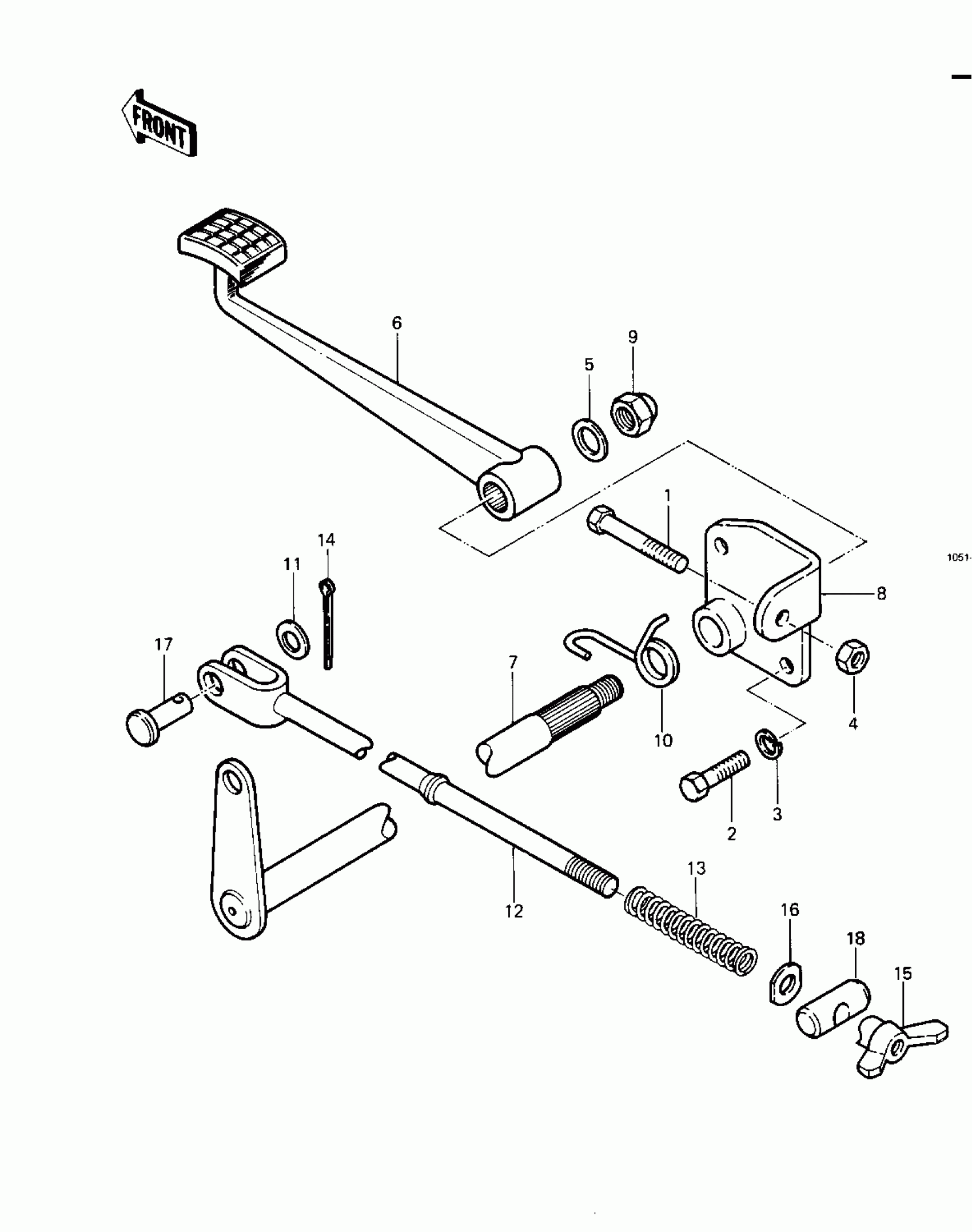

Kawasaki Police BRAKE PEDAL Diagram

BOLT-UPSET

BOLT-UPSET 6X14

WASHER SPRING 6MM

NUT 6MM

WASHER-PLAIN,10MM

LEVER-BRAKE,PEDAL

SHAFT-BRAKE

HOLDER-BRAKE

NUT,CAP,10MM

SPRING,BRAKE PEDAL

WASHER-PLAIN-SMALL,6MM

ROD-BRAKE

SPRING,BRAKE ROD

PIN COTTER 2.0X15

NUT,WING,6MM

WASHER, BRAKE ROD

PIN,6X17

PIN,BRAKE ROD
