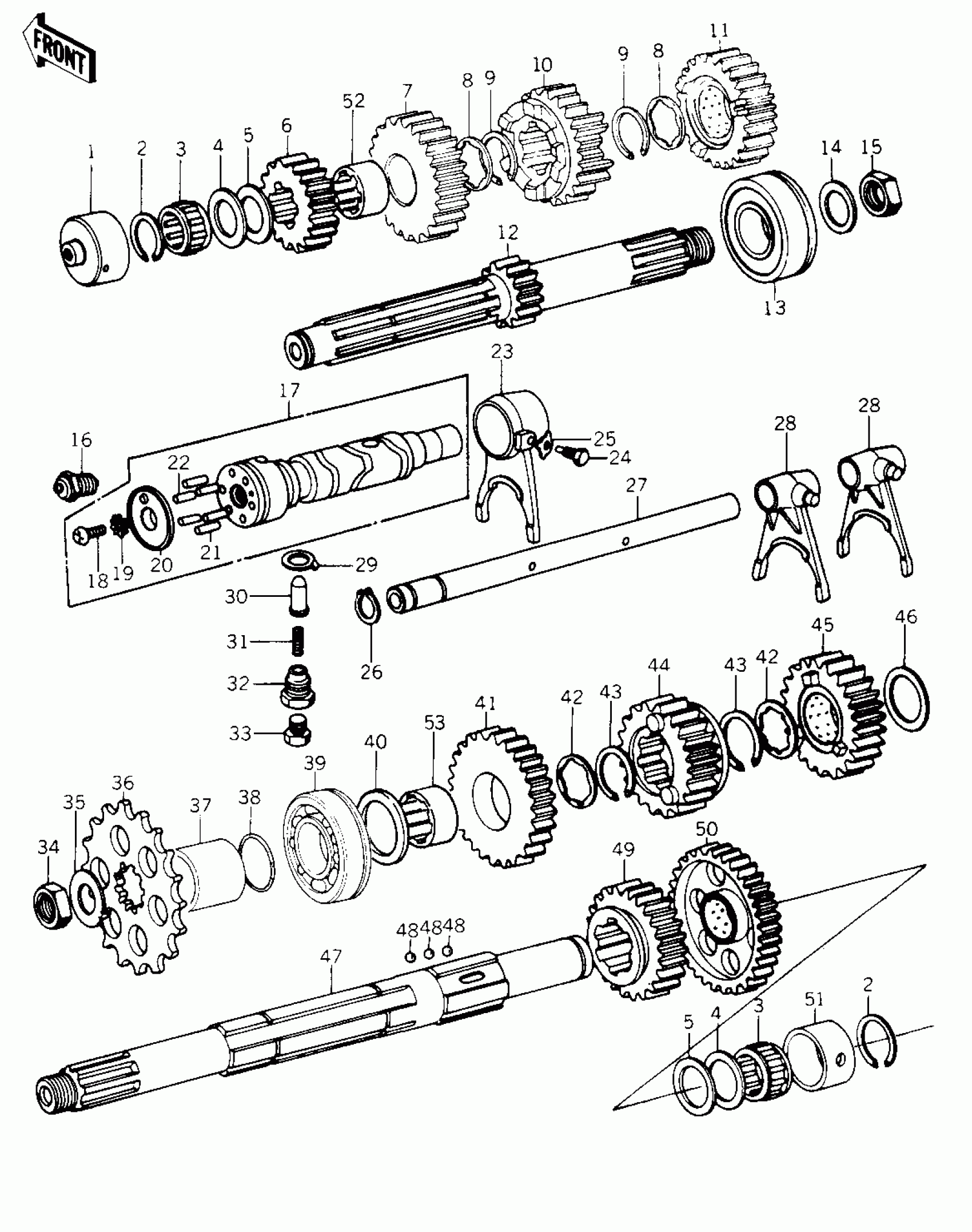

Kawasaki Police 1000 TRANSMISSION/CHANGE DRUM ('78 C1/C1A) Diagram

#

Description
Price

1

BUSH,DRIVE SHAFT

92028-122

Unavailable

2

RING-SNAP,20X25.5X1.2

92033-025

$4.96

3

BEARING-NEEDLE,FWF-223014

92046-031

$19.72

4

WASHER,22.3X35X1.6

92022-212

$9.91

4

WASHER,30.5X50X0.6

92022-231

$4.69

5

SPACER,22X35.5X1.0

92026-1020

$5.23

6

2ND GER,DRIVE SHAFT

13130-032

Unavailable

7

TOP GEAR,DRIVE SHAFT

13136-042

Unavailable

8

WASHER,TOOTHED,26X35.5X1.5

92024-042

$11.07

9

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

10

3RD GEAR,DRIVE SHAFT

13132-030

Unavailable

11

4TH GEAR,DRIVE SHAFT

13134-016

Unavailable

12

SHAFT,DRIVE 12T

13127-042

Unavailable

13

BEARING-BALL,5305NSH2

92045-1028

$132.72

14

WASHER

92125-002

Unavailable

15

NUT,20MM

92019-015

$13.08

16

SWITCH,NEUTRAL

13151-022

Unavailable

17

DRUM ASSY,GEAR CHANG

13239-1010

Unavailable

18

SCREW-PAN-CROS,6X14

220B0614

$1.48

19

WASHER LOCK 6MM

464G0600

$1.78

20

PLATE,GEAR CHNG DRUM

13142-013

Unavailable

21

PIN,DOWEL,4X15.8

92042-014

$0.43

22

PIN,DOWEL,4X17.8

92042-020

$5.05

23

FORK,SELECTOR,3RD

13140-046

Unavailable

24

PIN,DOWEL,6X16

92042-016

$5.00

25

WASHER LOCK 10MM

92031-001

$11.45

26

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

27

ROD,SHIFT

13209-011

Unavailable

28

FORK,SELECTOR,4TH&TOP

13140-045

$254.98

29

WASHER,LOCK

92024-047

Unavailable

30

PIN

92043-085

Unavailable

31

SPRING

92081-106

Unavailable

32

BOLT,CHG DRUM POSITN

92001-112

Unavailable

33

BOLT

92001-119

Unavailable

34

NUT,20MM

92016-028

$9.91

35

WASHER,LOCK,20MM

92024-044

$13.52

36

ENGINE SPROCKET 15T

13144-062

Unavailable

37

COLLAR,ENG SPROCKET

92027-288

$39.34

38

RING-O

92055-035

$5.00

39

BEARING,BL305 256217

92045-021

$184.13

40

WASHER,PLAIN,25MM

92022-210

Unavailable

41

2ND GEAR,OUTPUT SHAF

13131-038

Unavailable

42

WASHER,TOOTHED,30.3X40X1.5

92024-043

$13.07

43

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

44

TOP GEAR,OUTPUT SHAF

13129-1214

Unavailable

45

3RD GEAR,OUTPUT SHAF

13133-031

Unavailable

46

WASHER,PLAIN,30MM

92022-209

Unavailable

47

SHAFT,OUTPUT

13128-5006

Unavailable

48

BALL-STEEL,3/16

600A0600

$1.07

49

4TH GEAR,OUTPUT SHAF

13135-020

Unavailable

50

LOW GEAR OUTPUT SHAF

13129-016

Unavailable

51

BUSHING,OUTPUT SHAFT

92028-123

$54.72

52

BUSHING,TOP GEAR

92028-1124

$45.48

53

BUSHING,2ND GEAR

92028-1005

Unavailable
