Description

Price

1

SEAT ASSY

53002-4002

Unavailable

2

BRACKET,SEAT,FRONT

32046-1006

$28.92

3

BRACKET,SEAT,REAR

32046-1004

$10.82

4

BOLT-SMALL-UPSET,8X14

115B0814

Unavailable

5

WASHER SPRING 8MM

461F0800

$0.40

6

PIN

92043-4001

$5.80

6-1

PIN

92043-4001

$5.80

7

PIN,8X35.5

92043-115

$9.51

7-1

PIN,8X35.5

92043-115

$9.51

8

BOLT

92001-1578

$8.19

9

WASHER PLAIN 8MM

411B0800

$0.93

10

SHOCK ABSBR RR

45014-1007

$151.34

11

WASHER 8.5X23.5X4.5

92022-218

Unavailable

12

CASE-CHAIN

36014-061

$234.03

13

WASHER,6.5X20X1.6

92022-125

$1.40

14

BOLT HEX HEAD 6X18

110N0618

Unavailable

15

BOLT,HEAX HEAD,6X14

92001-115

$9.81

16

WASHER,8.5X20X1.6

92022-1561

$4.31

17

PIN-SNAP,8MM

554A0800

$1.26

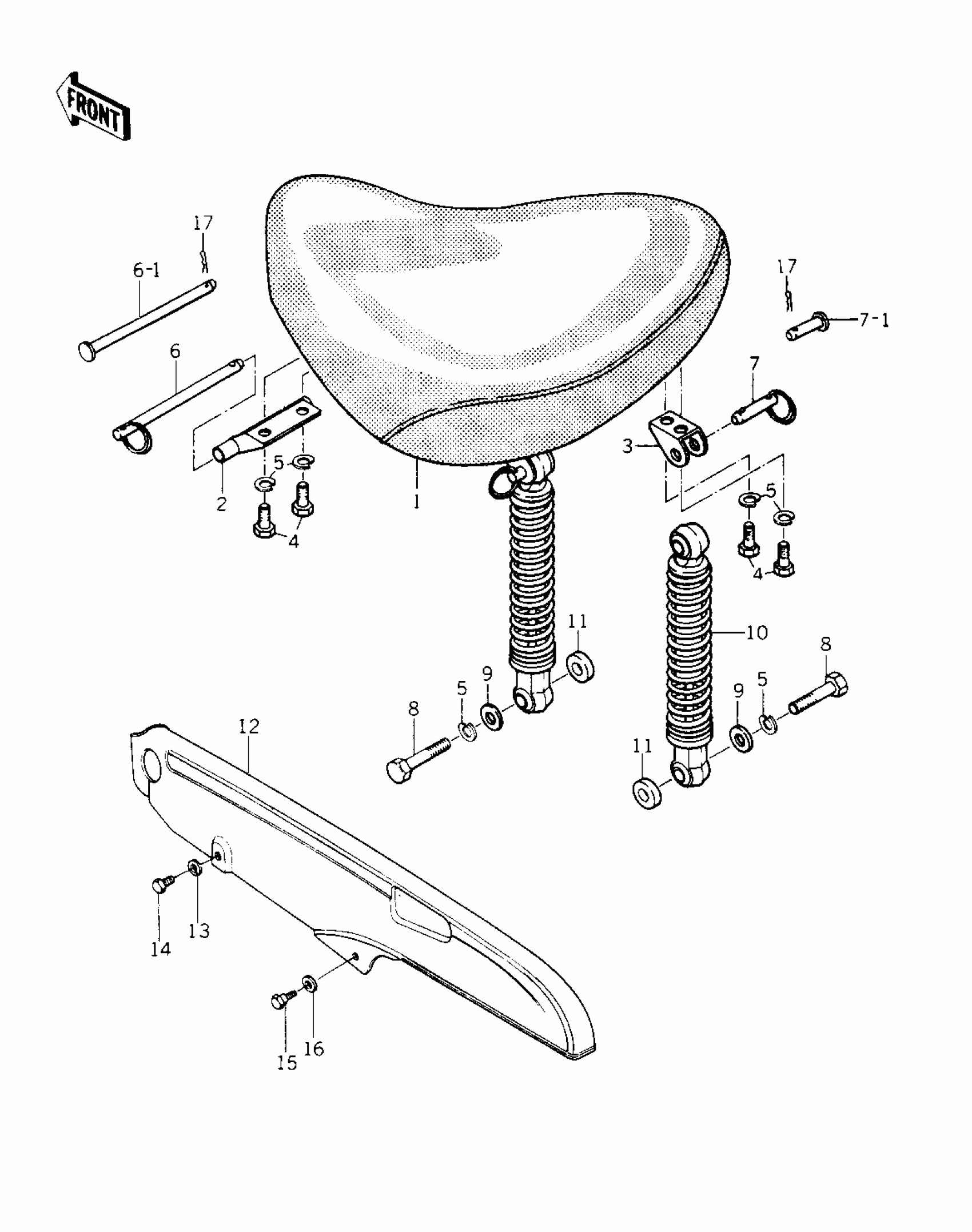

Kawasaki Police 1000 SEAT/CHAIN COVER ('78 C1/C1A) Diagram

SEAT ASSY

BRACKET,SEAT,FRONT

BRACKET,SEAT,REAR

BOLT-SMALL-UPSET,8X14

WASHER SPRING 8MM

PIN

PIN

PIN,8X35.5

PIN,8X35.5

BOLT

WASHER PLAIN 8MM

SHOCK ABSBR RR

WASHER 8.5X23.5X4.5

CASE-CHAIN

WASHER,6.5X20X1.6

BOLT HEX HEAD 6X18

BOLT,HEAX HEAD,6X14

WASHER,8.5X20X1.6

PIN-SNAP,8MM
