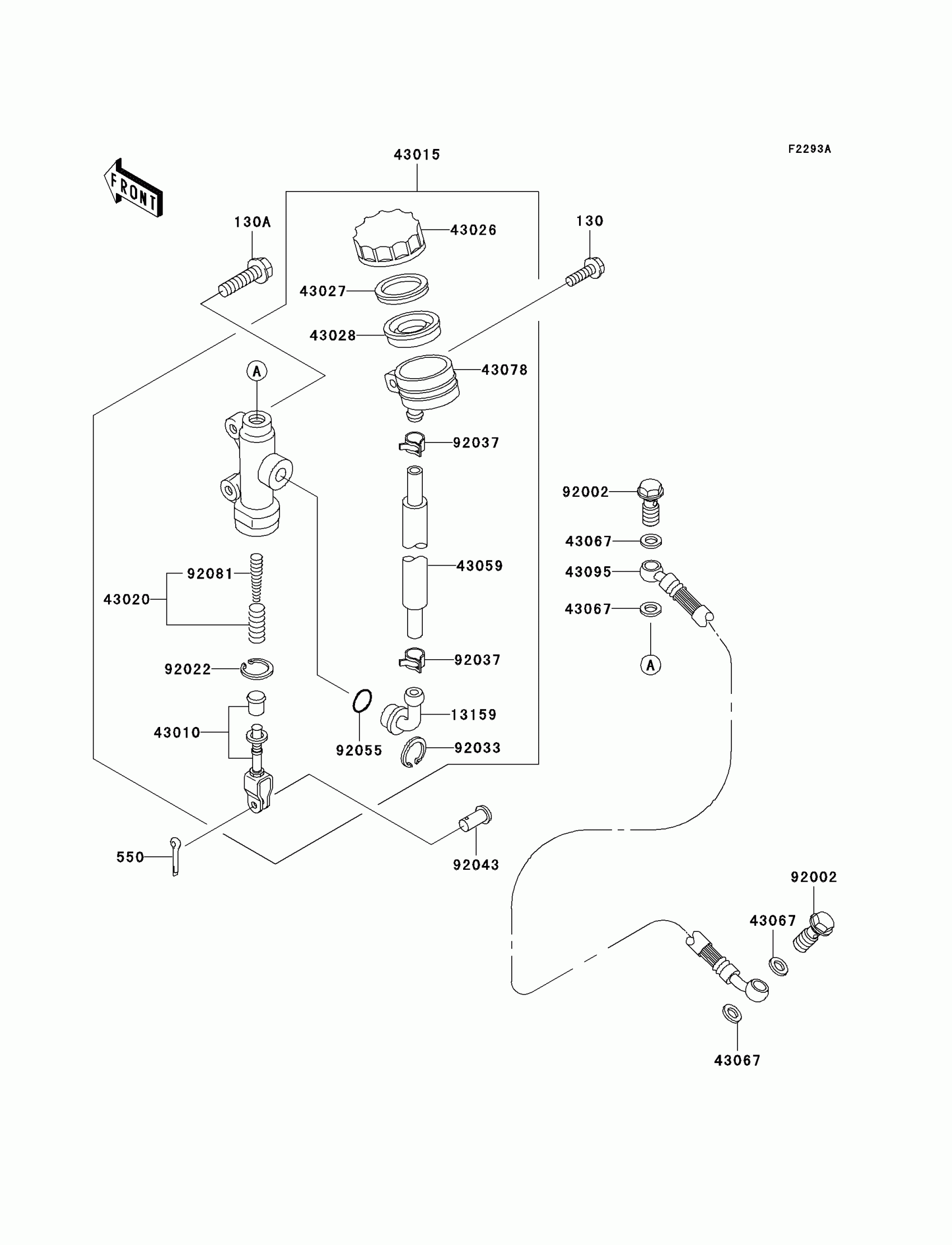

Kawasaki Police 1000 Rear Master Cylinder(P21/P22/P24) Diagram

Description

Price

130

BOLT,FLANGED,6X20

130B0620

Unavailable

130A

BOLT-FLANGED,8X30

130J0830

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

43010

ROD-ASSY-BRAKE

43010-1083

$77.88

43015

CYLINDER-ASSY-MASTER,RR

43015-1676

$486.16

43020

PISTON-COMP-BRAKE

43020-1057

$58.51

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1404

$41.34

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43078

RESERVOIR,RR MASTER CYLINDER

43078-1178

$24.59

43095

HOSE-BRAKE,RR

43095-1267

$119.44

92002

BOLT,OIL,L=23

92002-1888

$4.15

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92043

PIN,8X16

92043-1013

$7.54

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69
