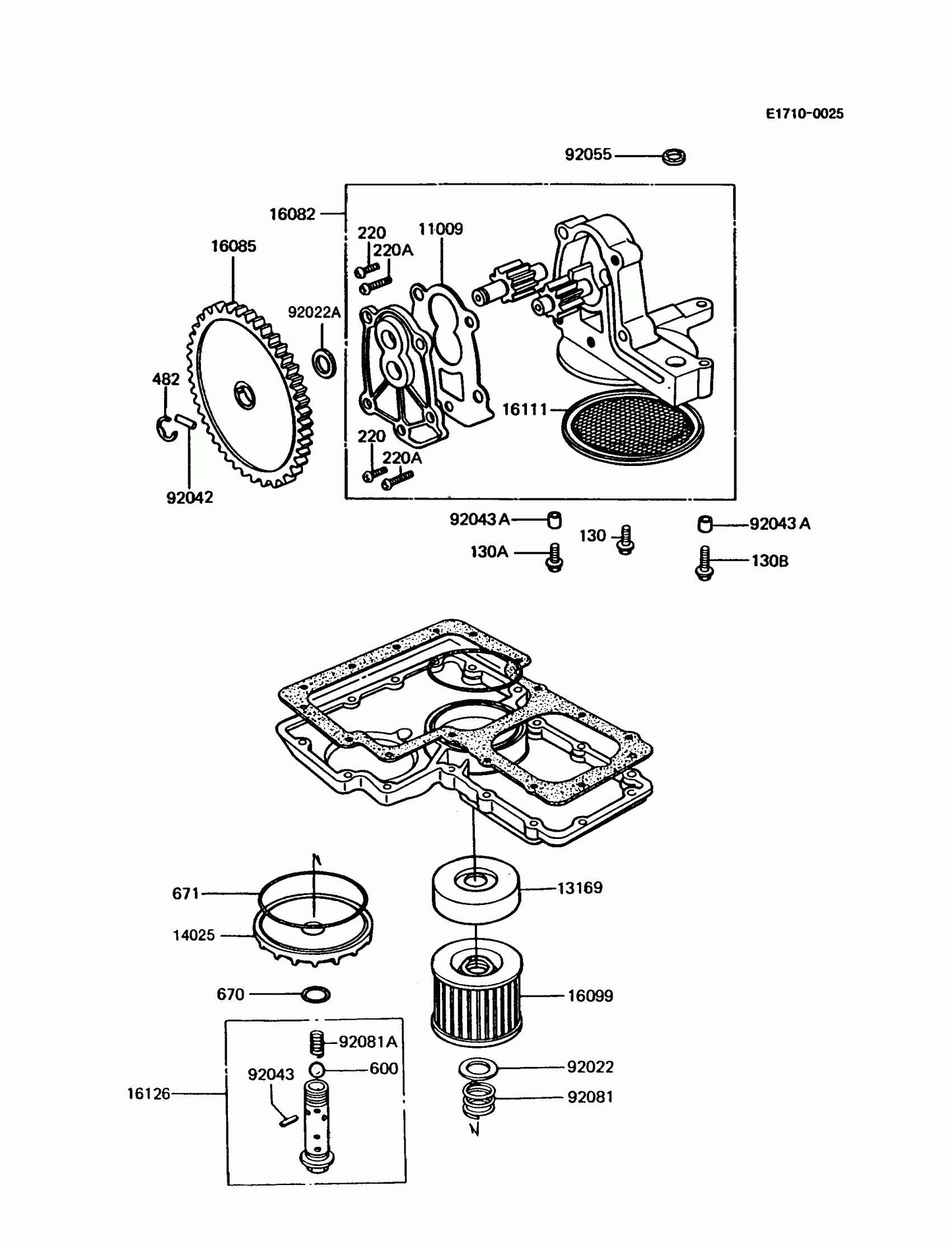

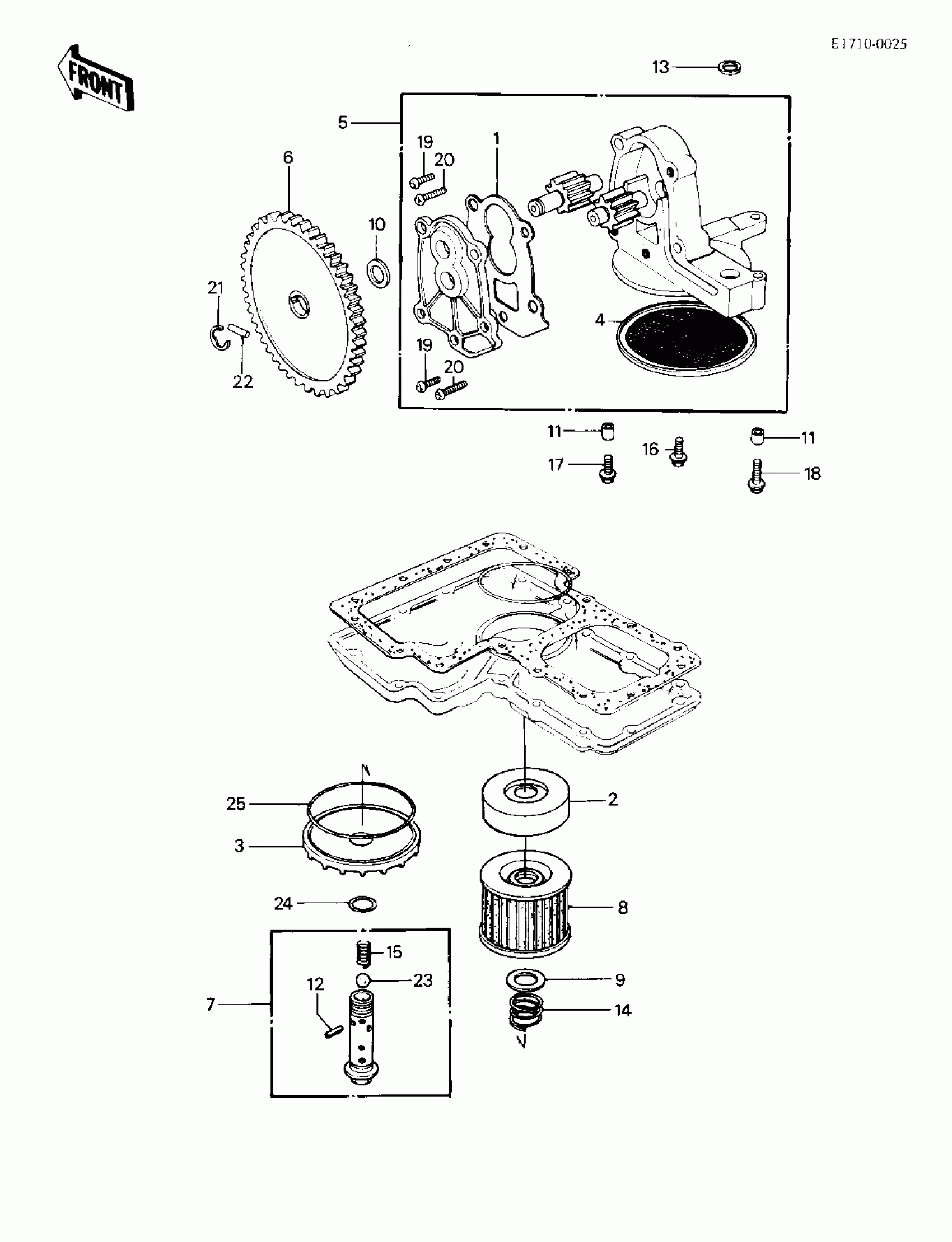

Kawasaki Police 1000 Oil Pump/Oil Filter Diagram

Description

Price

11009

GASKET,OIL PUMP

11009-1029

Unavailable

13169

PLATE,OIL FILTER

13169-1313

$10.65

14025

COVER,OIL FILTER,F.BLACK

14025-1422

$44.52

16082

PUMP-ASSY-OIL

16082-1032

$261.08

16085

GEAR,OIL PUMP,49T

16085-1038

$121.03

16099

ELEMENT-OIL FILTER

16099-003

$12.20

16111

FILTER,OIL PUMP

16111-004

$44.36

16126

VALVE,OIL FILTER

16126-1108

$41.98

92022

WASHER,20.5X30X1

92022-1012

$4.34

92022A

WASHER,10.2X18X1.0,SK5

92022-1415

$4.69

92042

PIN,DOWEL,4X14.8

92042-042

$4.39

92043

PIN,SPRING,2X20

92043-111

$6.27

92043A

PIN,DOWEL,8X10

92043-1302

$1.03

92055

RING-O,OD=18

92055-048

$4.80

92081

SPRING,OIL FILTER

92081-1018

$4.65

92081A

SPRING

92081-109

$11.29

130

BOLT,FLANGED,6X25

130G0625

$1.17

130A

BOLT-FLANGED,6X35

130G0635

$0.93

130B

BOLT-FLANGED,6X45

130G0645

$0.93

220

SCREW PAN HEAD 6X18

220B0618

$3.67

220A

SCREW PAN HEAD 6X28

220B0628

$3.41

482

CIRCLIP-TYPE-E,7MM

482J7000

$0.73

600

BALL-STEEL,3/8"

600A1200

$1.56

670

O RING,16MM

670B2016

$1.36

671

O RING,90MM

671B2590

$9.91
