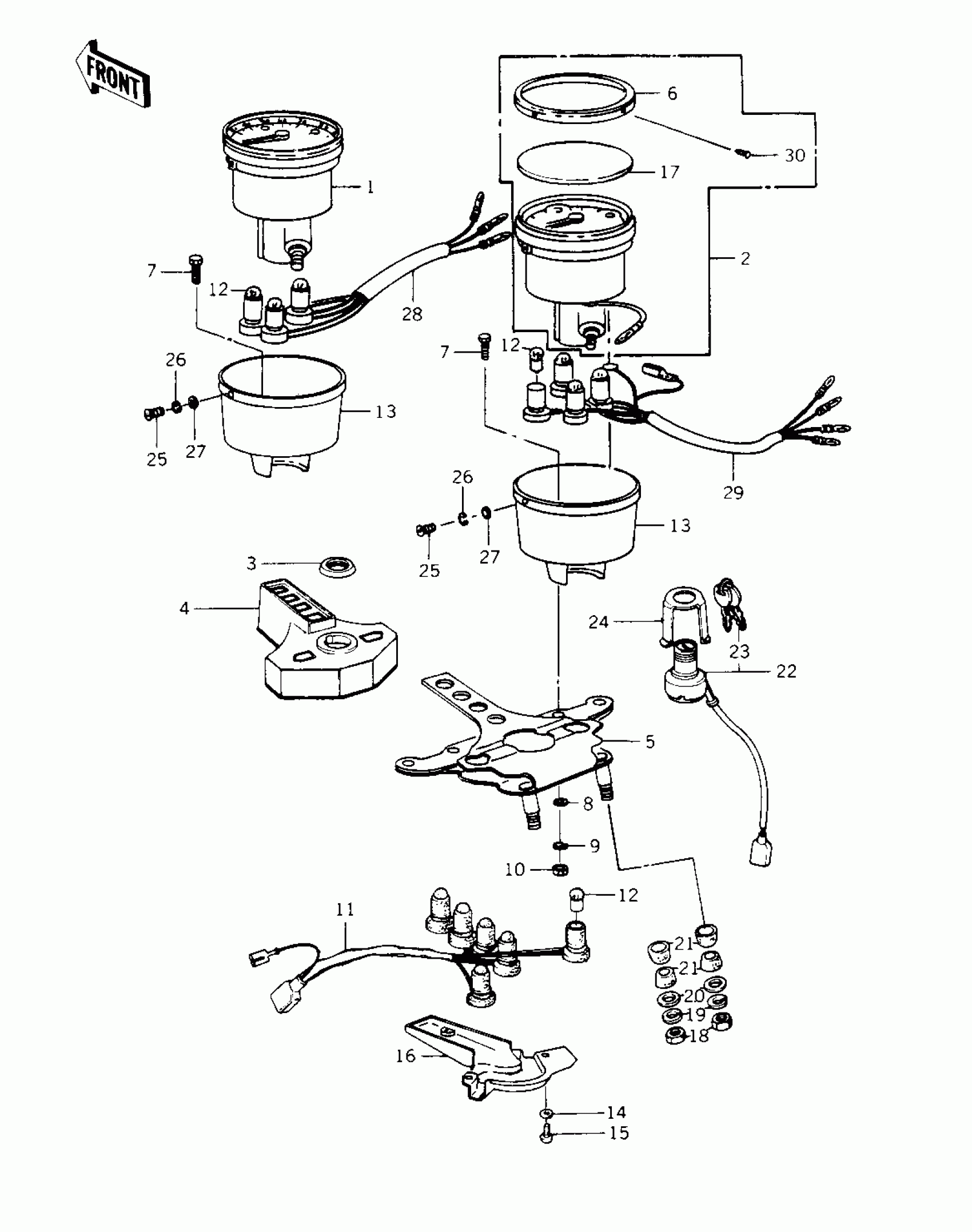

Kawasaki Police 1000 METERS/IGNITION SWITCH ('78 C1/C1A) Diagram

#

Description
Price

1

SPEEDOMETER ASSY,L.H

25005-1016

$668.32

2

SPEEDMETER ASSY,KPH (Canada)

25005-1030

$289.44

2

SPEEDOMETER ASSY,R.H

25005-1015

$739.48

2

SPEEDMETER ASSY,KPH (Canada)

25005-1029

$310.55

3

NUT,IGNITION SW LOCK

27007-004

Unavailable

4

COVER,METER,INDICATE

25023-015

$224.97

5

BRACKET,METER

25008-1002

$76.90

6

RETAINER,SPEEDOMETER

14020-4001

Unavailable

7

BOLT-UPSET,6X16

112G0616

Unavailable

8

WASHER PLAIN 6MM

411B0600

Unavailable

9

WASHER SPRING 6MM

461F0600

Unavailable

10

NUT 6MM

311B0600

Unavailable

11

SOCKET,INDICATOR LAM

23008-1010

Unavailable

12

BULB 12V 3W

92069-018

$3.87

13

COVER,SPEEDOMETER

14025-1011

Unavailable

14

WASHER SPRING 3MM

461F0300

Unavailable

15

SCREW-PAN-CROS,3X8

220B0308

$0.63

16

COVER,METER BRACKET

25024-006

Unavailable

17

LENS,SPEEDOMETER

23026-4001

Unavailable

18

NUT,8MM

311B0800

Unavailable

19

WASHER SPRING 8MM

461F0800

Unavailable

20

WASHER PLAIN 8MM

411B0800

Unavailable

21

DAMPER RUBBER

92075-080

$8.22

22

SWITCH ASSY,IGITION

27005-5003

$95.76

23

KEY SET,#751

27008-069-51

$49.93

23

KEY SET,#752

27008-069-52

$43.72

23

KEY SET,#753

27008-069-53

Unavailable

23

KEY SET,#754

27008-069-54

$49.93

23

KEY SET,#755

27008-069-55

Unavailable

23

KEY SET,#756

27008-069-56

$43.64

23

KEY SET,#757

27008-069-57

Unavailable

23

KEY SET,#758

27008-069-58

$23.68

23

KEY SET,#759

27008-069-59

$49.90

23

KEY SET,#760

27008-069-60

$23.68

23

KEY SET #761

27008-069-61

Unavailable

23

KEY SET #762

27008-069-62

$37.36

23

KEY SET #763

27008-069-63

$23.68

23

KEY SET #764

27008-069-64

$20.05

23

KEY SET #765

27008-069-65

$37.69

23

KEY SET #766

27008-069-66

Unavailable

23

KEY SET #767

27008-069-67

$37.63

23

KEY SET #768

27008-069-68

$26.31

23

KEY SET #769

27008-069-69

$27.47

23

KEY SET #770

27008-069-70

Unavailable

23

KEY SET #771

27008-069-71

Unavailable

23

KEY SET #772

27008-069-72

Unavailable

23

KEY SET #773

27008-069-73

$43.68

23

KEY SET #774

27008-069-74

Unavailable

23

KEY SET #775

27008-069-75

$37.29

23

KEY SET #776

27008-069-76

$37.29

23

KEY SET #777

27008-069-77

$37.29

23

KEY SET #778

27008-069-78

$37.36

23

KEY SET #779

27008-069-79

$37.69

23

KEY SET #780

27008-069-80

$37.29

23

KEY SET #781

27008-069-81

$20.05

23

KEY SET #782

27008-069-82

$37.63

23

KEY SET #783

27008-069-83

$37.29

23

KEY SET #784

27008-069-84

$27.24

23

KEY SET #785

27008-069-85

$37.36

23

KEY SET,#786

27008-069-86

$43.61

23

KEY SET,#787

27008-069-87

$43.72

23

KEY SET,#788

27008-069-88

Unavailable

23

KEY SET,#789

27008-069-89

$43.61

23

KEY SET,#790

27008-069-90

$43.72

23

KEY SET,#791

27008-069-91

$43.61

23

KEY SET,#792

27008-069-92

$28.63

23

KEY SET,#793

27008-069-93

$43.61

23

KEY SET,#794

27008-069-94

$49.93

23

KEY SET,#795

27008-069-95

Unavailable

23

KEY,BLANK

27008-1013

Unavailable

24

HOLDER IGNITION SW

27019-003

Unavailable

25

SCREW PAN HEAD 4X8

220B0408

Unavailable

26

WASHER SPRING 4MM

461F0400

Unavailable

27

WASHER PLAIN 4MM

410B0400

Unavailable

28

SOCKET,SPEEDOMETER,L

23008-1011

$35.69

29

SOCKET,SPEEDOMETER,R

23008-1009

$32.78

30

SCREW,PAN HEAD,2.3X3

92009-4001

$0.33
