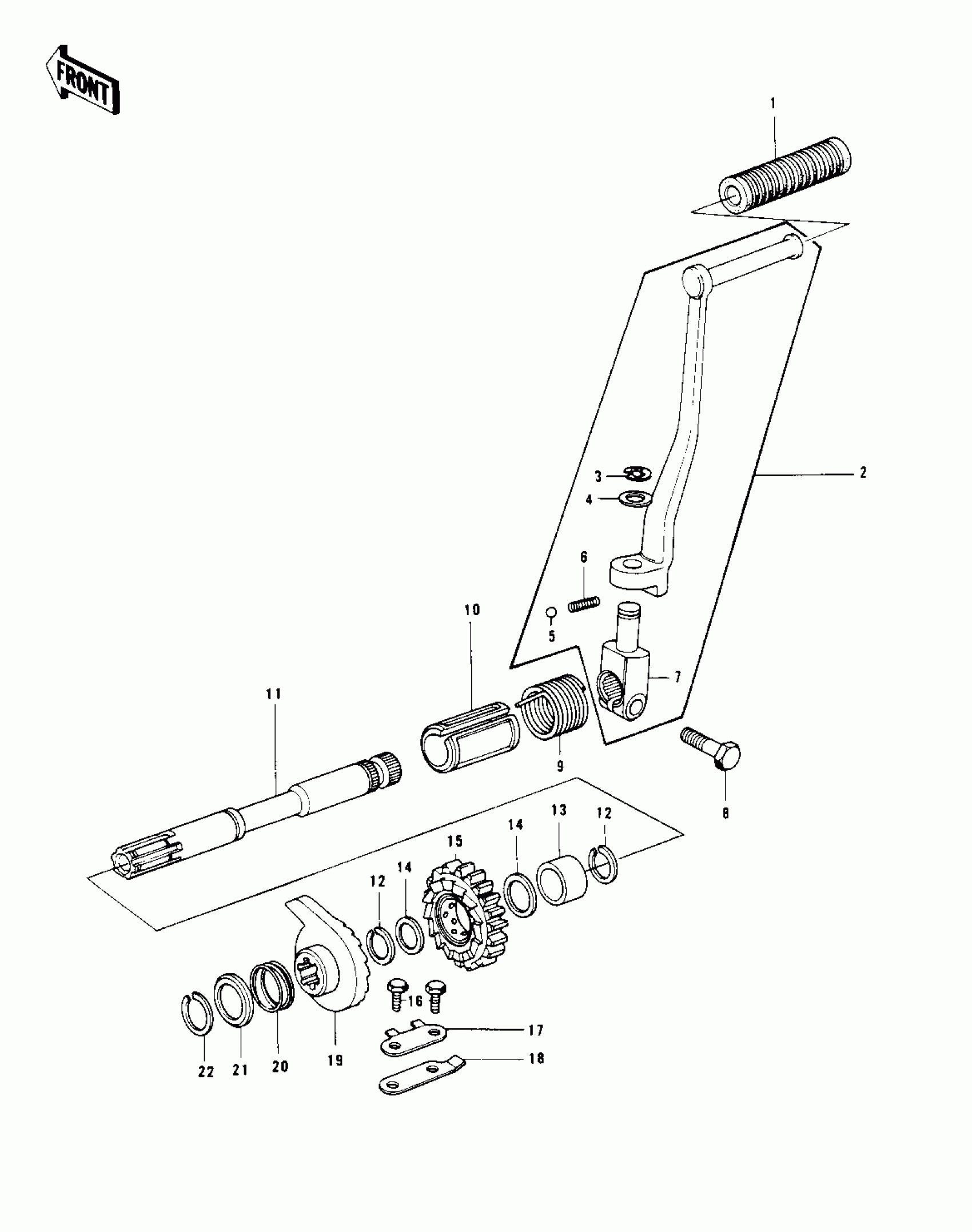

Kawasaki Police 1000 KICKSTARTER MECHANISM ('78 C1/C1A) Diagram

#

Description
Price

1

DAMPER,KICK PEDAL

13063-004

$10.94

2

PEDAL,KICKSTARTER

13058-044

Unavailable

3

CIRCLIP-TYPE-E,10MM

482J0100

$0.73

4

WASHER BRAKE PEDAL

92022-085

$3.92

5

BALL-STEEL,1/4

600A0800

$0.62

6

SPRING,KICK PEDAL

92081-020

$4.26

7

BOSS-KICK PEDAL

13061-014

Unavailable

8

BOLT-HEX HEAD,10X25

114B1025

$3.85

9

SPRING,KICKSTARTER

92082-004

Unavailable

10

GUID,KICK SHAFT

13070-005

Unavailable

11

SHAFT,KICKSTARTER

13066-029

Unavailable

11

SHAFT,KICKSTARTER

13066-1004

Unavailable

12

RING-SNAP,20X25.5X1.2

92033-025

$4.96

13

COLLAR,KICKSHAFT

92028-126

$30.02

14

WASHER,PLAIN,22MM

92022-207

Unavailable

15

GEAR,KICKSTARTER 19T

13068-028

Unavailable

15

GEAR,KICKSTARTER

59051-1006

$75.07

16

BOLT-UPSET 6X14

112B0614

Unavailable

17

WASHER-LOCK

92024-036

Unavailable

18

STOPPER,KICKSTARTER

13072-012

Unavailable

19

RATCHET,KICK SHAFT

13078-011

Unavailable

20

SPRING RATCHET

92081-104

$10.23

21

CAP,KICKSTARTER

92102-008

Unavailable

22

CIRCLIP-TYPE-C,19MM

480J1900

$1.28
