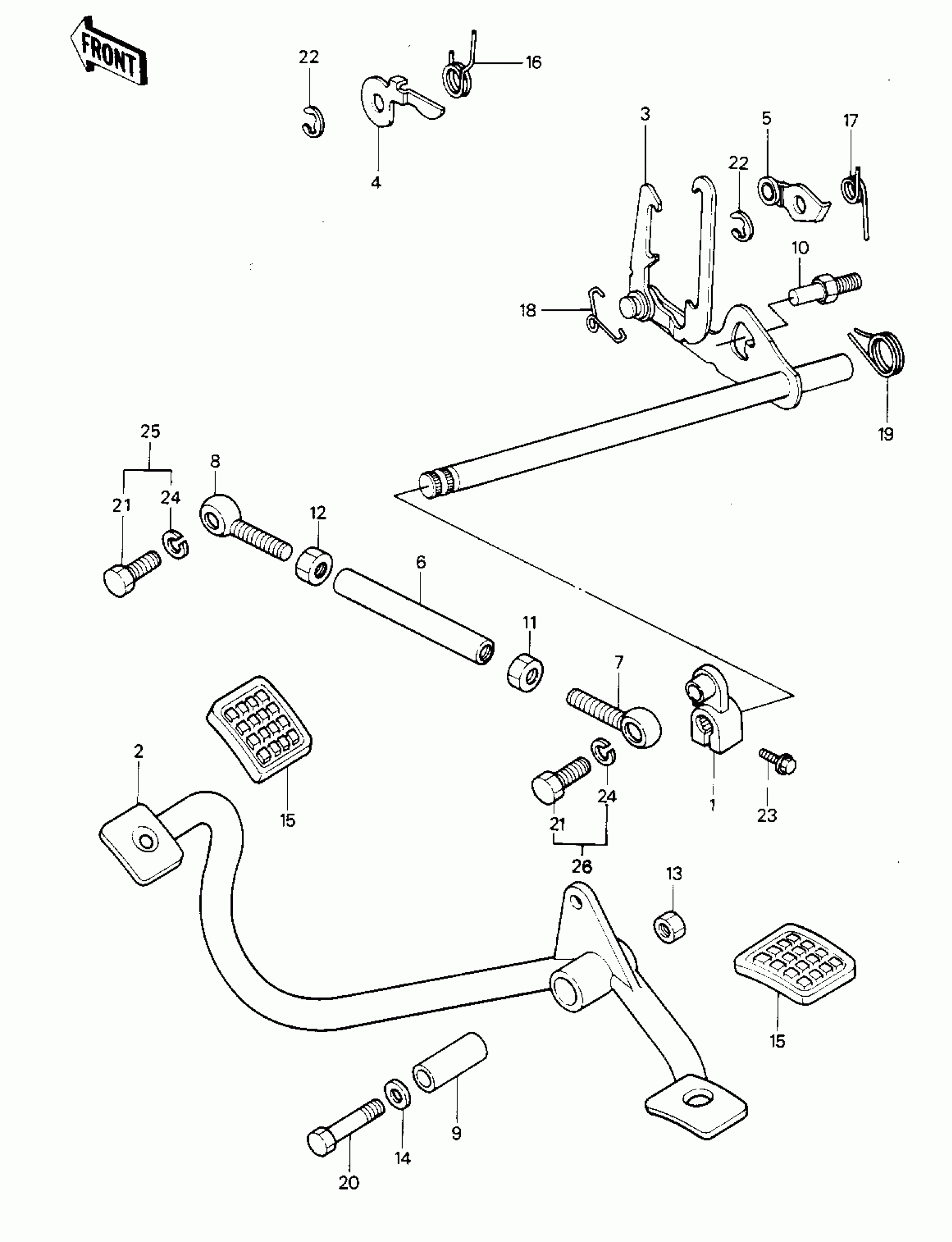

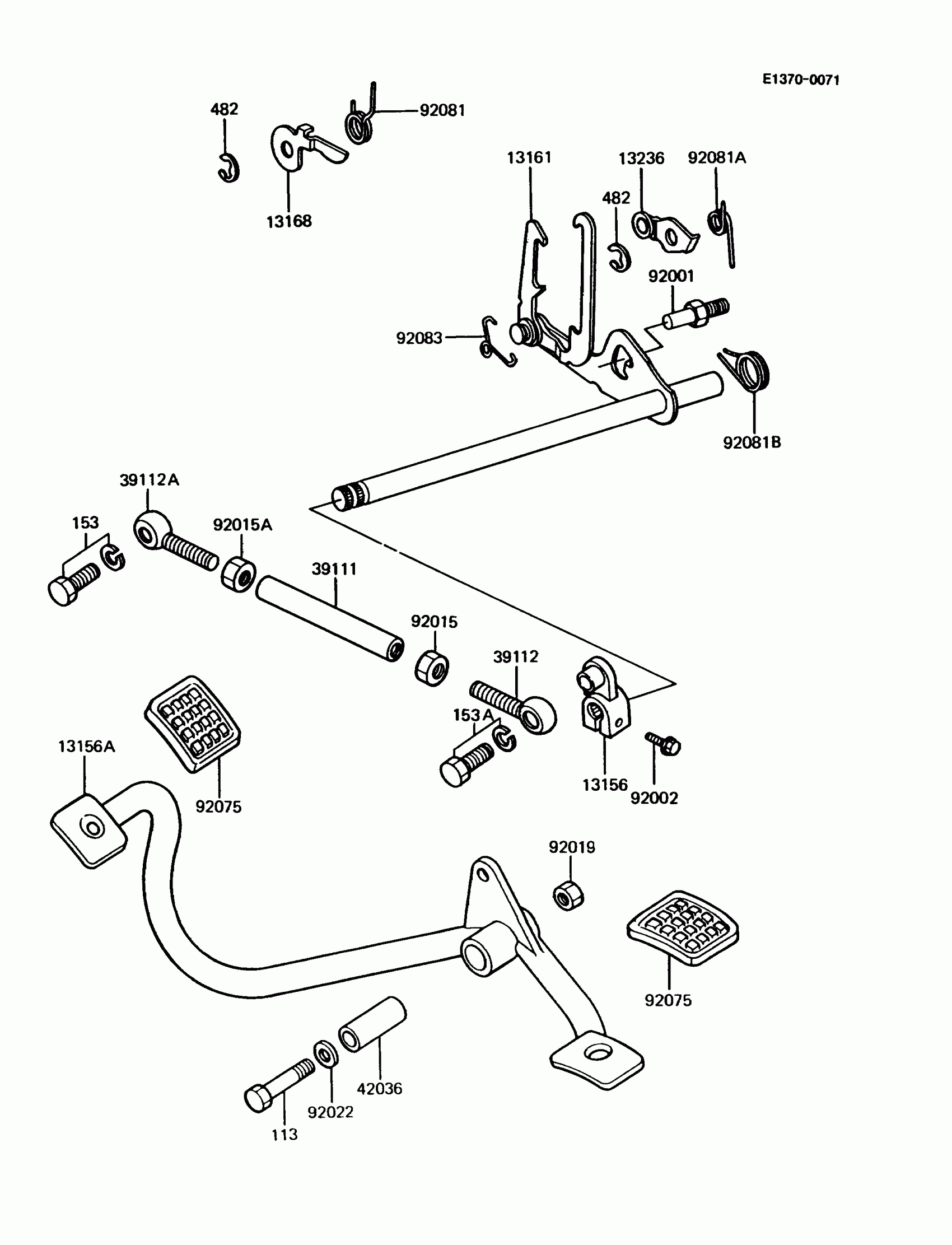

Kawasaki Police 1000 GEAR CHANGE MECHANISM Diagram

#

Description

Price

1

LEVER-CHANGE,PEDAL

13156-4001

Unavailable

2

LEVER-CHANGE,PEDAL

13156-4002

Unavailable

3

LEVER-COMP-CHANGE SHAFT

13161-1023

Unavailable

4

LEVER,GEAR POSITIONING

13168-1074

Unavailable

5

LEVER-COMP,NEUTRAL POSITIONING

13236-1029

Unavailable

6

ROD-TIE

39111-4001

Unavailable

7

RODEND-TIE,RH THREAD

39112-1001

Unavailable

8

RODEND-TIE,LH THREAD

39112-1002

Unavailable

9

SLEEVE,CHANGE LEVER

42036-4006

Unavailable

10

BOLT,RETURN SPRING

92001-1401

Unavailable

11

NUT,RH THREAD

92015-1005

Unavailable

12

NUT,LH THREAD

92015-1006

Unavailable

13

NUT,LOCK,10MM

92019-021

Unavailable

14

WASHER,10.5X26X2.3

92022-044

Unavailable

15

DAMPER,CHANGE PEDAL

92075-4031

Unavailable

16

SPRING,POSITIONING LEVER

92081-1284

Unavailable

17

SPRING,NEUTRAL POSITIONING

92081-1285

Unavailable

18

SPRING

92083-018

Unavailable

19

SPRING,CHG PEDL RTRN

92083-028

Unavailable

19

SPRING,CHANGE PEDAL RETURN

92081-1589

Unavailable

20

BOLT-SMALL-FINE,10X85

113G1085

Unavailable

20

BOLT-SMALL-FINE

113Y1085

Unavailable

21

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

22

CIRCLIP-TYPE-E,6MM

482J6000

Unavailable

23

BOLT-FLANGED,6X20

130P0620

Unavailable

23

BOLT,6X20

92002-1237

Unavailable

24

WASHER SPRING 8MM

461F0800

Unavailable

25

BOLT-WS-SMALL

153Y0825

Unavailable

26

BOLT-WS-SMALL

153Y0835

Unavailable
