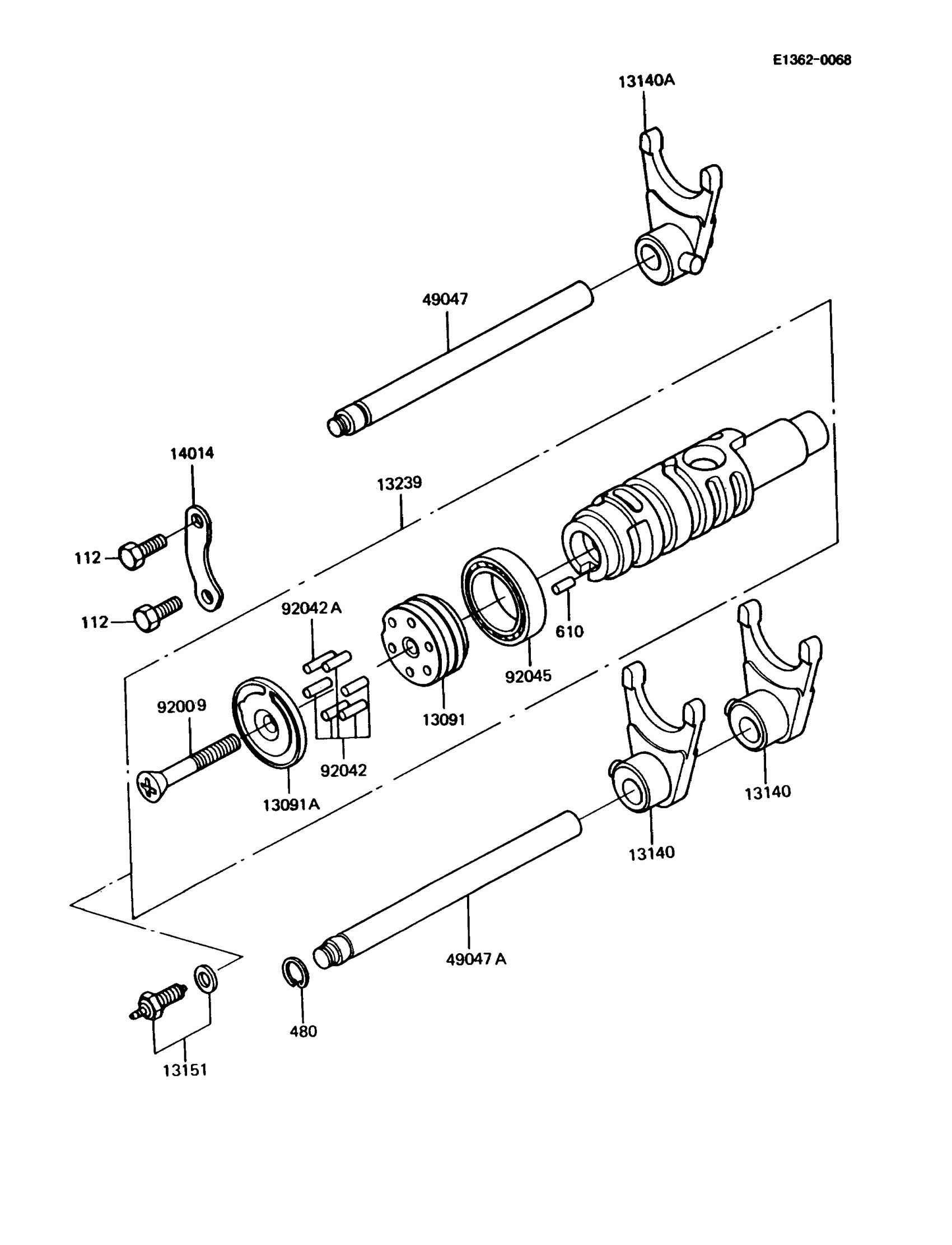

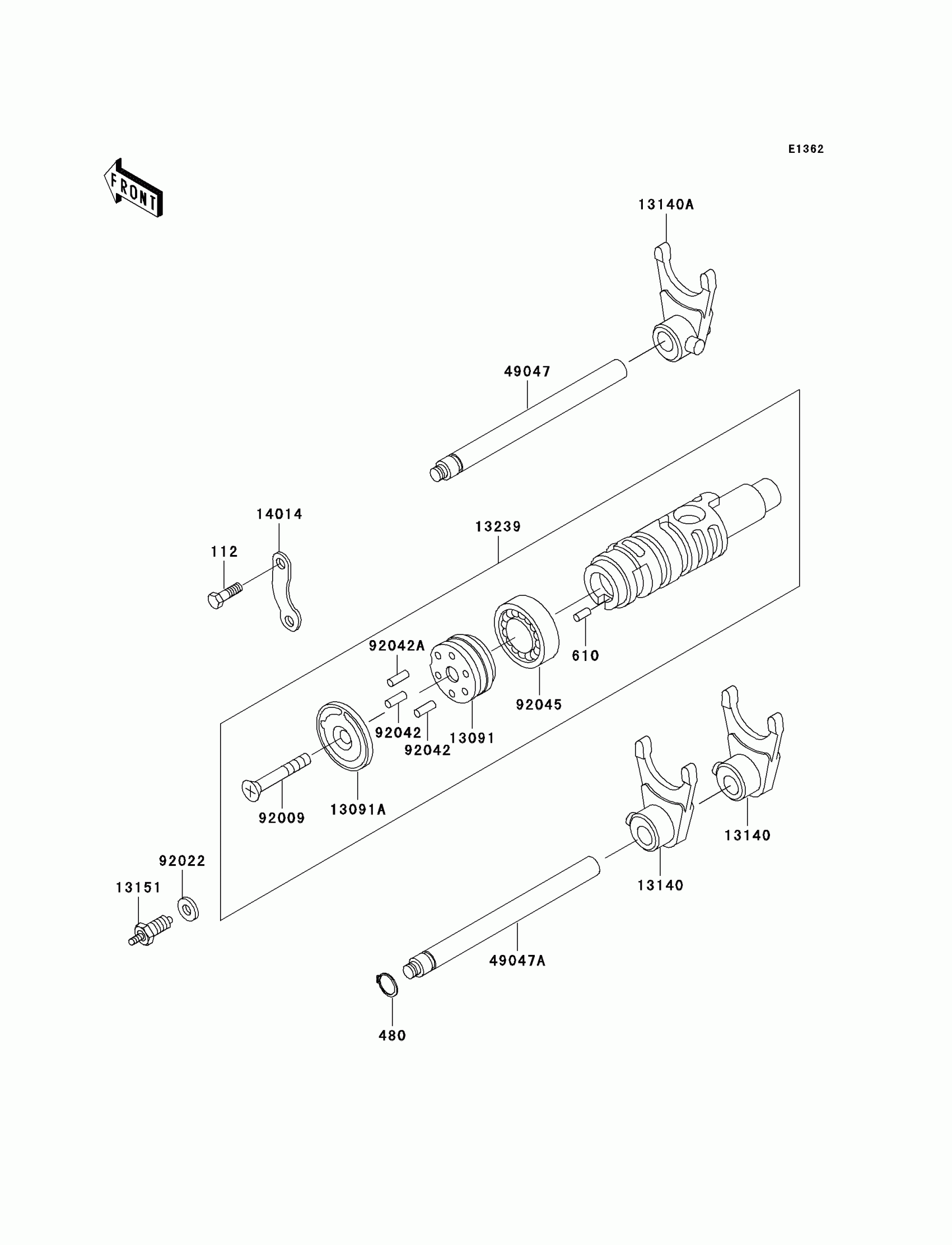

Kawasaki Police 1000 Gear Change Drum/Shift Fork(s) Diagram

Description

Price

112

BOLT-UPSET,6X16

112G0616

$1.10

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

610

ROLLER,4X10

610A0410

$4.31

13091

HOLDER,CHANGE DRUM PIN

13091-1087

$51.53

13091A

HOLDER,CHANGE DRUM PIN

13091-1088

$27.54

13140

FORK-SHIFT

13140-1214

$117.09

13140A

FORK-SHIFT

13140-1215

$117.09

13151

SWITCH-COMP,NEUTRAL

13151-1010

$27.10

13239

DRUM-ASSY-CHANGE

13239-1107

$253.70

14014

PLATE-POSITION

14014-1015

$7.83

49047

ROD-SHIFT

49047-1014

$39.65

49047A

ROD-SHIFT

49047-1019

$39.65

92009

SCREW,6X45

92009-1599

$3.96

92022

WASHER,12X18X1.0

92022-1211

$3.92

92042

PIN,DOWEL,4X15.8

92042-014

$0.43

92042A

PIN,DOWEL,4X17.8

92042-020

$5.05

92045

BEARING-BALL,6806

92045-1152

$45.82
