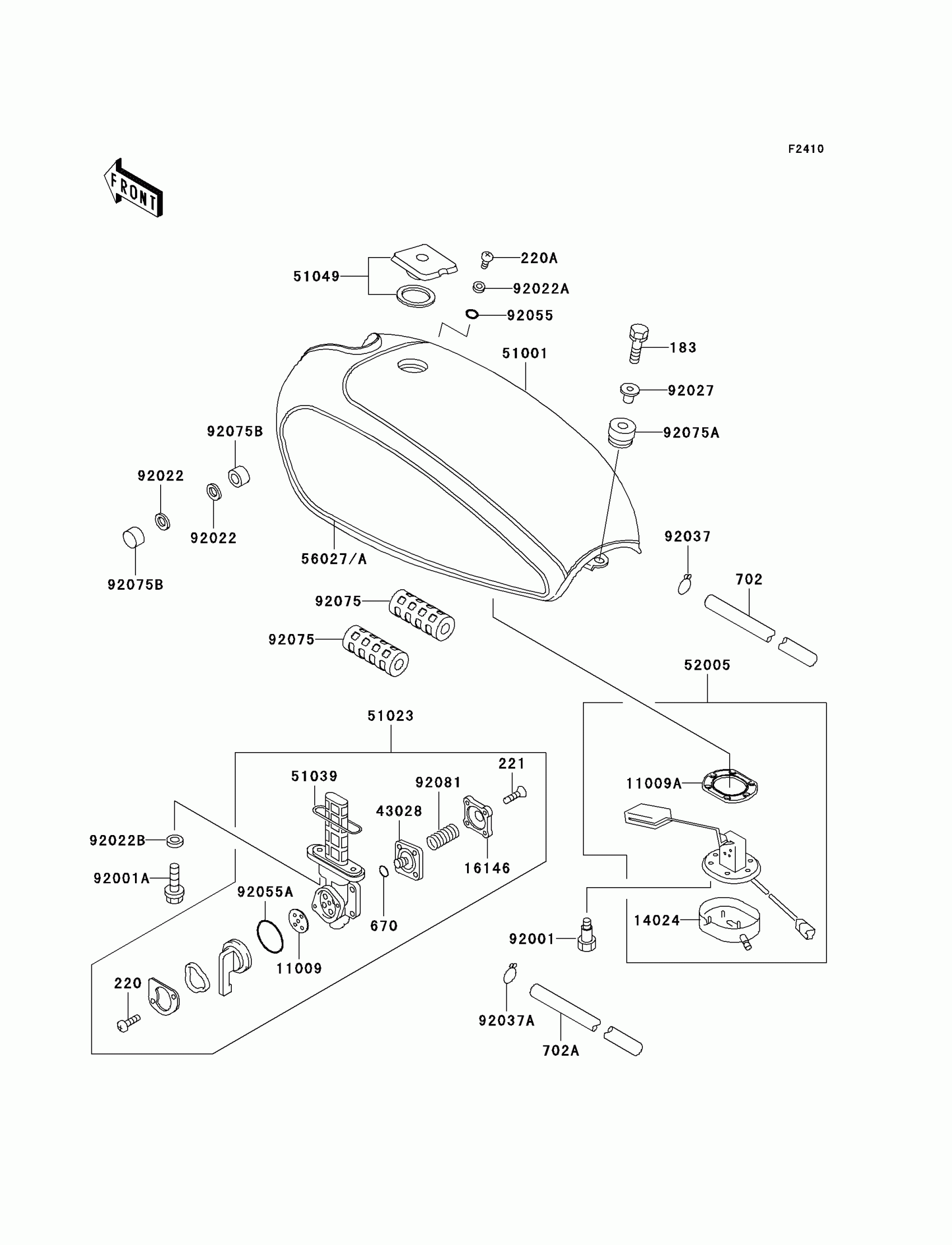

Kawasaki Police 1000 Fuel Tank(P20) Diagram

#

Description
Price

183

BOLT-UPSET-WS-SMALL

183B0830

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.63

220A

SCREW PAN HEAD 5X10

220B0510

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

670

O RING,4MM

670B1504

$3.27

702

TUBE-RUBBER,5X800

702A05800

$24.56

702A

TUBE-RUBBER,7X10X780

702A07780

$10.53

11009

GASKET,TAP VALVE

11009-1194

$7.89

11009A

GASKET,FUEL GAUGE

11009-1826

$19.06

14024

COVER,FUEL GAUGE

14024-1434

$36.06

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1005

$19.78

43028

DIAPHRAGM,TAP

43028-1015

$20.32

51001

TANK-COMP-FUEL,J.WHITE

51001-1432-8C

$536.27

51023

TAP-ASSY,FUEL

51023-1039

$140.03

51039

RING,TAP FLANGED

51039-010

$6.01

51049

CAP-TANK,FUEL

51049-1084

$186.31

52005

GAUGE,FUEL

52005-1132

Unavailable

56027

PATTERN

56027-4072

Unavailable

56027A

PATTERN

56027-4073

Unavailable

92001

BOLT,FUEL GAUGE

92001-1069

$5.76

92001A

BOLT,6X20

92001-1091

$3.12

92022

WASHER,10.5X26X2.3

92022-044

$3.12

92022A

WASHER-PLAIN

92022-183

$3.12

92022B

WASHER,5.1X10X1.0

92022-1977

$2.92

92027

COLLAR,FUEL TANK FITT

92027-1134

$8.16

92037

CLAMP,TUBE

92037-1461

$3.08

92037A

CLAMP,TUBE

92037-147

$5.84

92055

RING-O

92055-1023

$3.12

92055A

RING-O,TAP LEVER

92055-1027

$4.15

92075

DAMPER,FUEL TANK

92075-084

$7.97

92075A

DAMPER,FUEL TANK

92075-1116

Unavailable

92075B

DAMPER,FUEL TANK

92075-125

$4.93

92081

SPRING,TAP DIAPHRAGM

92081-1171

$3.46
