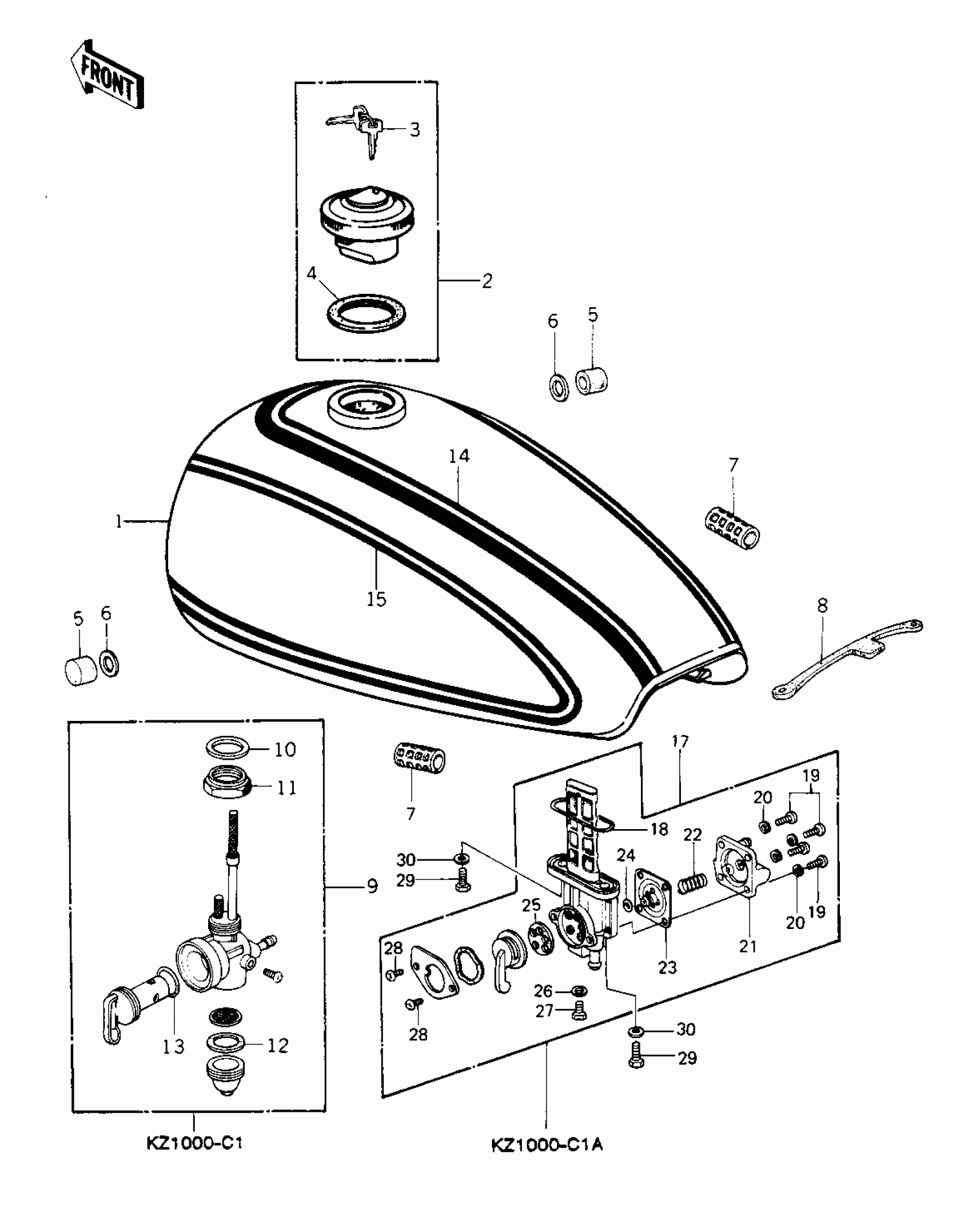

Kawasaki Police 1000 FUEL TANK ('78 C1/C1A) Diagram

#

Description
Price

1

TANK-FUEL,

51001-116-8C

$400.42

1

TANK-FUEL,

51001-4001-8C

$414.29

2

CAP ASSY, LOCKING

51048-006

Unavailable

3

KEY SET,TANK,#165

27008-053-65

$21.64

3

KEY SET,TANK,#166

27008-053-66

$11.48

3

KEY SET,TANK,#167

27008-053-67

Unavailable

3

KEY SET,TANK,#168

27008-053-68

$14.76

3

KEY SET TANK,#169

27008-053-69

$10.96

4

GASKET,FUEL TANK CAP

51059-009

Unavailable

5

DAMPER,FUEL TANK

92075-125

$6.22

6

WASHER,10.5X26X2.3

92022-044

$3.92

7

DAMPER,FUEL TANK

92075-084

$10.04

8

BAND,FUEL TANK

92072-042

$15.19

9

FUEL COCK ASSY

51023-055

Unavailable

10

GASKET-FUEL COCK JNT.

92065-081

$5.64

11

FUEL COCK JOINT NUT

51035-009

Unavailable

12

GASKET FUEL COCK CUP

51037-010

$5.64

13

O RING,10MM

670B2010

$1.50

14

FUEL TANK DECAL TOP

56029-194

$27.16

15

FUEL TANK DECAL LEFT

56029-196

Unavailable

16

FUEL TANK DECAL RIGH

56029-195

Unavailable

17

TAP ASSY,FUEL

51023-1018

Unavailable

18

"0" RING

43058-1001

$15.05

19

SCREW-PAN-CRSOSS,4X1

220B0412

$0.21

20

WASHER SPRING 4MM

461F0400

Unavailable

21

COVER ASSY,FUEL TAP

51036-1001

Unavailable

22

SPRING,DIAPHRAGM

92081-1054

Unavailable

23

DIAPHRAGM VALVE ASSY

16126-1011

Unavailable

24

"0" RING,DIAPHRAGM

92055-1068

Unavailable

25

GASKET,FUEL TAP

11009-1044

$19.31

26

GASKET,DRAIN BOLT

11009-1045

Unavailable

27

BOLT,DRAIN

92001-1089

Unavailable

28

SCREW PAN HEAD 4X8

220B0408

$0.67

29

BOLT-HEX HEAD,6X16

92001-114

$4.37

30

WASHER-PLAIN

92022-183

$3.92
