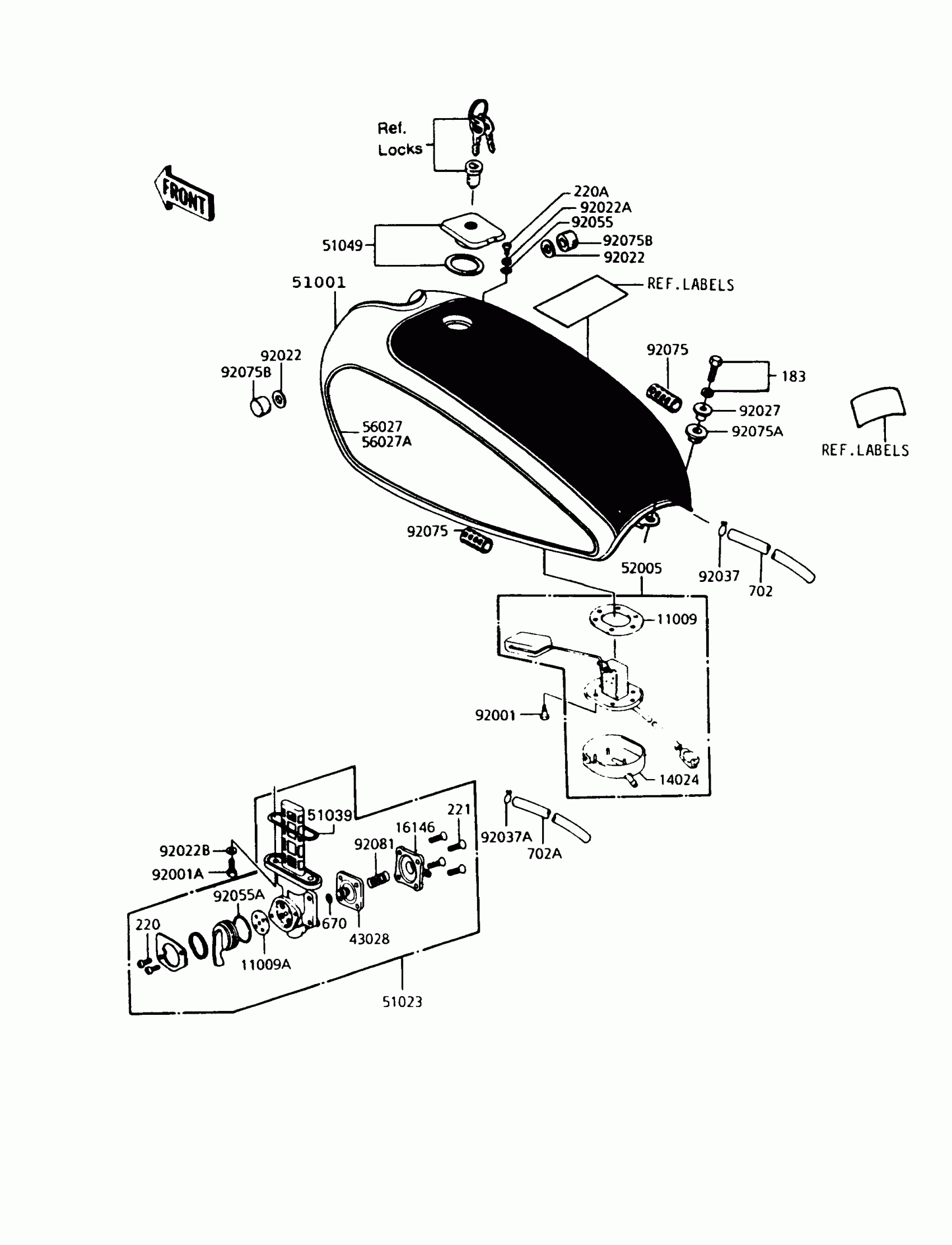

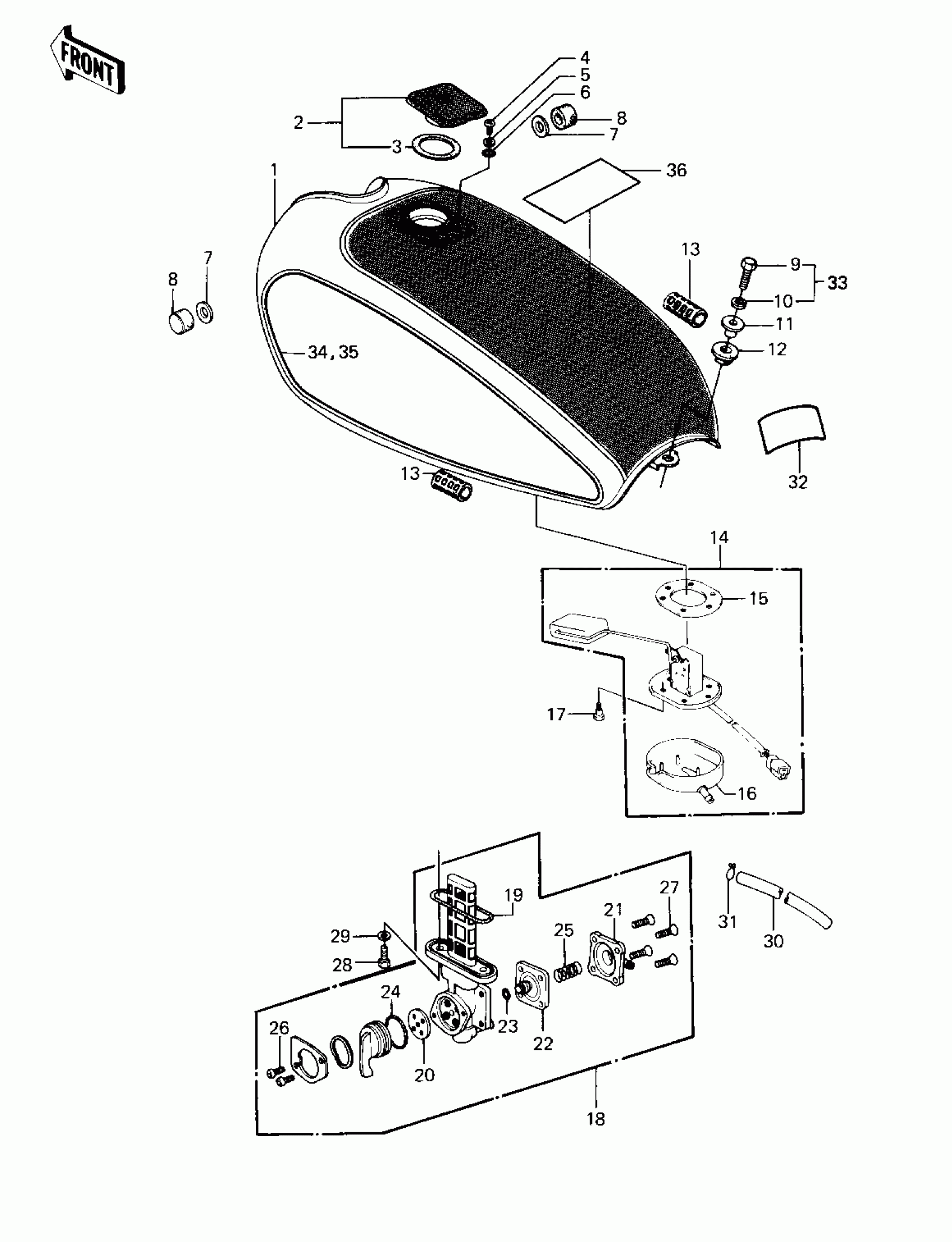

Kawasaki Police 1000 FUEL TANK Diagram

#

Description

Price

1

TANK-FUEL,WHITE

51001-1101-8C

Unavailable

2

CAP-ASSY-TANK,FUEL

51048-1015

Unavailable

3

GASKET,FUEL TANK CAP

11009-1051

Unavailable

4

SCREW PAN HEAD 5X10

220B0510

Unavailable

5

WASHER,5.3X10X0.8

92022-1038

Unavailable

6

RING-O

92055-1023

Unavailable

7

WASHER,10.5X26X2.3

92022-044

Unavailable

8

DAMPER,FUEL TANK

92075-125

Unavailable

9

BOLT-SMALL-UPSET,8X30

115G0830

Unavailable

10

WASHER SPRING 8MM

461F0800

Unavailable

11

COLLAR,FUEL TANK FITT

92027-1134

Unavailable

12

DAMPER,FUEL TANK

92075-1116

Unavailable

13

DAMPER,FUEL TANK

92075-084

Unavailable

14

GAUGE,FUEL

52005-1027

Unavailable

15

GASKET,FUEL GAUGE

11009-1037

Unavailable

16

COVER,FUEL GAUGE

14024-1434

Unavailable

17

BOLT,DRAIN

92001-1089

Unavailable

18

TAP-ASSY,FUEL

51023-1039

Unavailable

19

RING,TAP FLANGED

51039-010

Unavailable

20

GASKET,TAP VALVE

11009-1194

Unavailable

21

COVER-ASSY,TAP DIAPHRAGM

16146-1005

Unavailable

22

DIAPHRAGM,TAP

43028-1015

Unavailable

23

UNAVAILABLE IN PRICE BOOK

670B1604

Unavailable

24

RING-O,TAP LEVER

92055-1027

Unavailable

25

SPRING,TAP DIAPHRAGM

92081-1171

Unavailable

26

SCREW-PAN-CROS,3X8

220B0308

Unavailable

27

SCREW-CSK-CROS,4X14

221B0414

Unavailable

28

BOLT,6X20

92001-1091

Unavailable

29

WASHER-PLAIN

92022-183

Unavailable

30

TUBE-BREATHER (BULK)

702A071000

Unavailable

31

CLAMP,TUBE

92037-147

Unavailable

32

LABEL-WARNING,AIR INTAKE

56040-1014

Unavailable

33

BOLT-UPSET-WS-SMALL

183B0830

Unavailable

34

PATTERN

56027-4073

Unavailable

35

PATTERN

56027-4072

Unavailable

36

WARNING LABEL(FUEL TANK) (Cana

99969-0847

Unavailable
