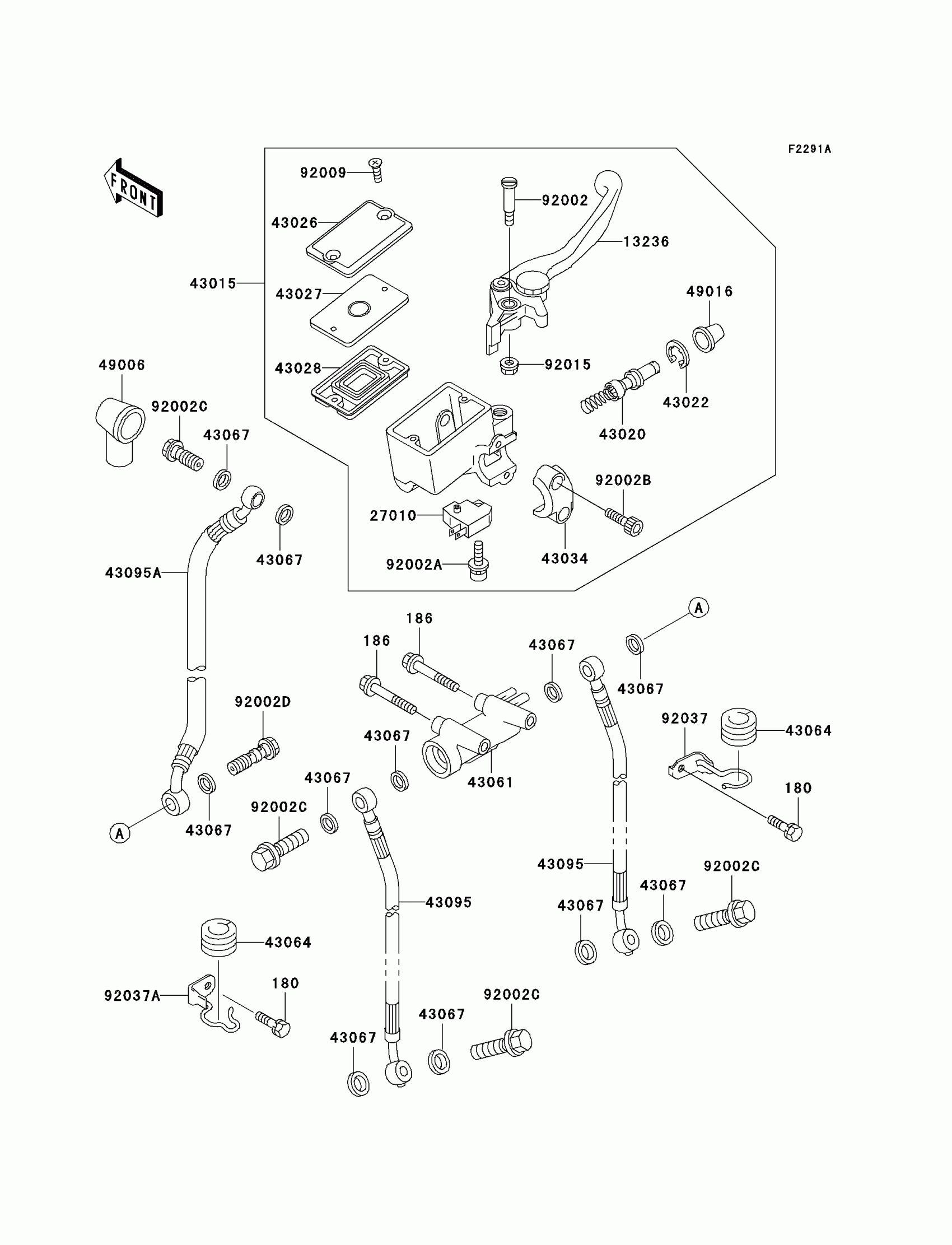

Kawasaki Police 1000 Front Master Cylinder(P21/P22/P24) Diagram

Description

Price

180

BOLT 6X12

180B0612

Unavailable

186

BOLT-UPSET-WP

186B0660

Unavailable

13236

LEVER-COMP,FRONT BRAKE

13236-1221

$42.75

27010

SWITCH,BRAKE

27010-1170

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-1650

$417.61

43020

PISTON-COMP-BRAKE,FR

43020-1054

$58.51

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1076

$43.44

43027

PLATE-DIAPHRAGM

43027-1055

$7.68

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$18.50

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$36.55

43061

JOINT-BRAKE

43061-1004

$73.52

43064

GROMMET,HOSE CLAMP

43064-006

$3.29

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43095

HOSE-BRAKE,FR,LWR

43095-1163

$92.91

43095A

HOSE-BRAKE,FR,UPP

43095-1205

Unavailable

49006

BOOT,DUST

49006-1041

$8.74

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92002

BOLT,LEVER SET,BLACK

92002-1322

$8.91

92002A

BOLT,SCREW,4X12

92002-1323

$2.99

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.54

92002C

BOLT,OIL,L=23

92002-1888

$4.15

92002D

BOLT,OIL,L=37

92002-1909

$9.00

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92037

CLAMP,BRAKE HOSE

92037-1218

$21.22

92037A

CLAMP,BRAKE HOSE,LH

92037-1367

Unavailable
