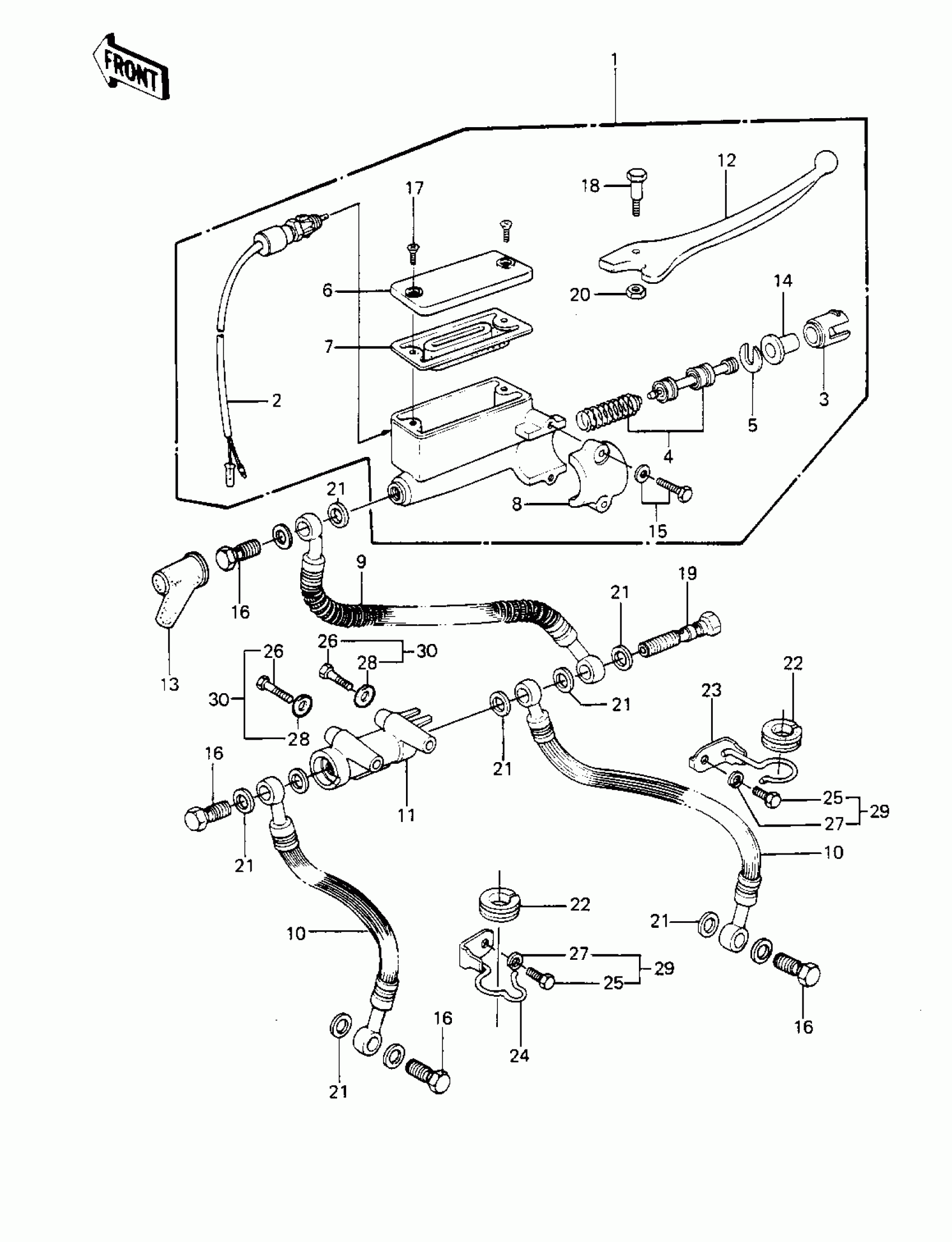

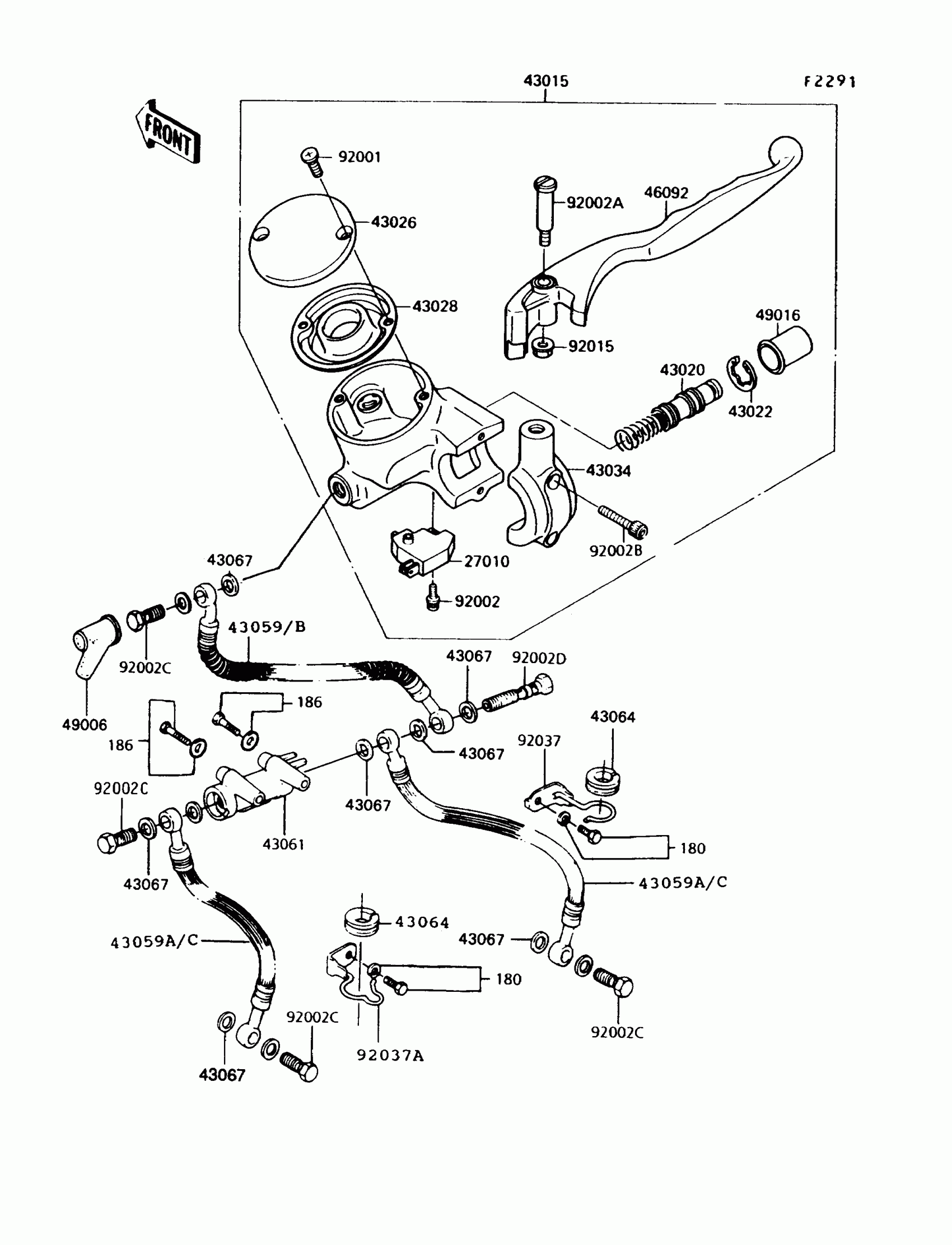

Kawasaki Police 1000 FRONT MASTER CYLINDER Diagram

#

Description

Price

1

CYLINDER ASSY,FR

43015-1046

Unavailable

2

SWITCH,BRAKE

27010-1028

Unavailable

3

LINER,PISTON

14008-1007

Unavailable

4

PISTON-COMP-BRAKE

43020-1023

Unavailable

5

STOPPER-BRAKE,PISTON

43022-1001

Unavailable

6

CAP-BRAKE

43026-1006

Unavailable

7

DIAPHRAGM,MASTER CYLINDER

43028-1008

Unavailable

8

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

Unavailable

9

HOSE-BRAKE

43059-1085

Unavailable

10

HOSE-BRAKE,FR,L=550

43059-1198

Unavailable

10

HOSE-BRAKE,FR,L=550

43059-1198

Unavailable

11

JOINT-BRAKE

43061-1004

Unavailable

12

LEVER,FRONT BRAKE

46092-1012

Unavailable

13

BOOT,DUST

49006-1041

Unavailable

14

COVER-SEAL,BRAKE PISTON

49016-1010

Unavailable

15

BOLT,6X25,W/WASHER

43033-003

Unavailable

16

BOLT,OIL,L=23

92002-1888

Unavailable

16

BOLT,OIL,L=23

92002-1888

Unavailable

17

SCREW-CSK-CROS,5X12,BLACK

92001-1055

Unavailable

18

BOLT,FR BRAKE LEVER

92001-1056

Unavailable

19

BOLT,OIL,L=37

92002-1909

Unavailable

20

NUT 6MM

312B0600

Unavailable

21

WASHER,10.5X15X1.5

43067-001

Unavailable

22

GROMMET,HOSE CLAMP

43064-006

Unavailable

23

CLAMP,BRAKE HOSE

92037-1218

Unavailable

24

CLAMP,BRAKE HOSE,LH

92037-1308

Unavailable

25

BOLT-UPSET,6X12

112G0612

Unavailable

25

BOLT-UPSET,6X12

112G0612

Unavailable

26

BOLT,FLANGED,6X65

130G0665

Unavailable

26

BOLT-UPSET

112G0660

Unavailable

27

WASHER SPRING 6MM

461F0600

Unavailable

28

WASHER PLAIN 6MM

411B0600

Unavailable

29

BOLT 6X12

180B0612

Unavailable

30

BOLT-UPSET-WP

186B0660

Unavailable
