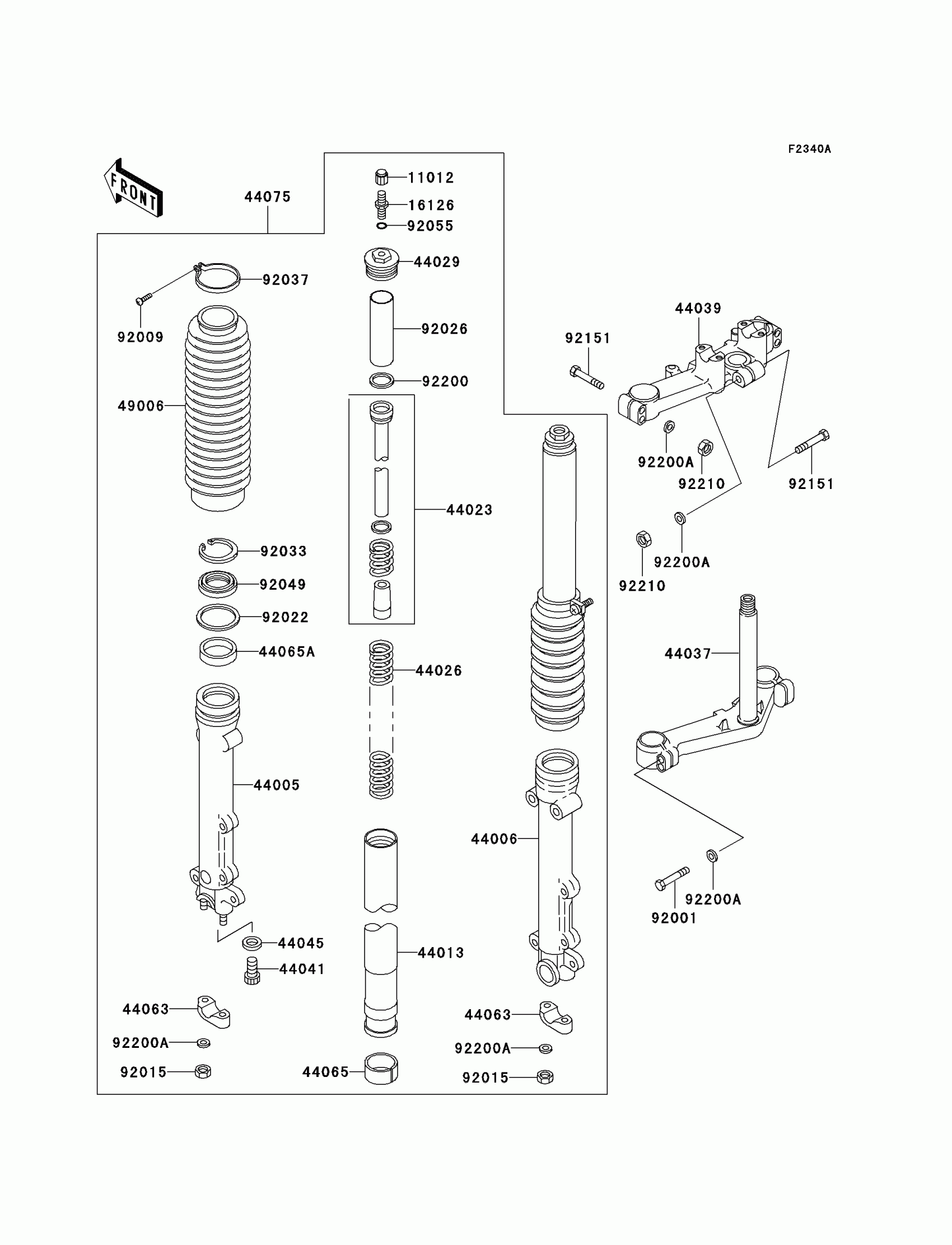

Kawasaki Police 1000 Front Fork(P21/P22/P24) Diagram

#

Description
Price

11012

CAP,AIR VALVE

11012-1241

Unavailable

16126

VALVE,AIR

16126-1046

$31.36

44005

PIPE-LEFT FORK OUTER

44005-1416

$575.50

44006

PIPE-RIGHT FORK OUTER

44006-1416

$575.50

44013

PIPE-FORK INNER

44013-1493

$430.11

44023

CYLINDER-SET-FORK

44023-1157

$173.53

44026

SPRING-FRONT FORK

44026-1731

$125.96

44029

SEAT-FORK SPRING

44029-4001

Unavailable

44037

HOLDER-FORK UNDER

44037-4004

$627.00

44039

HOLDER-FORK UPPER

44039-4007

$382.76

44041

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

44045

GASKET

44045-057

$3.71

44063

HOLDER-FRONT AXLE

44063-011

$37.23

44065

BUSHING-FRONT FORK

44065-1117

$25.85

44065A

BUSHING-FRONT FORK

44065-1118

$23.53

44075

DAMPER-SET-FORK

44075-1141

$1,454.47

49006

BOOT,FORK,BLACK

49006-1079

$86.19

92001

BOLT,8X38

92001-1700

$9.61

92009

SCREW

92009-1969

Unavailable

92015

NUT,LOCK,8MM

92015-1390

$5.07

92022

WASHER,FORK OUTER PIPE

92022-1262

$8.39

92026

SPACER,FORK,L=90

92026-1597

$24.10

92033

RING-SNAP,FORK

92033-1047

$4.84

92037

CLAMP,FORK BOOTS

92037-1024

$7.65

92049

SEAL-OIL,FORK

92049-1588

$25.88

92055

RING-O,FORK TOP

92055-1012

$6.48

92151

BOLT,8X55

92151-1978

Unavailable

92200

WASHER

92200-1497

$5.10

92200A

WASHER,SPRING,8MM

92200-1577

$1.34

92210

NUT,8MM

92210-1305

$1.81
