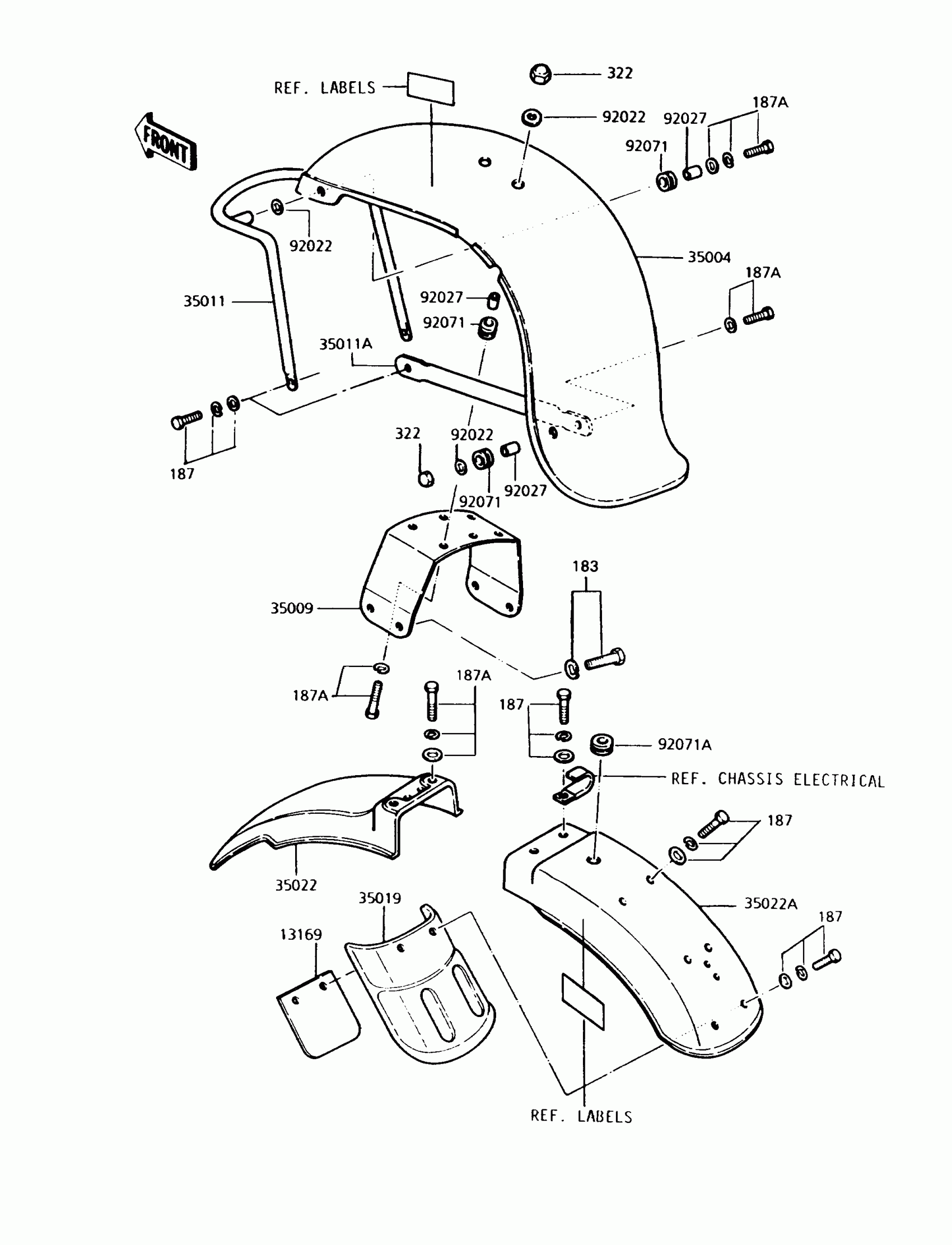

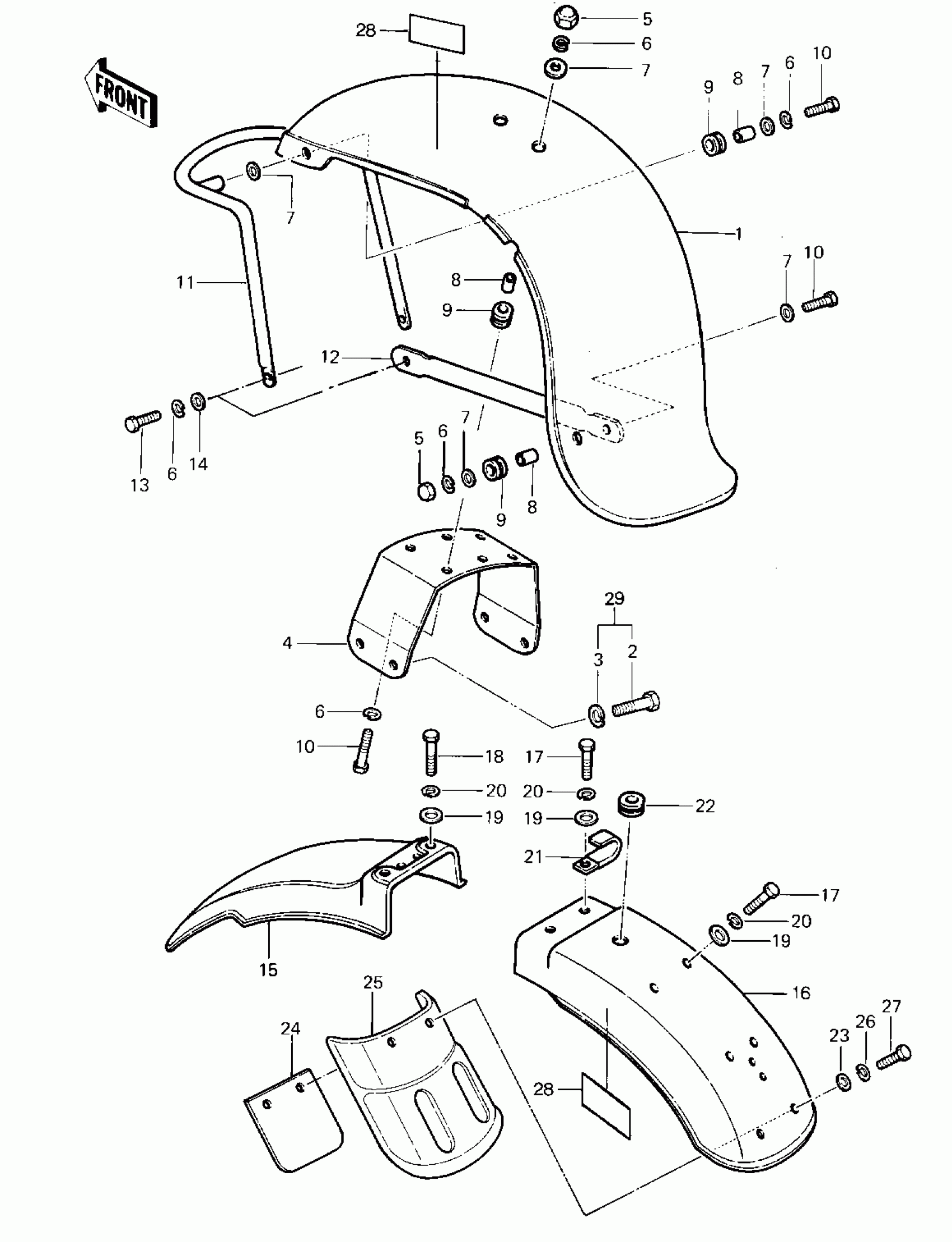

Kawasaki Police 1000 FENDERS Diagram

#

Description

Price

1

FENDER-FR,WHITE

35004-4004-8C

Unavailable

1

FENDER-FRONT,J.WHITE

35004-4007-8C

Unavailable

2

BOLT-UPSET,6X20

112G0620

Unavailable

3

WASHER SPRING 8MM

461F0800

Unavailable

4

BRACE,FR FENDER

35009-1001

Unavailable

5

NUT-6MM

322N0600

Unavailable

5

NUT-6MM

322N0600

Unavailable

6

WASHER SPRING 6MM

461F0600

Unavailable

6

WASHER SPRING 6MM

461F0600

Unavailable

7

WASHER,6.5X20X1.6,WHITE

92022-193

Unavailable

7

WASHER,6.5X20X1.6,WHITE

92022-193

Unavailable

8

COLLAR 6.8X10X10.5

92027-120

Unavailable

8

COLLAR 6.8X10X10.5

92027-120

Unavailable

9

GROMMET

92071-046

Unavailable

9

GROMMET

92071-046

Unavailable

10

BOLT-UPSET

112G0625

Unavailable

11

STAY,FR FENDER,FR

35011-4001

Unavailable

12

STAY,FR FENDER,RR

35011-4004

Unavailable

13

BOLT-UPSET 6X14

112B0614

Unavailable

13

BOLT-UPSET 6X14

112B0614

Unavailable

14

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

14

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

15

FENDER-COMP-REAR,FR

35022-1071

Unavailable

16

FENDER-COMP-REAR,RR,J.WHITE

35022-1099-8C

Unavailable

17

BOLT-UPSET 6X14

112B0614

Unavailable

18

BOLT 6X22

112B0622

Unavailable

19

WASHER PLAIN 6MM

411B0600

Unavailable

20

WASHER SPRING 6MM

461F0600

Unavailable

21

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

22

GROMMET,13MM

92071-099

Unavailable

23

WASHER PLAIN 6MM

411B0600

Unavailable

24

PLATE,FLAP MOUNT

13169-4020

Unavailable

25

FLAP,FENDER,RR

35019-1005

Unavailable

26

WASHER SPRING 6MM

461F0600

Unavailable

27

BOLT-UPSET 6X14

112B0614

Unavailable

28

LABEL-TIRE PRESSURE

99969-0849

Unavailable

29

BOLT-UPSET-WS-SMALL

183B0820

Unavailable
