Description

Price

1

GASKET,CYLINDER RUBE

92055-062

$153.96

2

PIN,DOWEL,10X14

92043-1037

$0.74

3

CYLINDER

11005-163-2H

Unavailable

4

PIN,11X14X12.3

92043-1266

$1.08

5

GASKET,CYLINDER BASE

11009-030

Unavailable

6

RUBBER PLUG,CYLINDER

92074-030

Unavailable

7

"O" RING,73MM

92055-054

$21.81

8

RING SET,STD

13008-5012

$151.39

8

RING SET,0.020"O/S

13025-5007

Unavailable

8

RING SET,0.040"O/S

13024-5008

Unavailable

9

PISTON,S.T.D

13001-1005

Unavailable

9

PISTON,0.020'O/S

13029-078

Unavailable

9

PISTON,0.040"0/S

13027-1003

Unavailable

10

PIN-PISTON

13002-022

$58.36

11

CIRCLIP,PISTON PIN

92036-021

$0.49

12

CRANKSHAFT ASSY

13031-056

Unavailable

12

CRANKSHAFT ASSY

13031-1006

Unavailable

13

KEY,WOODRUFF

92038-001

$4.96

14

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

15

SPACER,30X38X1.0

92026-079

$8.86

16

BRG,N,PK304016.8X3

92046-063

Unavailable

17

BUSHING,CRANKSHAFT

92028-121

Unavailable

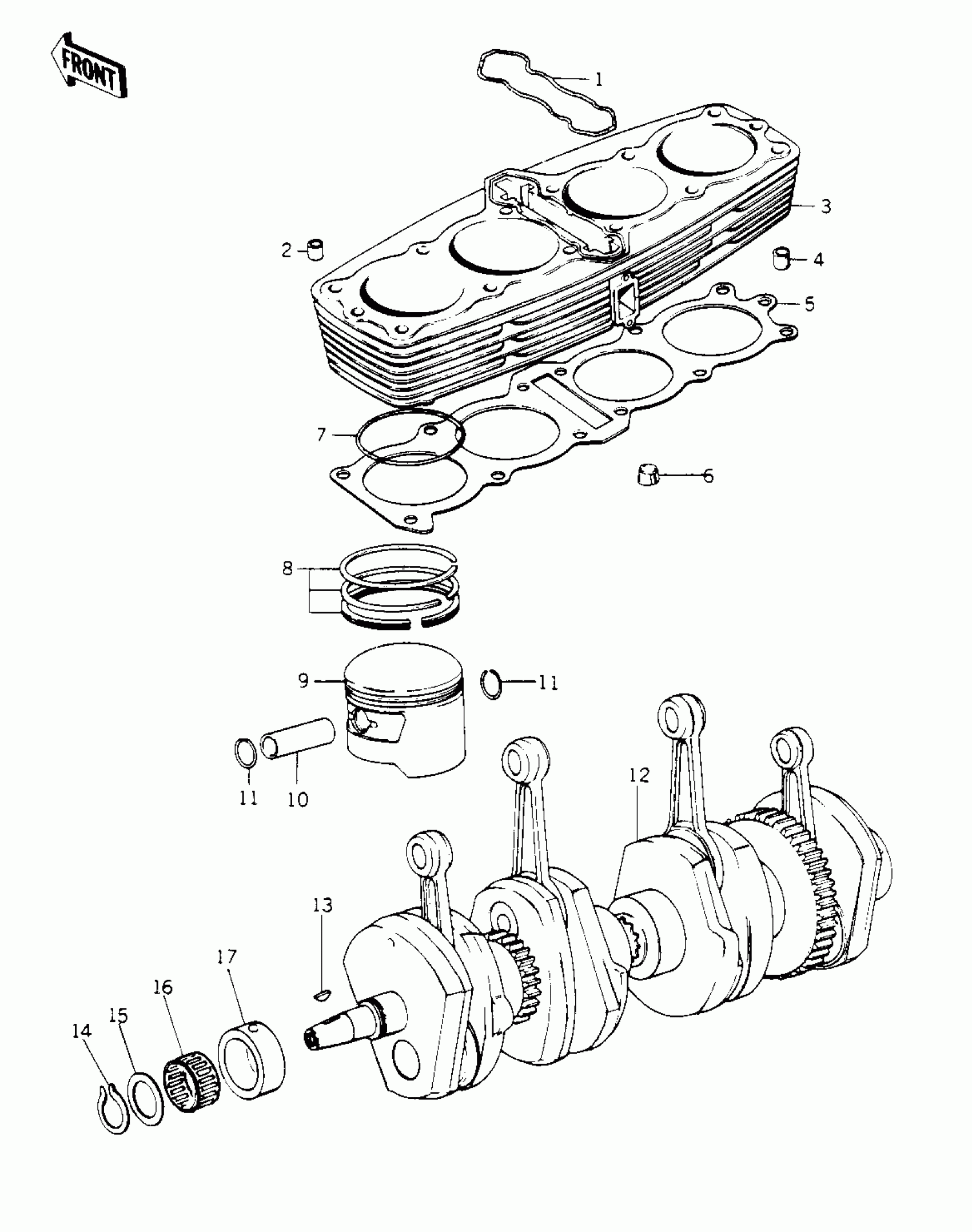

Kawasaki Police 1000 CYLINDER/PISTONS/CRANKSHAFT ('78 C1/C1A) Diagram

GASKET,CYLINDER RUBE

PIN,DOWEL,10X14

CYLINDER

PIN,11X14X12.3

GASKET,CYLINDER BASE

RUBBER PLUG,CYLINDER

"O" RING,73MM

RING SET,STD

RING SET,0.020"O/S

RING SET,0.040"O/S

PISTON,S.T.D

PISTON,0.020'O/S

PISTON,0.040"0/S

PIN-PISTON

CIRCLIP,PISTON PIN

CRANKSHAFT ASSY

CRANKSHAFT ASSY

KEY,WOODRUFF

CIRCLIP-TYPE-C,30MM

SPACER,30X38X1.0

BRG,N,PK304016.8X3

BUSHING,CRANKSHAFT
