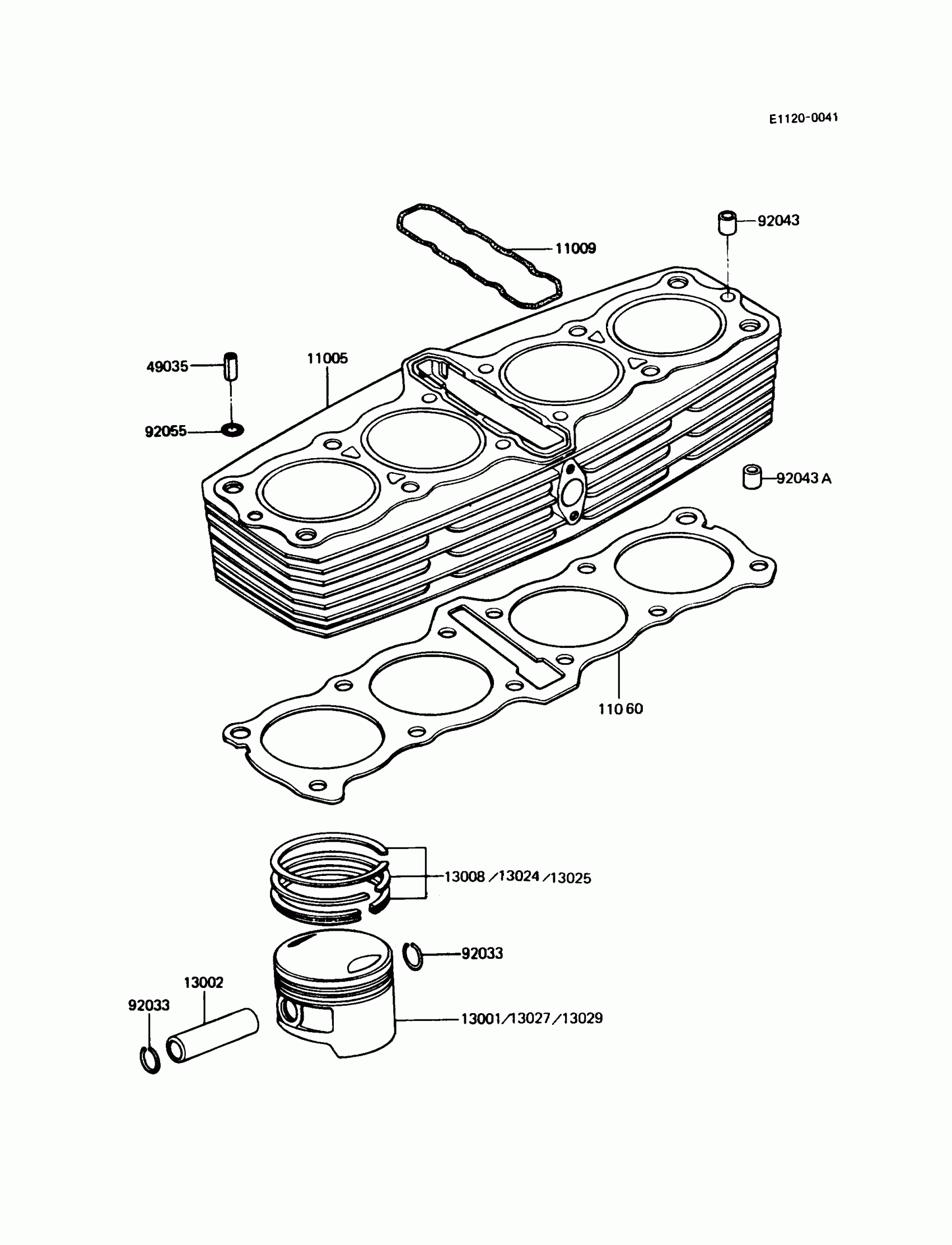

Kawasaki Police 1000 Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE,SILVER

11005-1327

$1,518.21

11009

GASKET,CYLINDER

11009-1208

$82.08

11060

GASKET,CYLINDER BASE

11060-1067

Unavailable

13001

PISTON-ENGINE,STD

13001-1416

$122.94

13002

PIN-PISTON

13002-1013

$6.66

13008

RING-SET-PISTON,STD

13008-5056

$75.44

13024

RING-SET-PISTON LL,O/S 1.00

13024-5024

$77.41

13025

RING-SET-PISTON L,O/S 0.50

13025-5024

$88.37

13027

PISTON-ENGINE LL,O/S 1.00

13027-1056

$122.94

13029

PISTON-ENGINE L,O/S 0.50

13029-1058

$122.94

49035

PIN-SPRING

49035-1051

$8.25

92033

RING-SNAP

92033-1054

$2.47

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92043A

PIN,11X14X12.3

92043-1266

$1.08

92055

RING-O,OD=18.5

92055-1148

$14.23
