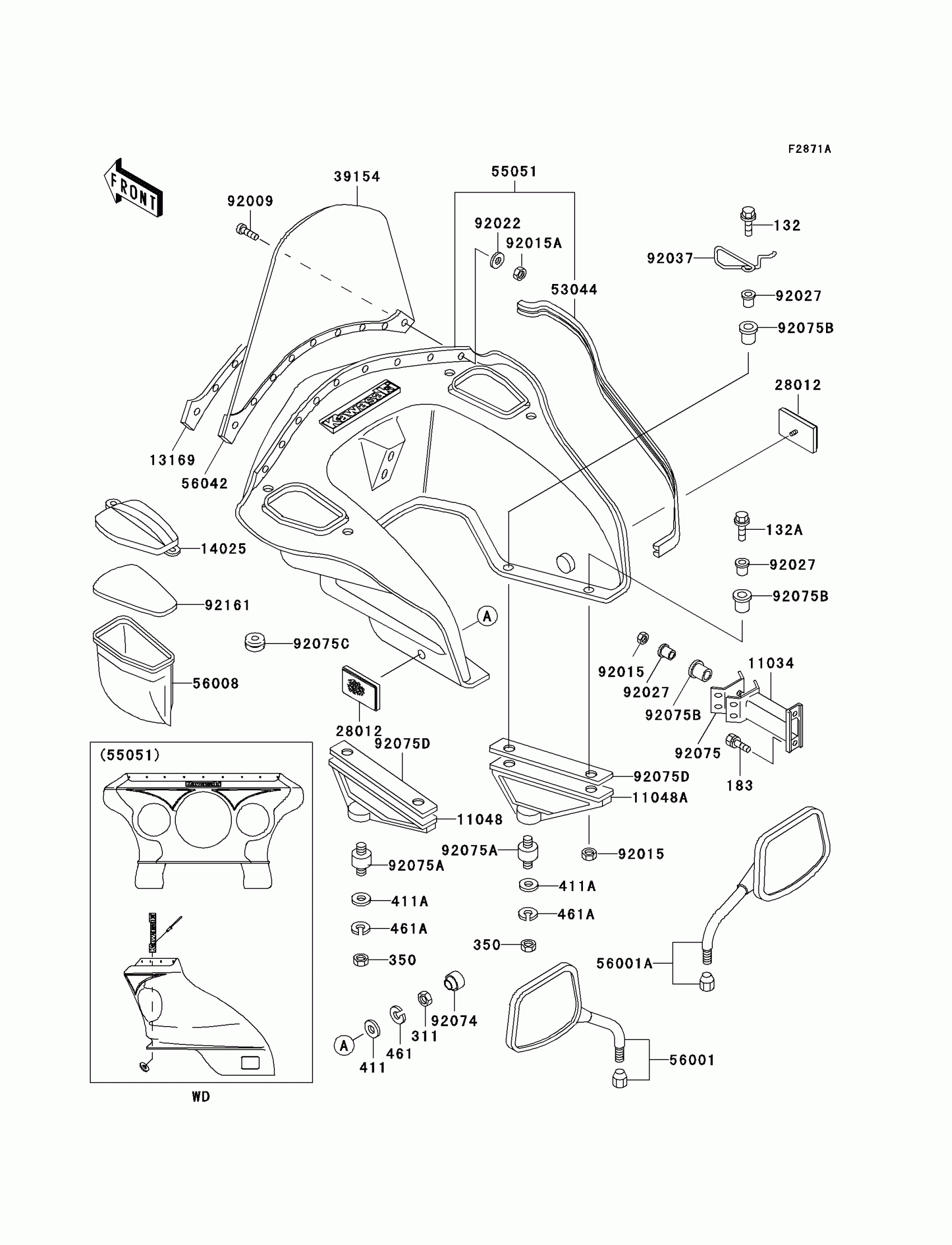

Kawasaki Police 1000 Cowling(P21/P22/P24) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,8X30

132E0830

$5.78

132A

BOLT-FLANGED-SMALL,8X35

132E0835

$5.52

183

BOLT-UPSET-WS-SMALL

183G0816

$4.08

311

NUT-HEX

311B0500

$0.47

350

NUT-UNF INSERT

350BA1000

$4.70

411

WASHER-PLAIN,5MM

411B0500

$0.46

411A

WASHER PLAIN 8MM

411B0800

$0.93

461

WASHER SPRING 5MM

461F0500

$0.69

461A

WASHER SPRING 8MM

461F0800

$0.40

11034

BRACKET,COWLING,FR

11034-4089

$125.26

11048

BRACKET,COWLING,LH

11048-1470

$159.02

11048A

BRACKET,COWLING,RH

11048-1471

$159.02

13169

PLATE,WINDSHIELD

13169-4014

$52.96

14025

COVER,BAG

14025-4013

Unavailable

28012

REFLECTOR-REFLEX

28012-1003

$22.09

39154

WINDSHIELD

39154-4003

$380.53

53044

TRIM,COWLING

53044-4001

$50.77

55051

COWLING-ASSY,J.WHITE

55051-5117-22

$1,592.86

56001

MIRROR-ASSY,LH

56001-1368

$79.46

56001A

MIRROR-ASSY,RH

56001-1369

$79.46

56008

BAG

56008-4003

$45.40

56042

ADHESIVE

56042-4003

$5.56

92009

SCREW,PLASTIC,5X28

92009-4005

$1.89

92015

NUT,LOCK,8MM

92015-1124

$5.42

92015A

NUT,PLASTIC,5MM

92015-4014

$1.30

92022

WASHER,PLAIN,5MM,PLASTIC

92022-4015

$0.44

92027

COLLAR

92027-4015

$10.65

92037

CLAMP,COWLING HARNESS

92037-4005

$37.94

92074

PLUG

92074-027

$9.82

92075

DAMPER,COWLING FITTING

92075-1179

$13.71

92075A

DAMPER,COWLING BRACKET

92075-4013

$18.75

92075B

DAMPER

92075-4020

$2.91

92075C

DAMPER

92075-4027

$2.71

92075D

DAMPER,COWLING BRACKET

92075-4033

$8.60

92161

DAMPER

92161-1255

$23.98
