1986 Kawasaki Police 1000 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1986 Kawasaki Police 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

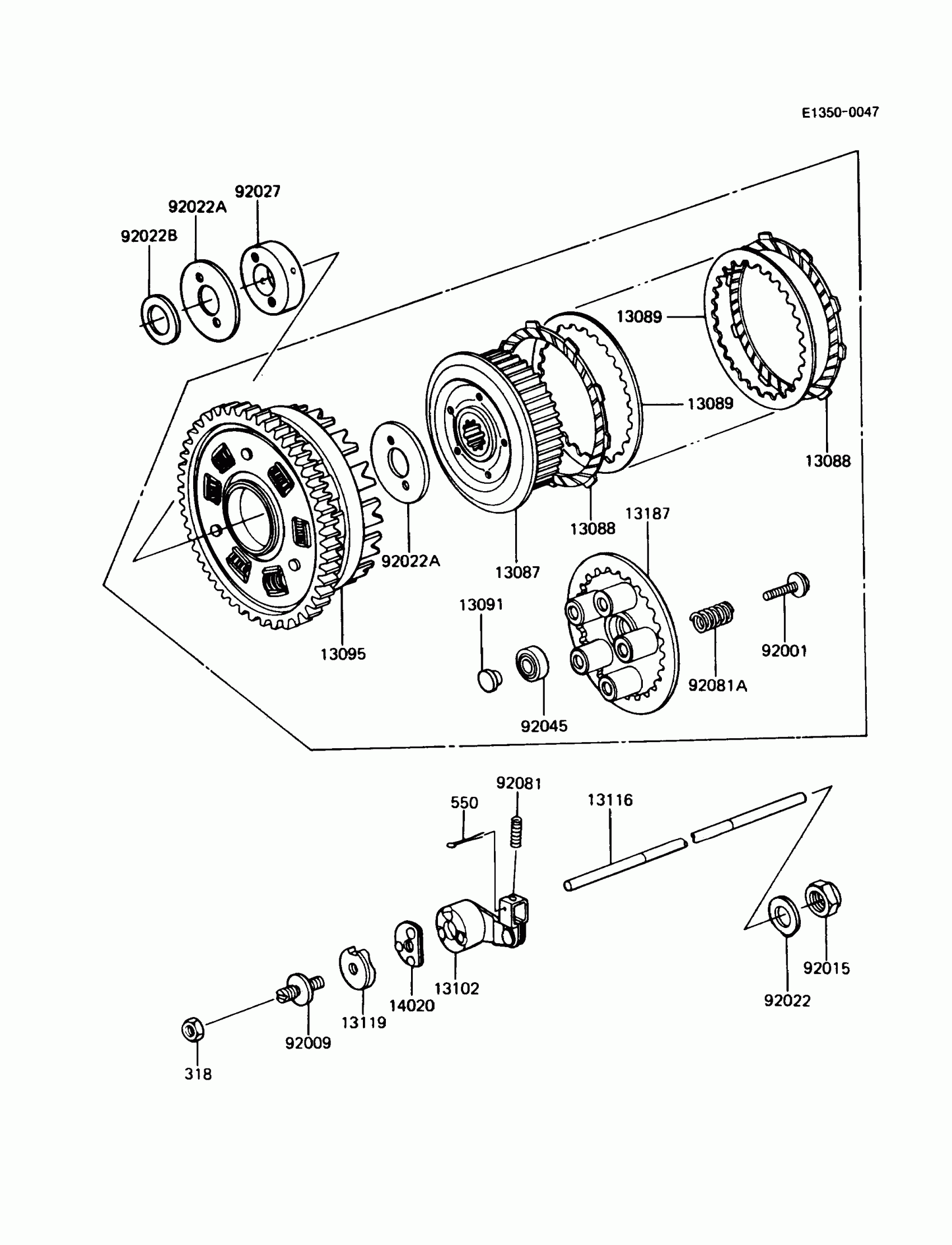

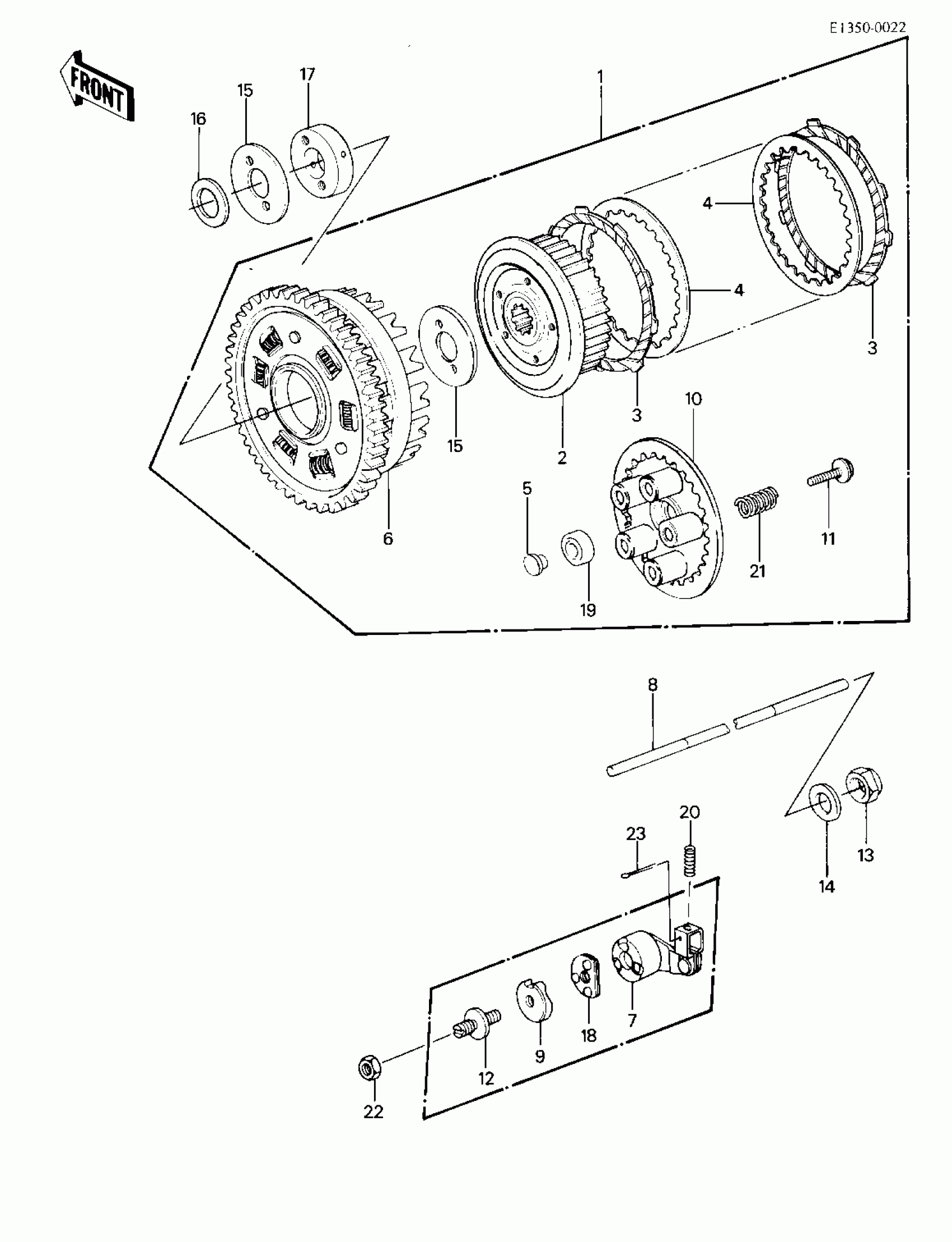

1986 Kawasaki Police 1000 Clutch Diagram

#

Description
Price
Status
Order Qty

1

CLUTCH-ASSY

13081-1057

Out of stock

2

HUB-CLUTCH

13087-1015

$252.61

In stock

3

PLATE-FRICTION

13088-1013

$12.46

In stock

4

PLATE-CLUTCH,T=2.3

13089-1004

$10.41

In stock

5

HOLDER,CLUTCH PUSH ROD

13091-1085

Out of stock

6

HOUSING-COMP-CLUTCH

13095-1037

$616.19

In stock

7

RELEASE-COMP-CLUTCH

13102-1012

Out of stock

8

ROD-PUSH

13116-1033

Out of stock

9

CAM-RELEASE,CLUTCH

13119-1003

$15.92

In stock

10

$76.98

In stock

11

BOLT,FLANGED,6X18

92001-1066

$4.93

In stock

12

SCREW,8MM

92009-1009

Out of stock

13

NUT,20MM

92015-1555

$10.37

In stock

13

NUT,20MM

92015-1555

$10.37

In stock

14

WASHER,20.3X36X2.3

92022-1116

$6.82

In stock

15

$14.24

In stock

16

WASHER,25.3X36X2.5

92022-1223

$8.39

In stock

17

COLLAR,25X57X16.1

92027-1284

$89.53

In stock

18

BEARING,BALL,CLUTCH

92045-1001

$9.19

In stock

19

$12.85

In stock

19

$12.85

In stock

20

$5.98

In stock

21

SPRING,CLUTCH

92081-1033

$5.88

In stock

22

$0.63

In stock

23

$2.08

In stock
