Description

Price

1

FUSE-ASSY

26004-035

Unavailable

2

DAMPER,FUSE

92075-279

$6.45

3

FUSE,20A,L=25

26006-005

$5.06

4

FUSE,10A,L=25

26006-003

$4.72

5

BOLT,6X10

92001-137

$6.52

6

WASHER SPRING 6MM

461F0600

$0.69

7

WIRE,BATTERY GROUND

26010-054

$35.24

8

WIRE,STARTER LEAD

26010-053

$39.48

9

WIRING HARNESS,CENTE

26002-057

$131.20

10

COVER WIRING HARNESS

26009-003

Unavailable

11

WIRING HARNESS,MAIN

26001-145

$243.40

11

WIRING HARNESS,MAIN

26001-1035

$301.97

12

WIRING HARNESS,REAR

26002-031

Unavailable

13

SWITCH-BRAKE LAMP

27010-017

Unavailable

14

FUSE ASSY

26004-1001

$7.57

15

REGULATOR

21066-024

Unavailable

16

BOLT HEX HEAD 6X40

110B0640

Unavailable

17

BOLT HEX HEAD 8X16

110B0816

$0.68

18

WASHER SPRING 8MM

461F0800

$0.40

19

HORN

27003-065

Unavailable

19

HORN

27003-1006

Unavailable

20

RELAY-ASSY,TURN SIGNAL

27002-011

$101.43

21

RELAY,TURN SIGNAL

27002-016

Unavailable

22

BAND,L=123

92072-030

$5.00

22

BAND,L=123

92072-030

$5.00

23

BAND,L=186

92072-056

$5.00

23

BAND,L=186

92072-056

$5.00

24

BRACKET,OUTAGE SWITCH

32060-014

$12.61

25

SWITCH,OUTAGE,INDICTR

28019-001

Unavailable

26

CASE,BATTERY

32099-015

Unavailable

27

YUA BAT YB14L-A2

26012-1008

$83.22

28

REGULATOR

21066-026

Unavailable

29

LABEL, BATTERY CAUSON

56022-157

Unavailable

30

WIRING HARNESS,MAIN

26001-1011

$129.64

31

WIRING HARNESS,HAZAR

26001-1012

$27.42

32

HARNESS,TAIL LAMP

26001-1013

$34.78

33

BOLT,10X70

113B1070

$9.55

34

BRACKET,SIREN (OPT)

11034-4001

Unavailable

35

BOLT, 6 X 18

110B0618

$1.01

36

WASHER,6.5X20X1.6,WHITE

92022-193

$5.33

37

WASHER SPRING 6MM

461F0600

$0.69

38

COLLAR

92027-103

$3.58

39

DAMPER RUBBER

92075-105

$4.38

40

NUT 6MM

310B0600

$0.96

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

RELAY,TURN SIGNAL

27034-1001

Unavailable

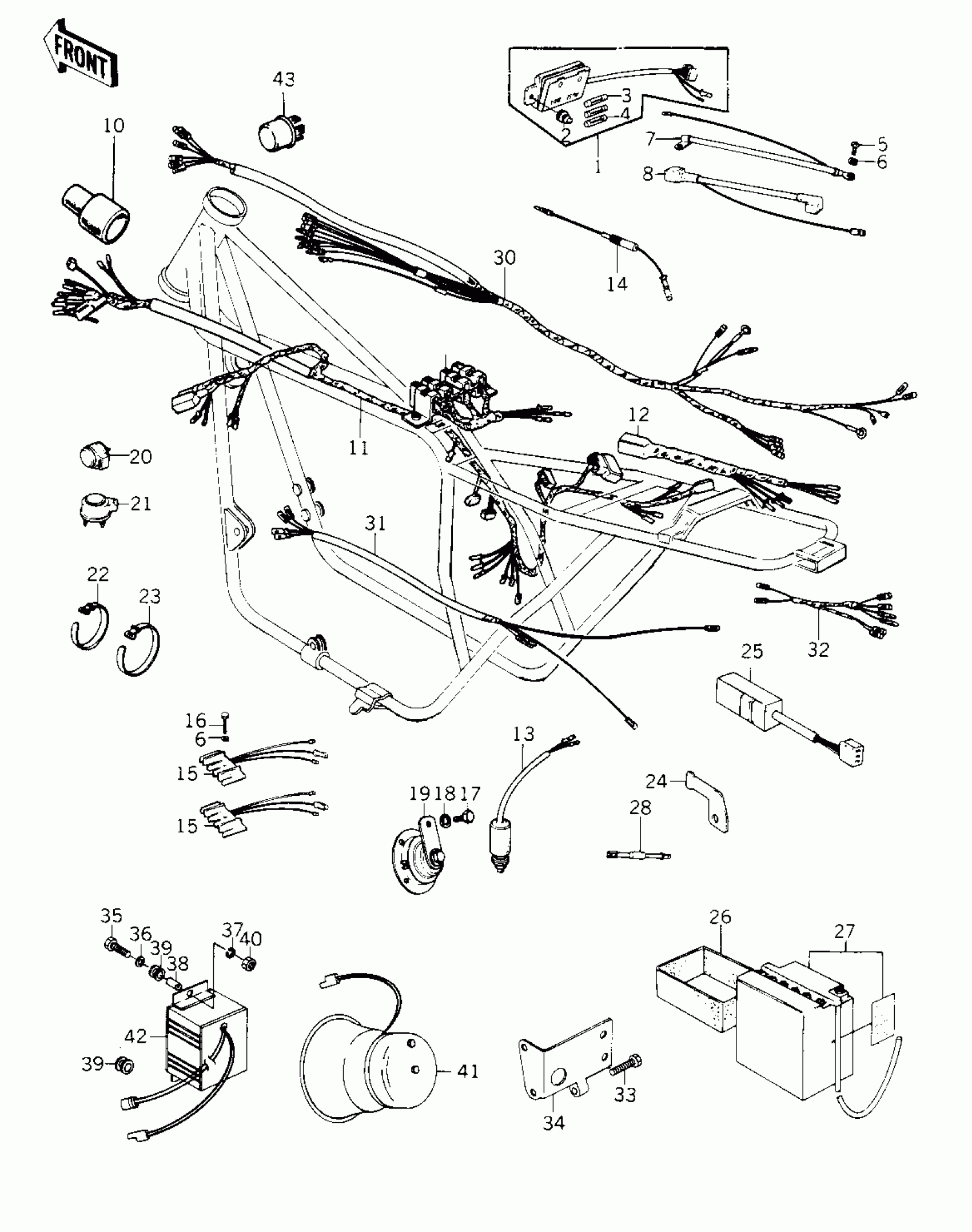

Kawasaki Police 1000 CHASSIS ELECTRICAL EQUIPMENT ('78 C1/C1A Diagram

FUSE-ASSY

DAMPER,FUSE

FUSE,20A,L=25

FUSE,10A,L=25

BOLT,6X10

WASHER SPRING 6MM

WIRE,BATTERY GROUND

WIRE,STARTER LEAD

WIRING HARNESS,CENTE

COVER WIRING HARNESS

WIRING HARNESS,MAIN

WIRING HARNESS,MAIN

WIRING HARNESS,REAR

SWITCH-BRAKE LAMP

FUSE ASSY

REGULATOR

BOLT HEX HEAD 6X40

BOLT HEX HEAD 8X16

WASHER SPRING 8MM

HORN

HORN

RELAY-ASSY,TURN SIGNAL

RELAY,TURN SIGNAL

BAND,L=123

BAND,L=123

BAND,L=186

BAND,L=186

BRACKET,OUTAGE SWITCH

SWITCH,OUTAGE,INDICTR

CASE,BATTERY

YUA BAT YB14L-A2

REGULATOR

LABEL, BATTERY CAUSON

WIRING HARNESS,MAIN

WIRING HARNESS,HAZAR

HARNESS,TAIL LAMP

BOLT,10X70

BRACKET,SIREN (OPT)

BOLT, 6 X 18

WASHER,6.5X20X1.6,WHITE

WASHER SPRING 6MM

COLLAR

DAMPER RUBBER

NUT 6MM

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

RELAY,TURN SIGNAL
