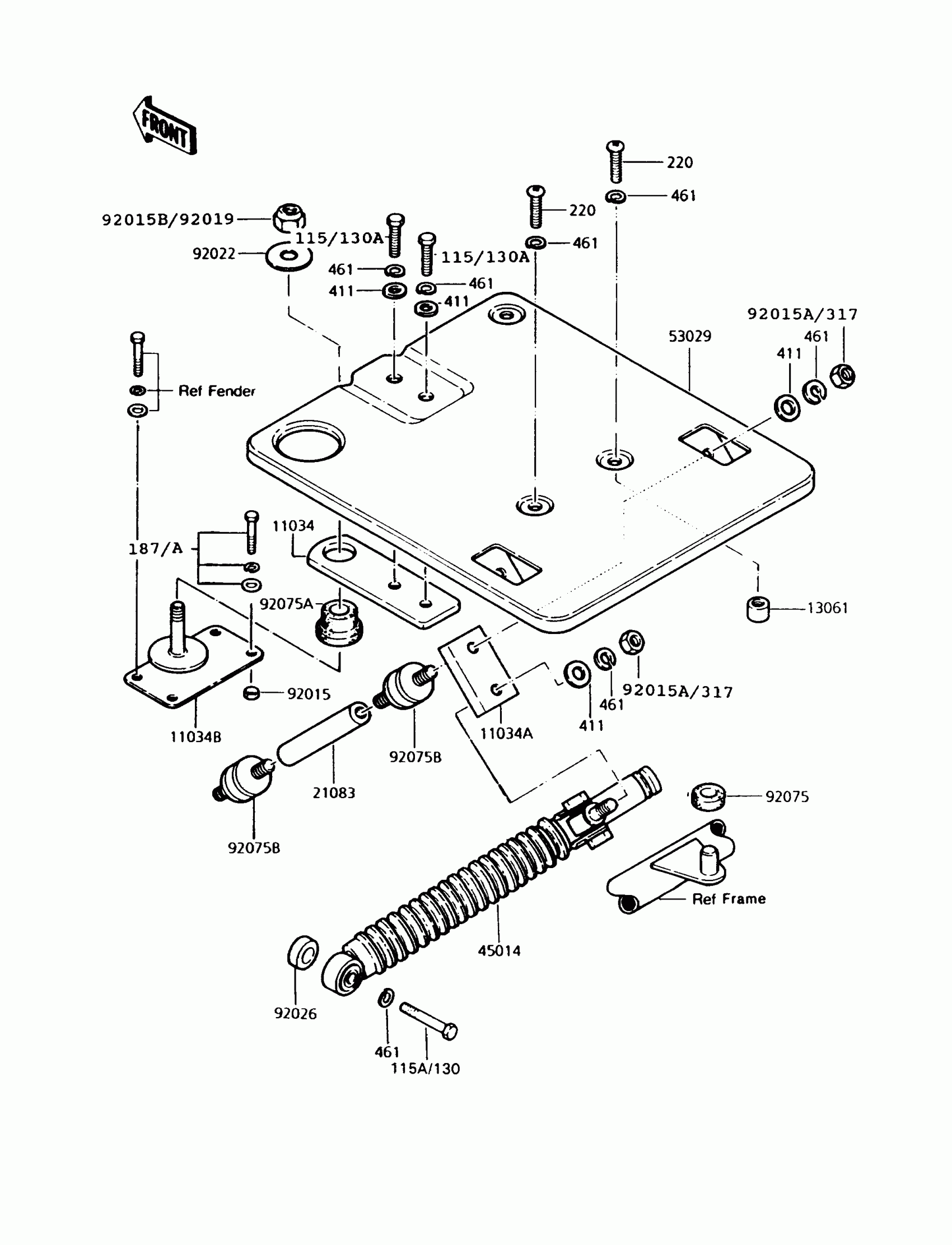

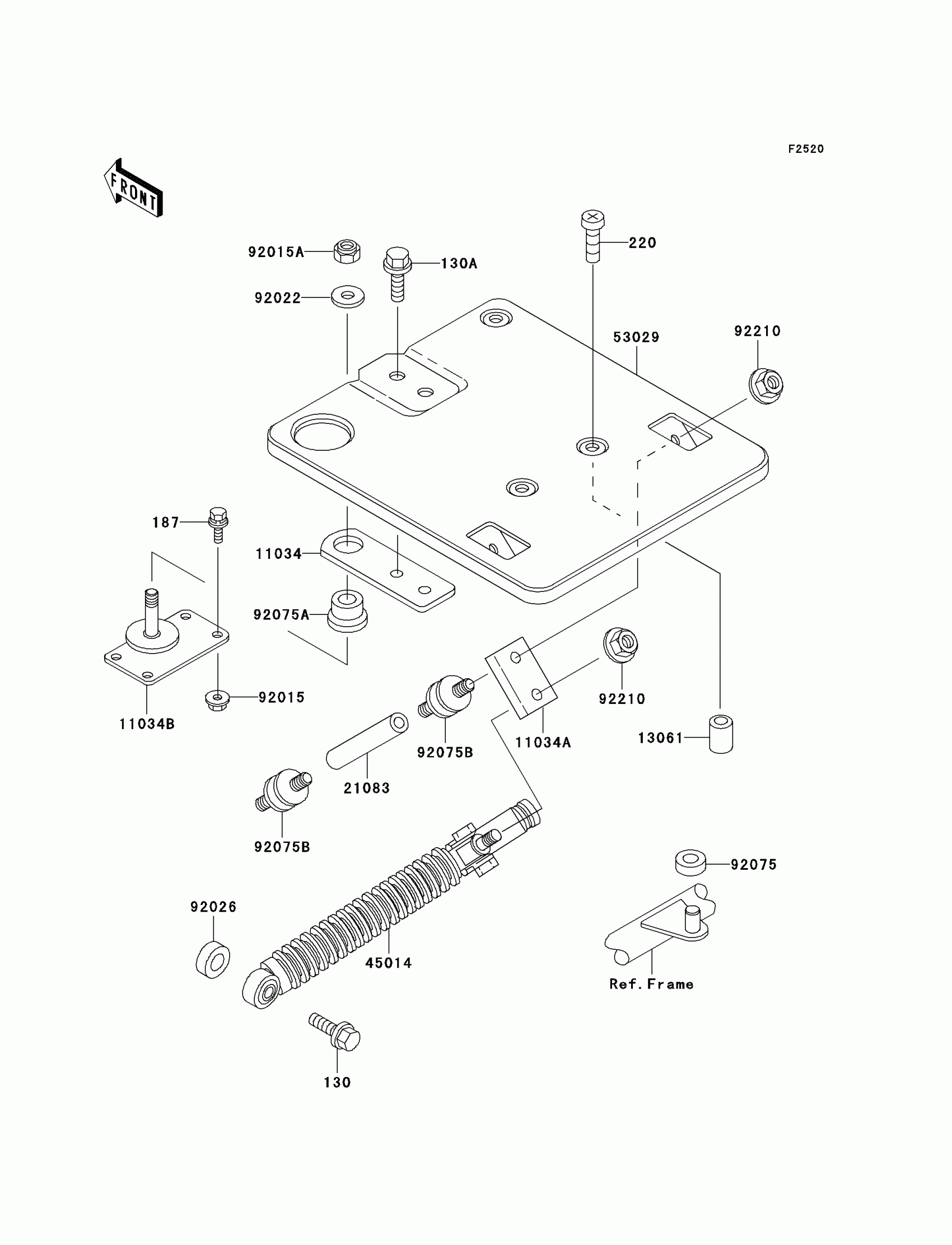

Kawasaki Police 1000 Carrier(s) Diagram

Description

Price

11034

BRACKET,CARRIER,FR

11034-4034

$36.95

11034A

BRACKET,CARRIER SIDE DAMPER

11034-4103

$8.60

11034B

BRACKET,FR CARRIER DAMPER

11034-4159

$46.62

13061

BOSS,CARRIER SPACER

13061-4005

$2.88

21083

ARM,CARRIER DAMPER

21083-4006

$57.44

45014

SHOCKABSORBER,RR

45014-4005

Unavailable

53029

CARRIER

53029-4002

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,FLANGED,8MM,BLACK

92015-1183

$5.38

92015B

NUT,LOCK,12MM,BLACK

92015-1190

$7.34

92022

WASHER

92022-4002

$13.75

92026

SPACER

92026-4003

$0.85

92075

DAMPER

92075-203

$7.97

92075A

DAMPER,CARRIER

92075-4006

$28.79

92075B

DAMPER,CARRIER

92075-4040

$25.27

130

BOLT-FLANGED

130C0835

Unavailable

130A

BOLT-FLANGED,8X16

130J0816

$1.66

187A

BOLT-UPSET-WSP,6X22

187C0622

$4.88

220

SCREW-PAN-CROS,8X14

220B0814

$4.15
