CARBURETOR PARTS ('78 C1/C1A)

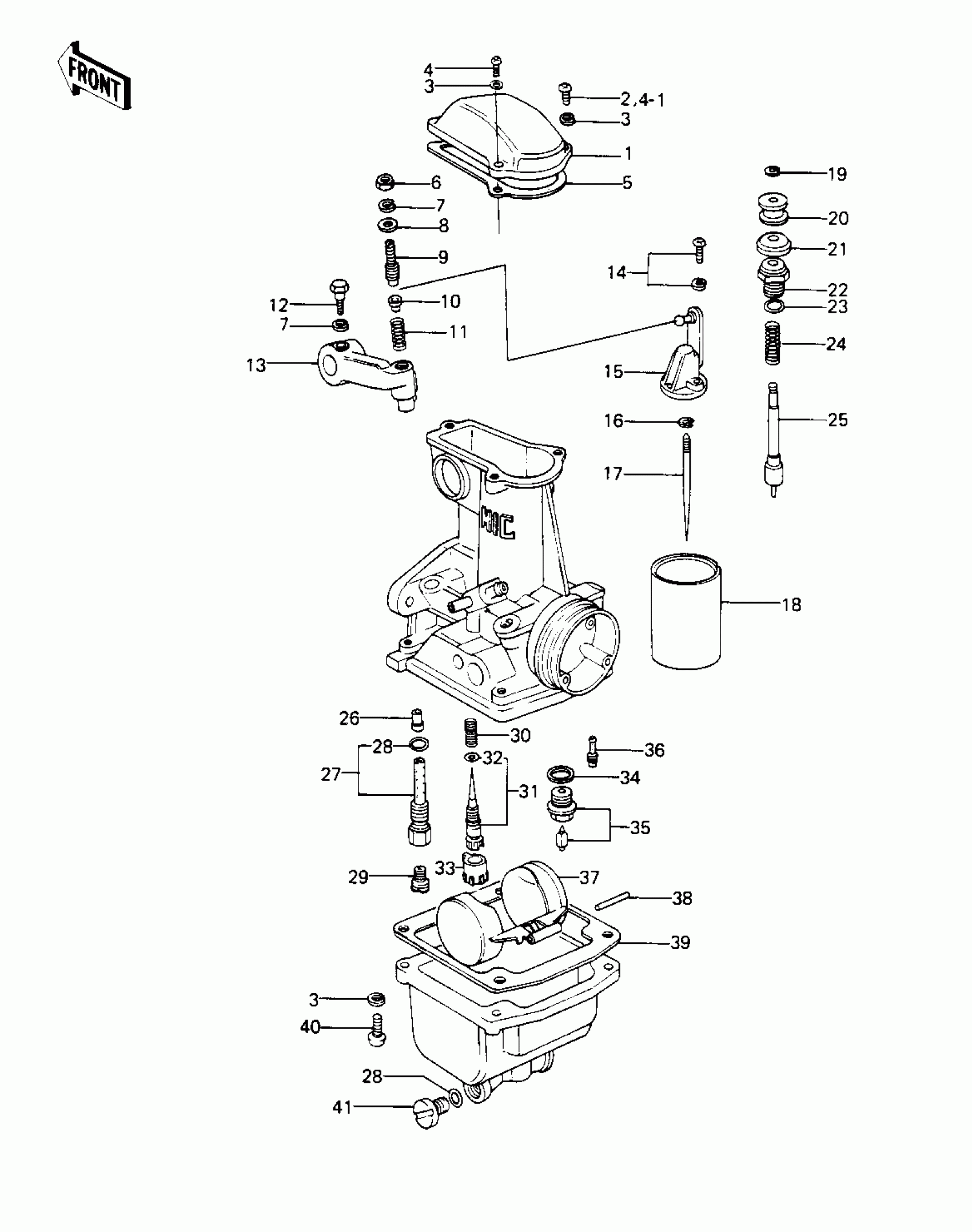

Kawasaki Police 1000 CARBURETOR PARTS ('78 C1/C1A) Diagram
#
1
TOP,MIXING CHAMBER
16005-027
$24.02
2
SCREW PAN HEAD 4X16
220B0416
$1.66
3
WASHER SPRING 4MM
461F0400
Unavailable
4
SCREW-PAN-WS-CROS
223B0414
$1.52
4-1
SCREW-PAN-WS-CROS
223B0414
$1.52
5
GASKET,CHAMBER TOP
16019-031
$43.53
6
NUT,5MM
16003-013
$9.40
7
WASHER SPRING 5MM
461F0500
$0.69
8
WASHER,PLAIN
16039-016
Unavailable
9
SCREW,SLOTTED
16046-012
Unavailable
10
SEAT-SPRING
16057-002
Unavailable
11
SPRING
16040-026
$6.62
12
BOLT,HEX HEAD,5X14
16067-006
Unavailable
13
LEVER,THROTTLE
39075-1001
Unavailable
14
SCREW,PAN HEAD,3X14
16033-031
Unavailable
15
BRACKET,THROTTLE VAL
16007-028
$59.43
16
CLAMP,E-TYPE
16008-010
$9.21
17
JET NEEDLE
16009-074
Unavailable
17
JET NEEDLE,5DL3
16009-071
Unavailable
18
VALVE,THROTTLE,CA1.5
16025-085
$86.66
19
CIRCLIP
16076-003
$8.92
20
COLLAR
16073-014
$10.47
21
CAP,STARTER PLUNGER
16039-015
$6.88
22
CAP,STARTER PLUNGER
16012-015
Unavailable
23
O RING,9MM
670B1509
$3.65
24
SPRING,STARTER PLUG
16013-008
Unavailable
25
PLUNGER,STARTER
16016-021
Unavailable
26
NEEDLE JET,O-6
16017-097
Unavailable
26
NEEDLE JET,AO-5
16017-1034
Unavailable
27
PIPE,BLEED
16047-006
Unavailable
28
"0" RING,MAIN JET COV
16038-016
$3.02
29
JET-MAIN NO 107.5R
92063-073
$15.74
29
MAIN JET,#A102.5
92063-1028
$17.74
29
MAIN JET,#A105R
92063-1042
$15.74
29
MAIN JET,#110R
92063-1038
$16.50
29
JET-MAIN NO 112.5R
92063-075
$15.42
29
JET-MAIN NO 112.5R
92063-075
$15.42
29
JET-MAIN NO 107.5R
92063-073
$15.74
29
MAIN JET,#110R
92063-1038
$16.50
29
MAIN JET,#A102.5
92063-1028
$17.74
29
MAIN JET,#A100
92063-1033
$26.79
30
SPRING,PILOT SCREW
16022-016
$9.10
31
SCREW,PILOT ADJUSTING
16014-018
Unavailable
32
"O" RING
16038-024
$1.56
33
CAP,LIMTTER
16012-022
Unavailable
34
WASHER FLOAT VLV SEAT
16029-004
$3.89
35
FLOAT VALVE ASSY
16030-027
Unavailable
36
PILOT JET,#17.5
92064-042
Unavailable
36
JET-PILOT NO.15
92064-1003
Unavailable
37
FLOAT
16031-031
$172.74
38
PIN,FLOAT
16032-003
$6.57
39
GASKET,FLOAT CHAMBER
11009-1563
Unavailable
40
SCREW PAN HEAD 4X16
220B0416
$1.66
41
SCREW,GUIDE
16049-007
Unavailable
