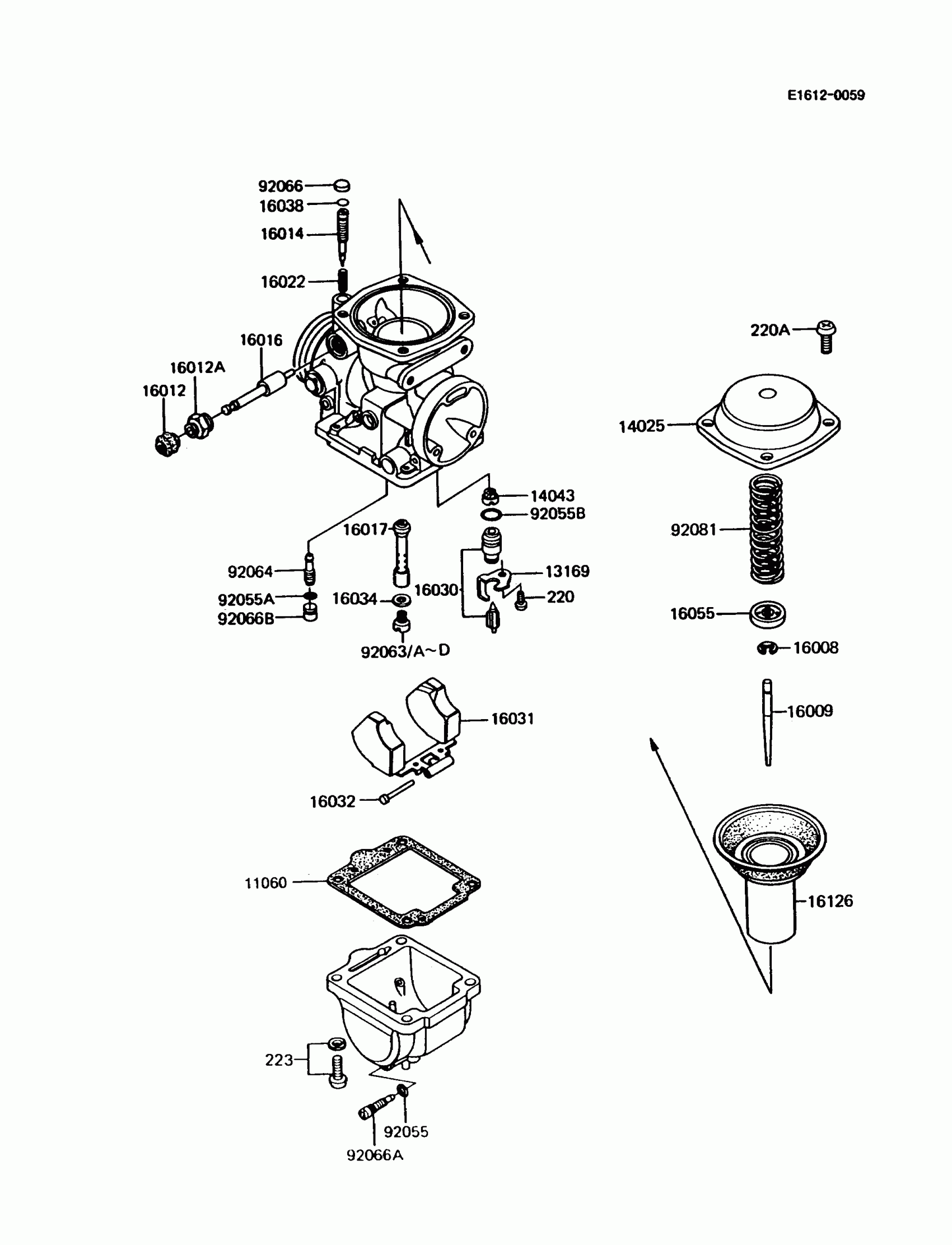

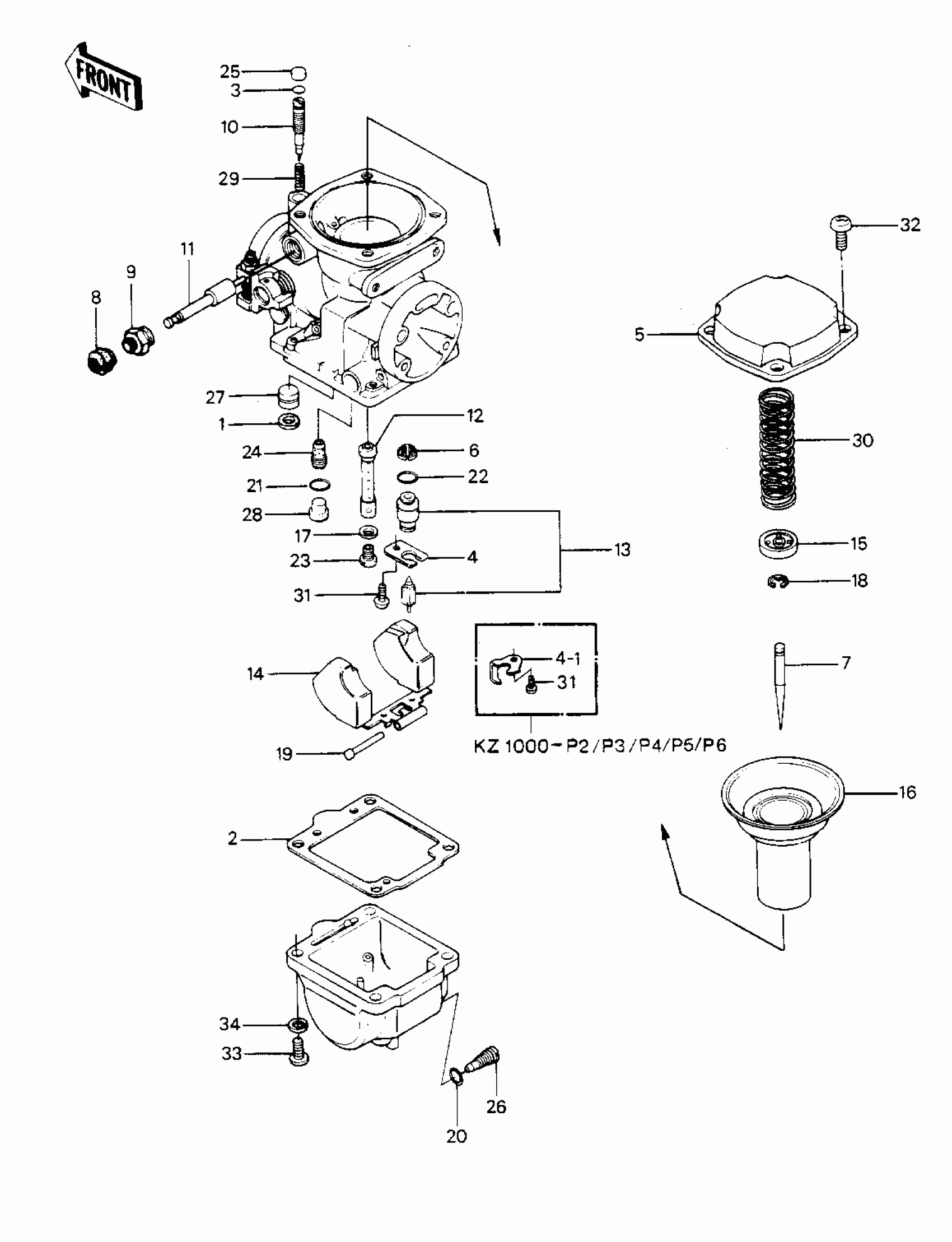

Kawasaki Police 1000 CARBURETOR PARTS Diagram

#

Description

Price

1

GASKET,CARB. PLUG

11009-1240

Unavailable

2

GASKET,FLOAT CHAMBER

11009-1241

Unavailable

3

GASKET,"O"RING

16038-022

Unavailable

4

PLATE, LOCK

13169-1190

Unavailable

4-1

PLATE,FLOAT VALVE

13169-1482

Unavailable

5

TOP-CHAMBER,MIXING

14025-1359

Unavailable

5

TOP-CHAMBER,MIXING

14025-1395

Unavailable

6

FILTER,FLOAT VALVE

14043-1010

Unavailable

7

NEEDLE-JET

16009-1085

Unavailable

7

NEEDLE-JET,5GN45

16009-1285

Unavailable

8

CAP-STARTER PLUNGER,RUBBER

16012-1010

Unavailable

9

CAP-STARTER PLUNGER

16012-1011

Unavailable

10

SCREW-PILOT AIR

16014-1014

Unavailable

11

PLUNGER

16016-1019

Unavailable

12

JET-NEEDLE,#AY-1

16017-1086

Unavailable

13

VALVE-FLOAT,2.5

16030-1016

Unavailable

14

FLOAT

16031-1013

Unavailable

15

PLATE,NEEDLE

16055-010

Unavailable

16

DIAPHRAGM,VALVE

43028-1025

Unavailable

16

VALVE,DIAPHRAGM

16126-1055

Unavailable

16

VALVE,DIAPHRAGM

16126-1149

Unavailable

17

WASHER,MAIN JET

16034-001

Unavailable

18

CLAMP,E-TYPE

16008-014

Unavailable

19

PIN,FLOAT

16032-008

Unavailable

20

RING-O

92055-044

Unavailable

21

"O" RING,CHECK VALVE

92055-1059

Unavailable

22

RING-O

92055-1105

Unavailable

23

JET-MAIN,#A122.5

92063-1101

Unavailable

23

JET-MAIN,#A127.5

92063-1100

Unavailable

23

JET-MAIN,#117.5

92063-1107

Unavailable

23

JET-MAIN,#A120

92063-1106

Unavailable

23

JET-MAIN,#A125

92063-1102

Unavailable

23

JET-MAIN,#A130

92063-1103

Unavailable

23

JET-MAIN,#A132.5

92063-1104

Unavailable

24

JET-PILOT,#A37.5

92064-1036

Unavailable

25

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

Unavailable

26

PLUG,DRAIN

92066-1064

Unavailable

27

PLUG,CARBURETOR

92066-1086

Unavailable

28

PLUG,PILOT JET

92066-1087

Unavailable

29

SPRING,PILOT SCREW

16022-016

Unavailable

30

SPRING,DIAPHRAGM VALVE

92081-1363

Unavailable

31

SCREW PAN HEAD 4X6

220B0406

Unavailable

32

SCREW PAN HEAD 5X10

220B0510

Unavailable

32

SCREW PAN HEAD 5X8

220B0508

Unavailable

33

SCREW-PAN-CROS

220B0514

Unavailable

34

WASHER SPRING 5MM

461F0500

Unavailable

35

SCREW-PAN-WS-CROS

223B0518

Unavailable
