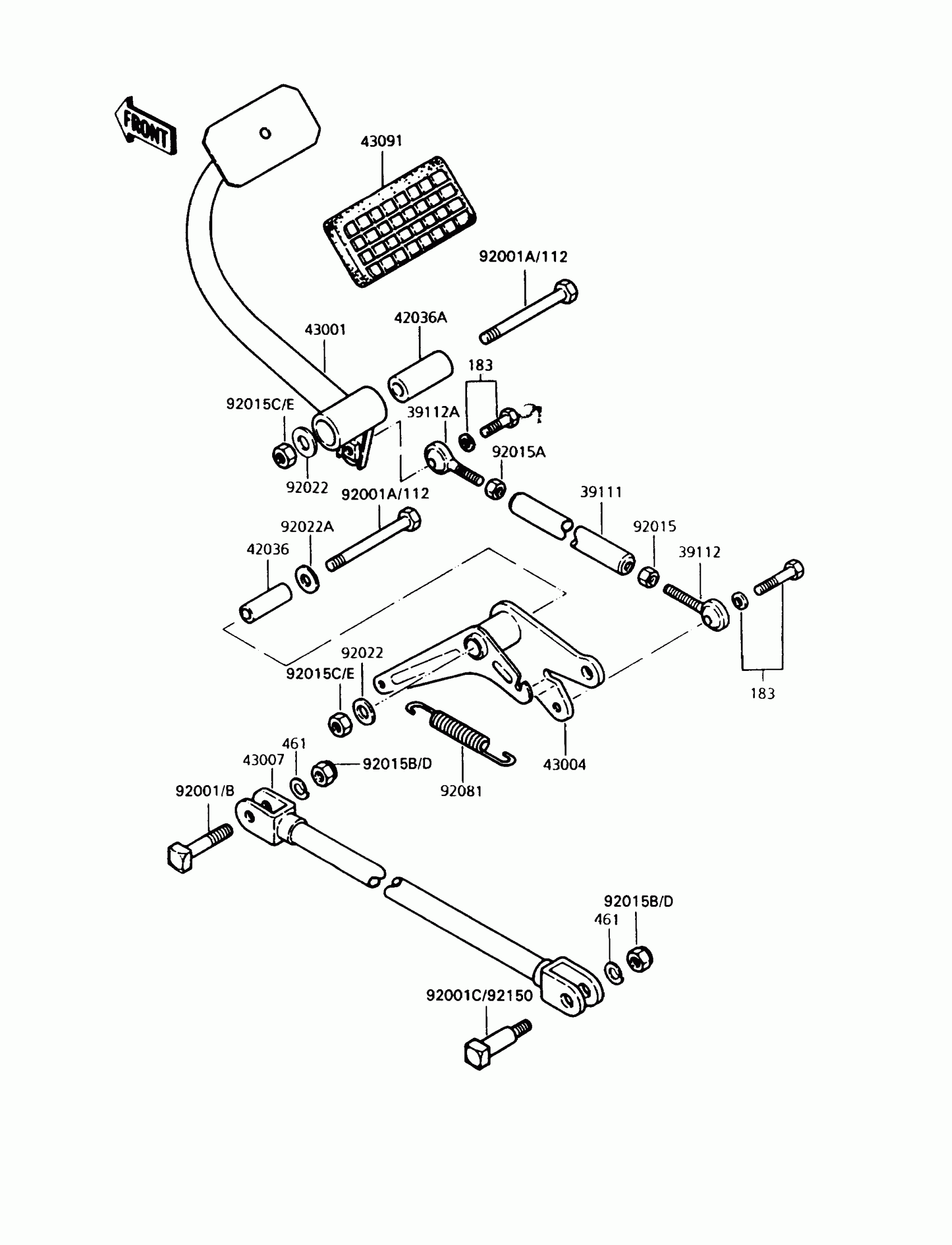

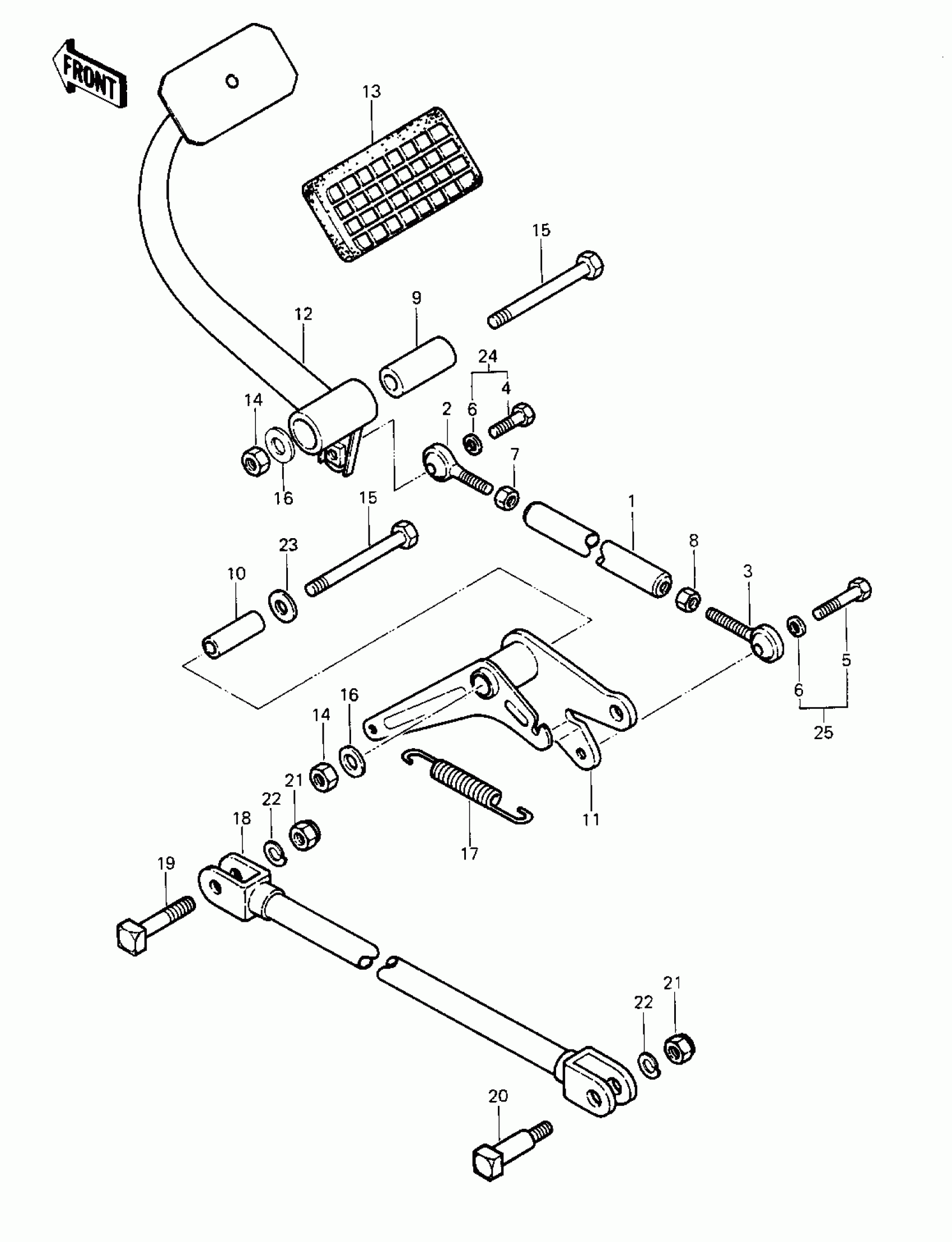

Kawasaki Police 1000 BRAKE PEDAL/TORQUE LINK Diagram

#

Description
Price

1

ROD-TIE,L=360

39111-4002

Unavailable

2

RODEND-TIE,LH THREAD

39112-1002

Unavailable

3

RODEND-TIE,RH THREAD

39112-1001

Unavailable

4

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

5

BOLT-SMALL-UPSET

115G0835

Unavailable

6

WASHER SPRING 8MM

461F0800

Unavailable

7

NUT,LH THREAD

92015-1006

Unavailable

8

NUT,RH THREAD

92015-1005

Unavailable

9

SLEEVE,CHANGE LEVER

42036-4006

Unavailable

10

SLEEVE

42036-4005

Unavailable

11

SHAFT-BRAKE,PEDAL

43004-4002

Unavailable

12

LEVER-BRAKE,PEDAL

43001-4013

Unavailable

12

LEVER-BRAKE,PEDAL

43001-4015

Unavailable

13

RUBBER,BRAKE PEDAL

43091-002

Unavailable

14

NUT,LOCK,10MM

92019-021

Unavailable

15

BOLT-SMALL-FINE,10X85

113G1085

Unavailable

16

WASHER,10.5X26X2.3

92022-044

Unavailable

17

SPRING,BRAKE PEDAL

92081-1296

Unavailable

18

ROD-TORQUE,RR

43007-1015

Unavailable

19

BOLT,10X45

92001-1208

Unavailable

20

BOLT,10X37

92001-1307

Unavailable

21

NUT,10MM

92015-1429

Unavailable

21

NUT,10MM

92015-1429

Unavailable

22

WASHER SPRING 10MM

461F1000

Unavailable

23

WASHER,10.5X22X4.5

92022-1022

Unavailable

24

BOLT-UPSET-WS-SMALL

183G0825

Unavailable

25

BOLT-UPSET-WS-SMALL

183G0835

Unavailable
