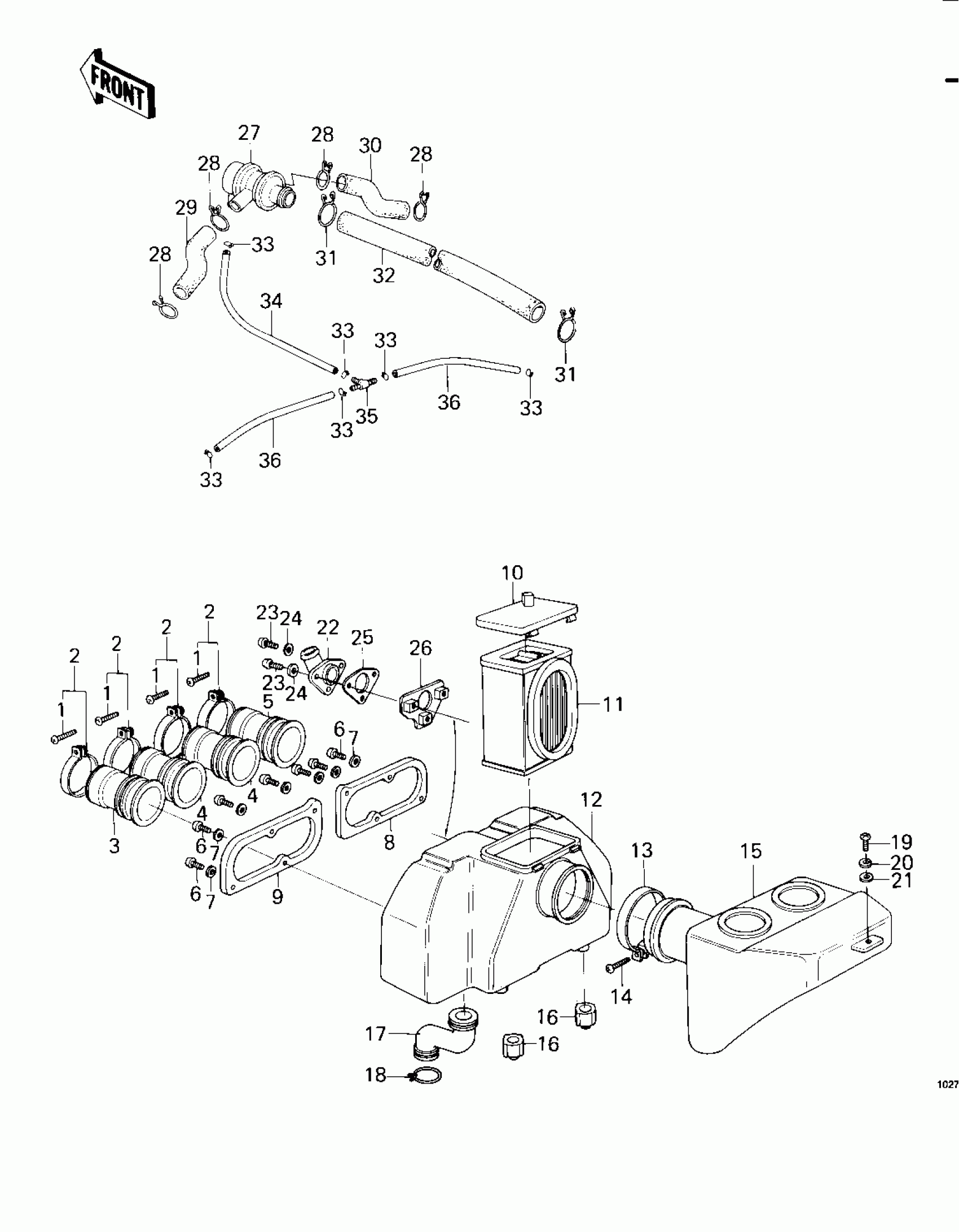

Kawasaki Police 1000 AIR CLEANER ('79-'81 C2/C3/C4) Diagram

#

Description
Price

1

SCREW,PAN HEAD

92011-037

Unavailable

2

CLAMP-INLET PIPE

92037-061

$17.74

3

DUCT,AIR CLEANER,#1

14073-1022

$46.25

4

DUCT,AIR CLEANER,#2,

14073-1023

$46.25

5

DUCT,AIR CLEANER,#4

14073-1024

$46.25

6

SCREW-PAN-CROS

220C0412

$1.04

7

WASHER,PLAIN,4M/M

92022-1041

$4.36

8

PLATE,CARBURETOR HOL

11040-003

Unavailable

9

PLATE,CARBURETOR HOL

11040-002

Unavailable

10

CAP,AIR CLEANER

11012-075

Unavailable

11

ELEMENT,AIR CLNR

11013-063

$39.90

12

BODY,AIR CLEANER

11011-1012

Unavailable

13

CLAMP

92037-106

Unavailable

14

BOLT,5X50

92011-036

Unavailable

15

SILENCER

39161-1001

Unavailable

16

CAP,DRAIN

11012-1083

Unavailable

17

TUBE,DRAIN

92059-124

Unavailable

18

CLAMP BREATHER PIPE

92037-028

Unavailable

19

SCREW-PAN-CROS,6X16

220B0616

Unavailable

20

WASHER SPRING 6MM

461F0600

Unavailable

21

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

22

FITTING

92005-1007

$8.44

23

SCREW-PAN-CROS,6X16

220B0616

Unavailable

24

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

25

GASKET

11009-1054

Unavailable

26

HOLDER

13091-1020

Unavailable

27

VALVE,AIR SWITCH

16126-1014

$200.34

28

CLAMP,TUBE

92037-213

$4.31

29

TUBE

92059-1065

Unavailable

30

TUBE

92059-1066

Unavailable

31

CLAMP,TUBE

92037-1076

$7.22

32

TUBE,19 X25 X330M/M

92059-1067

Unavailable

33

CLAMP,TUBE

92037-072

$7.22

34

TUBE,VACUUM,LONG

92059-1162

$14.74

35

FITTING,TUBE,T-TYPE

92005-1017

$10.29

36

TUBE,VACUUM,LONG

92059-1162

$14.74
