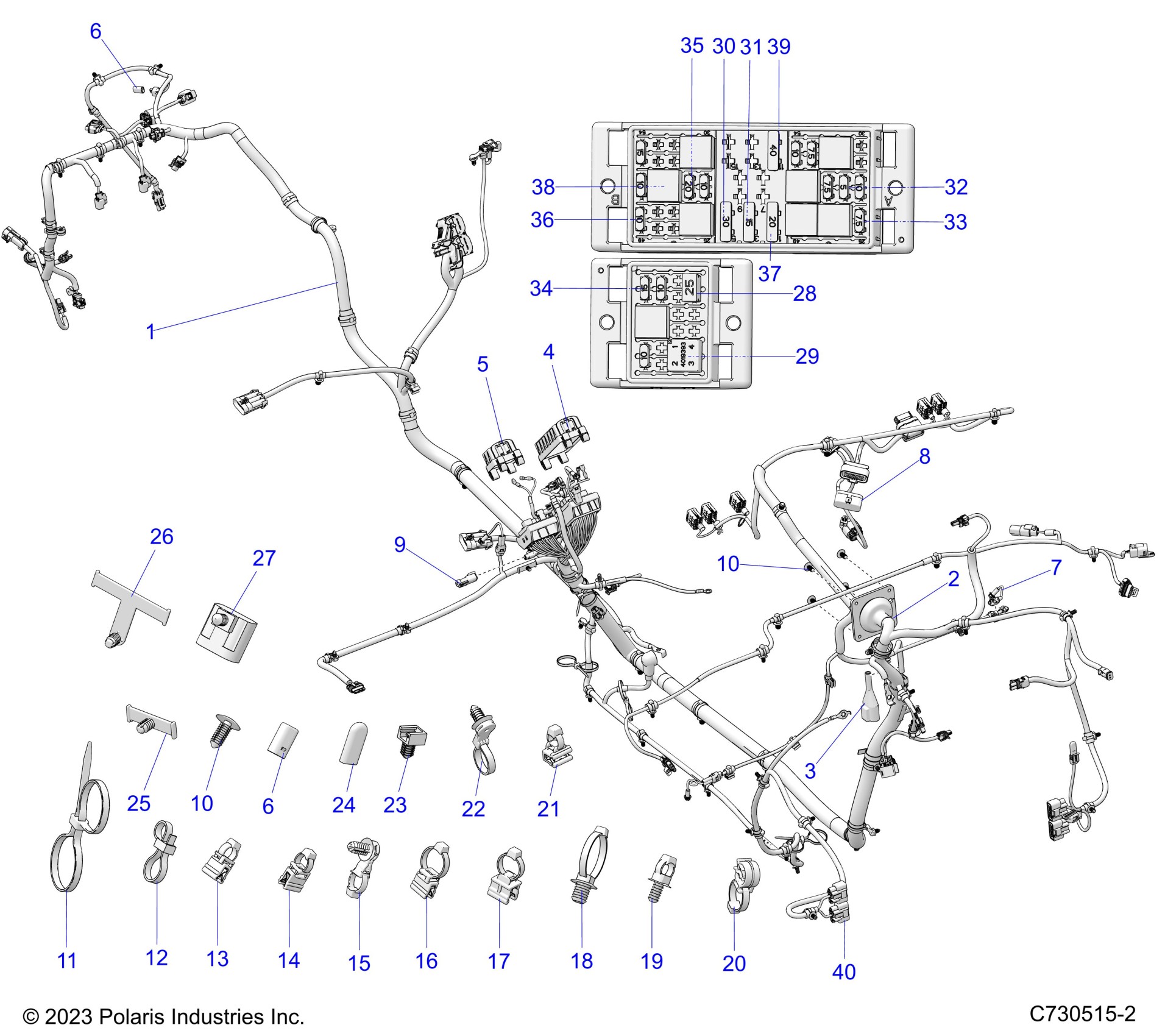

Polaris POLARIS XPEDITION XP5 ULTIMATE (R01) - G24G5K99AB/AH/BB/BH ELECTRICAL, HARNESS-CHASSIS - G24G5K99A/99B (C730515) Diagram

#

Description
Price

1

HARN-CHASSIS,5P [INCLUDES 2-39] [TO 4/22/2024]

2417058

$1,522.39

1

HARN-CHASSIS,5P [INCLUDES 2-39] [FROM 4/22/2024]

2417876

Unavailable

2

GROMMET - 65MM, W/FLANGE, BLK

5814560

$12.79

3

THROTTLE-CON BOOT

4080238

$8.79

4

COVER-PDM,BASE

-------

Unavailable

5

COVER-PDM, BASE, 2

4080285

$35.99

6

CAP EVAP CONNECTOR

4018066

$3.99

6

CAP EVAP CONNECTOR

4018066

$3.99

7

LED-PANEL MNT,12V,BLUE

2416797

$55.99

8

CAP-EVAP CONNECTOR

4018655

$3.99

9

DIODE-2 AMP

2415626

$14.39

10

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

10

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49

11

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

12

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$3.99

13

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59

14

CLIP, EDGE, HARNESS

7081890

$10.39

15

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

16

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

17

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

18

CLIP-FIR TREE,9.7-10.0MM HOLE

7082414

$3.99

19

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

20

CLIP-OMEGA,CABLE,4-10MM DIA

7082744

$2.39

21

CLIP-EDGE,1-3MM THICKNESS

7082401

$7.91

22

CLIP OFFSET 12.5MM FIRTREE(BK)

7082458

$4.39

23

CLIP-CONNECTOR,GREY

4018311

$3.51

24

CAP - VINYL, 125X375, BLACK

5438230

$5.59

25

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

26

CLIP-XMAS, 31MM OFFSET, TAPE-ON

7082412

$3.19

27

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

28

BREAKER-CIRCUIT,ETA,TI,25A, MINI

4080367

$39.99

29

SSR-4PIN

4019393

$103.99

30

FUSE-ATC 30 AMP

4017557

$35.99

31

FUSE, 15 AMP

4011682

$7.19

32

FUSE-5A,MINI BLADE

4011652

Unavailable

33

FUSE - 7.5, MINI BLADE (BROWN)

4011068

Unavailable

34

FUSE-15AMP,MINI BLADE

4010859

$7.19

35

FUSE-PARK,20 AMP

2434017

Unavailable

36

FUSE-IGNITION,10 AMP

2434016

$4.79

37

FUSE, 20 AMP

4011683

$8.79

38

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

39

FUSE, ATC 40 AMP

4012421

$31.99

40

HARN-900W,AC,5P

2415319

$163.99
