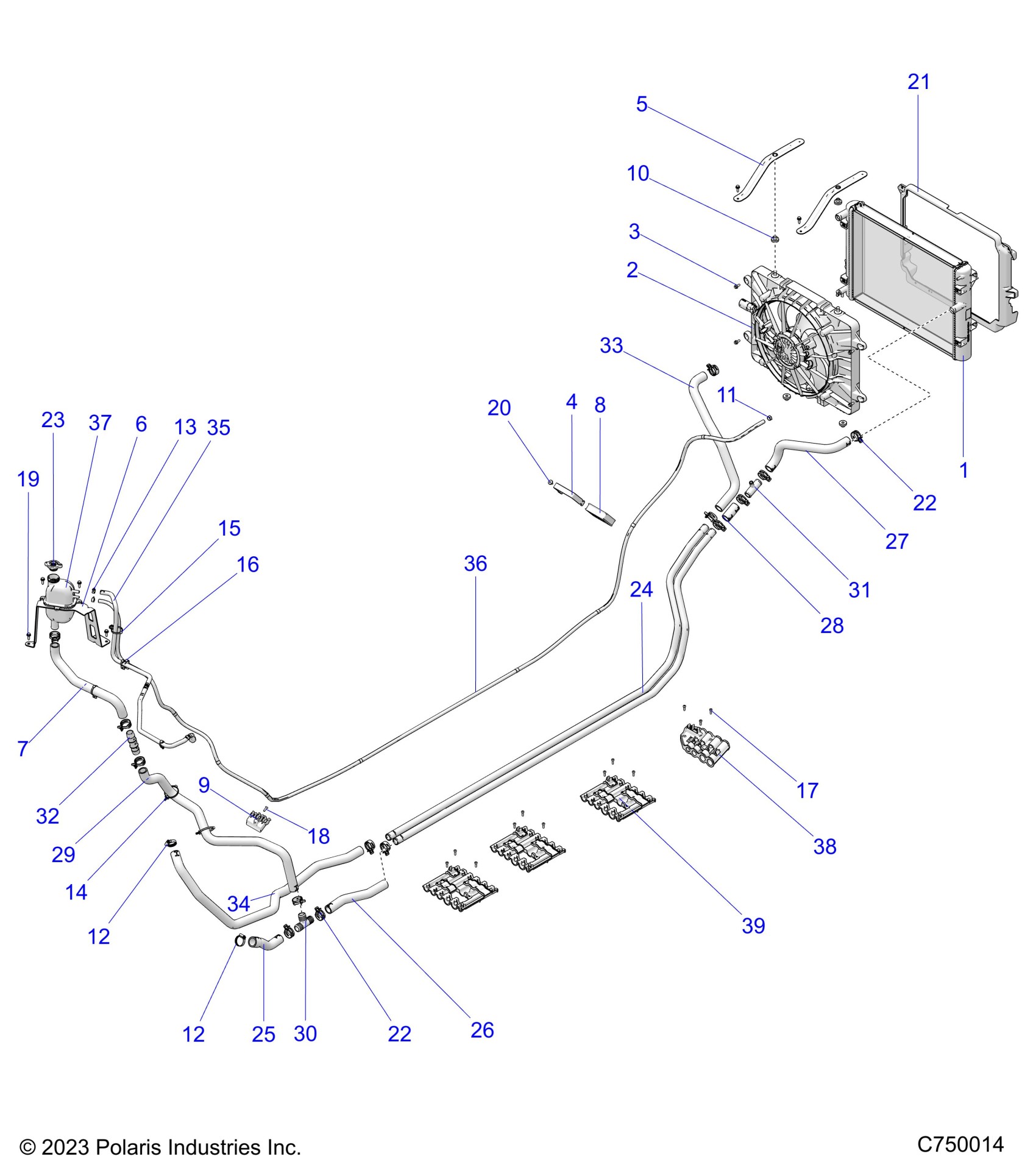

Polaris POLARIS XPEDITION XP5 NORTHSTAR (R02) - G24G5W99AB/AH/BB/BH ENGINE, COOLING - G24G5W99A/99B (C750014) Diagram

ASM-RADIATOR,CORE,HVAC

1241447

$460.19

FAN-ASSEMBLY,HVAC

2415296

$491.39

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

BRKT-ROUTING GROMMET,BLK

5269611-329

$10.55

BRKT-RADIATOR MOUNT,HVAC,ECOAT

5269919-329

$11.43

BRKT-COOLANT BOTTLE,ECOAT

5272723-329

$55.99

HOSE-BOTTLE TO SPLICE,TILT

5418143

$27.99

GROMMET-ROUTING

5418786

$23.99

CLIP-ROUTING,COOLANT-VENT

5458510

$3.99

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

HOSE CLAMP, RED

7080003

$1.49

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$27.99

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

SCR-M6X1X16 TR/TX-M

7518936

$3.99

SHROUD-RADIATOR,HVAC

5456828

$39.99

SPRINGBAND-CLAMP,BLK

7082308

$5.59

SPRINGBAND-CLAMP,BLK

7082308

$5.59

CAP-PRESSURE

1241379

$35.99

TUBE-COOLANT,1" MP

5143304

$67.99

HOSE-ENG INLET,REAR

5417283

$23.99

HOSE-ENG INLET,FRT

5417321

$23.99

HOSE-COOLANT,HVAC,TEE,UPPER

5417455

$23.99

HOSE-COOLANT,HVAC,TEE,LOWER

5417456

$5.59

HOSE-SPLICE TO TEE

5418141

$27.99

CONNECTOR-TEE,1",1",1" BARBED

7052373

$10.39

CONNECTOR-TEE,1X1X0.5

7052530

$5.59

CONNECTOR-1" SPLICE,BARBED

7055611

$3.99

HOSE-UPPER, RADIATOR,HVAC

5417280

$39.99

HOSE-ENGINE OUTLET

5418807

$39.99

ASM-COOLANT HOSE,VENTED

1244795

$47.99

ASM-VENT LINE,MP

2522363

$35.99

ASM-TANK,SURGE

1244655

$91.99

TRAY-ROUTING,FRONT,BLK

5465649-070

$27.99

TRAY-ROUTING,RH,BLK

5465540-070

$19.99
