Description

Price

1

CABLE-PULSE [INCLUDES 2-6]

4019177

$131.99

2

CLIP-FIR TREE,9.7-10.0MM HOLE

7082414

$3.99

3

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

4

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

4

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

4

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

5

BOOT, BATTERY, RED

4011723

$7.99

5

BOOT, BATTERY, RED

4011723

$7.99

5

BOOT, BATTERY, RED

4011723

$7.99

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

7

COVER-FUSEHOLDER

4080187

$10.39

8

CABLE-POWER,ALT,5P [INCLUDES 4-6 & 9-11]

4081520

$263.99

9

XMAS, M6, OFFSET

7083004

$3.19

10

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

11

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

12

CABLE-POWER,STARTER,5P [INCLUDES 5-6 & 13]

4081516

$131.99

13

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

14

ASM-FUSEHOLDER,BATT,TERM

4080188

$87.99

15

CABLE-POWER,BATT,START [INCLUDES 16 & 17]

4081518

$35.99

16

CAP-CABLE, RED

5418245

$5.59

17

COVER-BATT,TERM,B+

5417986

$6.39

18

CABLE-GROUND,BATTERY

4081830

$51.99

19

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

19

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

20

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

21

BATTERY-575 CCA,FLOODED,FILLED

4014132

Unavailable

21

BATTERY-HD,AGM,SEALED,R2 [HD OPTION]

4081855

$183.99

22

BRKT-BATTERY,ECOAT

5272087-329

$10.39

23

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

23

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

24

STRAP-BATTERY,STD

5273478

$19.99

25

SCR-HXFL-M8X1.25X20 TAP ZY3

7520764

$4.79

26

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

27

FUSE-MIDI,175A

4080524-175

$14.39

28

NUT-HXFL-M5X0.8 8 ZTC SPC

7548077

$12.31

29

FUSE-MEGA,225A

4080525-225

$35.99

30

NUT-HXFL-M8X1.25 8 ZPC SPC

7548084

$5.59

30

NUT-HXFL-M8X1.25 8 ZPC SPC

7548084

$5.59

31

LABEL-PDM,HVAC

7197273

$3.99

32

BRKT-SPRT,CABLE,STRTR,35DG,BLK

5465099-070

$14.39

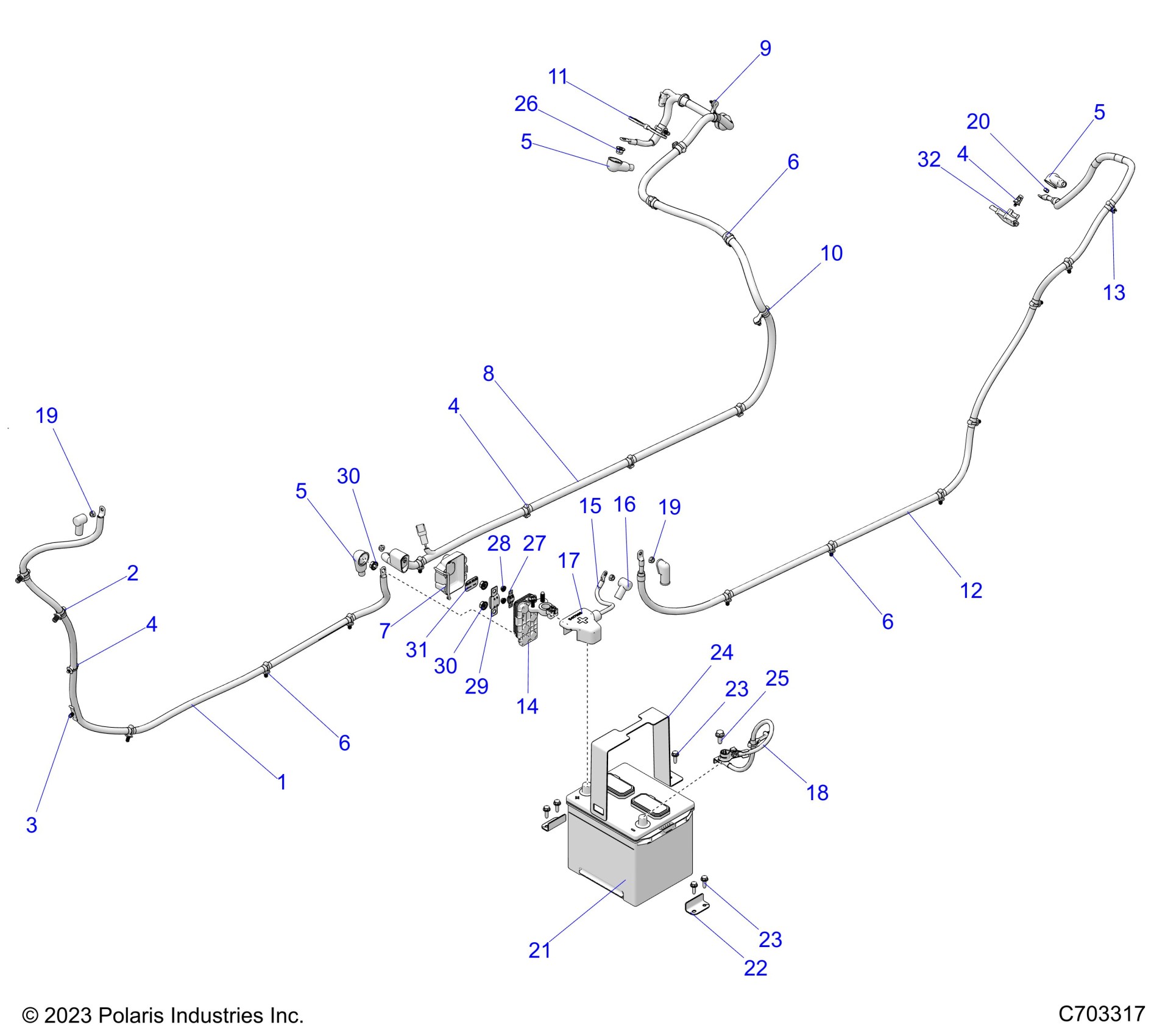

Polaris POLARIS XPEDITION XP5 NORTHSTAR (R02) - G24G5W99AB/AH/BB/BH ELECTRICAL, BATTERY/CABLES - G24G5W99A/99B (C703317) Diagram

CABLE-PULSE [INCLUDES 2-6]

CLIP-FIR TREE,9.7-10.0MM HOLE

CLIP-XMAS,6.35MM HOLE,TAPE-ON

CABLE-TIE,DIA2.5-34MM,FIR-TREE

CABLE-TIE,DIA2.5-34MM,FIR-TREE

CABLE-TIE,DIA2.5-34MM,FIR-TREE

BOOT, BATTERY, RED

BOOT, BATTERY, RED

BOOT, BATTERY, RED

CLIP FIR-TREE,DIA6-33MM

CLIP FIR-TREE,DIA6-33MM

CLIP FIR-TREE,DIA6-33MM

COVER-FUSEHOLDER

CABLE-POWER,ALT,5P [INCLUDES 4-6 & 9-11]

XMAS, M6, OFFSET

CLIP-FIR TREE,12.5MM OFF,90DEG

CABLE-TIE,DIA6-38MM,DUAL-LOOP

CABLE-POWER,STARTER,5P [INCLUDES 5-6 & 13]

CLIP-EDGE,1-3MM,6-45MM,SERT.

ASM-FUSEHOLDER,BATT,TERM

CABLE-POWER,BATT,START [INCLUDES 16 & 17]

CAP-CABLE, RED

COVER-BATT,TERM,B+

CABLE-GROUND,BATTERY

NUT-HXFLGHD, M6, SERRATED

NUT-HXFLGHD, M6, SERRATED

NUT-6MM X 1 NYLOK-Z

BATTERY-575 CCA,FLOODED,FILLED

BATTERY-HD,AGM,SEALED,R2 [HD OPTION]

BRKT-BATTERY,ECOAT

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

STRAP-BATTERY,STD

SCR-HXFL-M8X1.25X20 TAP ZY3

NUT-HXFL-M8X1.25 8 ZTB NYL

FUSE-MIDI,175A

NUT-HXFL-M5X0.8 8 ZTC SPC

FUSE-MEGA,225A

NUT-HXFL-M8X1.25 8 ZPC SPC

NUT-HXFL-M8X1.25 8 ZPC SPC

LABEL-PDM,HVAC

BRKT-SPRT,CABLE,STRTR,35DG,BLK
