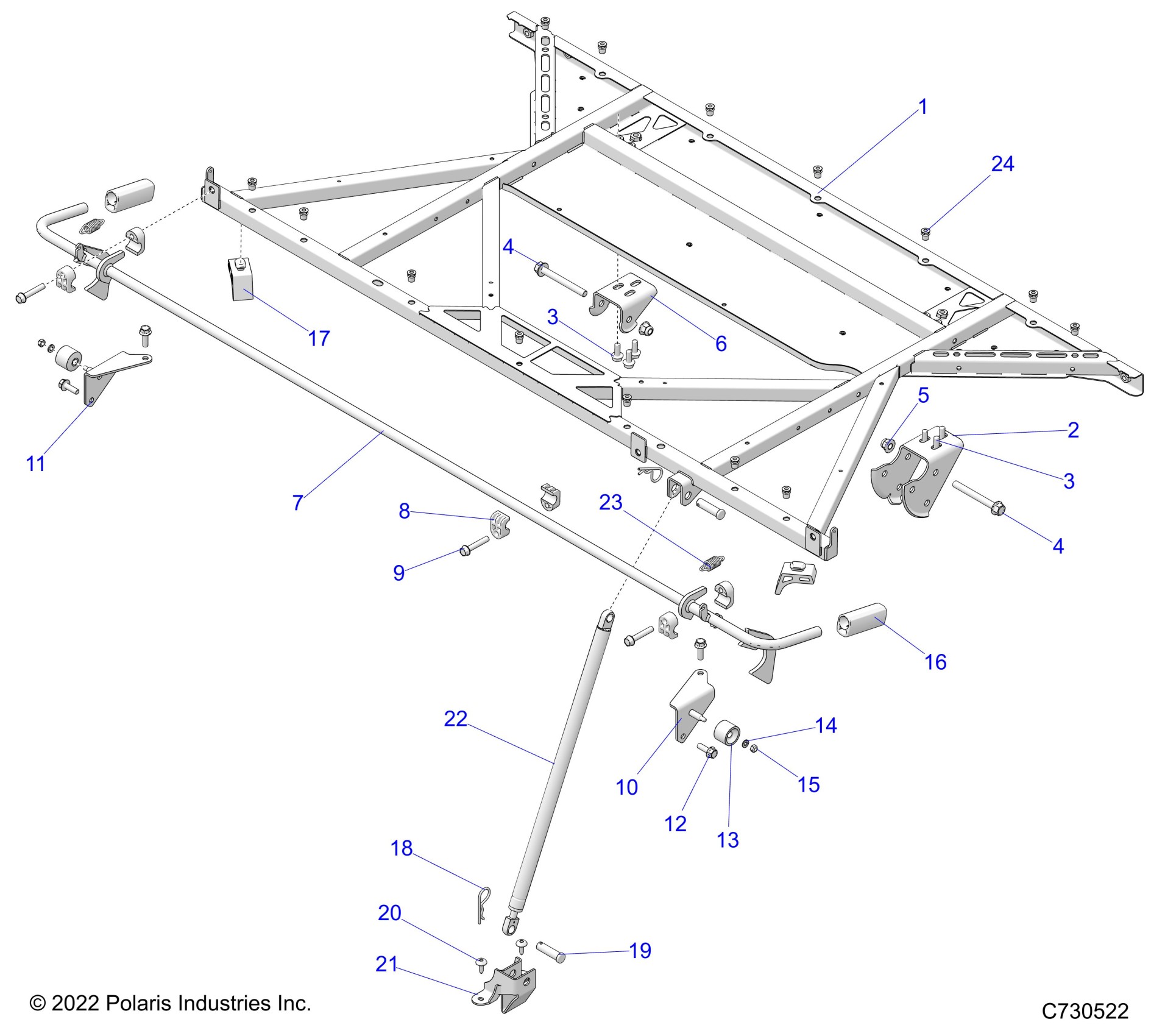

Polaris POLARIS XPEDITION XP5 NORTHSTAR (R01) - G25G5W99AB/AP/AK/BB/BP/BK BODY, BOX, MOUNTING Diagram

WELD-BOX,CARGO,TIP,BLK

1028452-458

$327.99

BRKT-HINGE,CHASSIS,TILTBOX,BLK

5273964-458

$31.99

SCR-HXFL-M8X1.25X20 10.9 ZFB

7521332-20

$3.73

SCR-HXFL-M8X1.25X20 10.9 ZFB

7521332-20

$3.73

SCR-HXFL-M10X1.5X90 10.9 ZPB

7521333-90

$1.59

SCR-HXFL-M10X1.5X90 10.9 ZPB

7521333-90

$1.59

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.39

BRKT-HINGE,CHASSIS,BLK

5271896-458

$14.07

WELD-BOX LATCH,BLK

1027724-458

$115.99

BUSHING-BOX,LATCH

5434226

$3.99

SCR-SH-M8X1.25X30 8.8 ZPC

7516732

$1.59

WELD-ROLLER,STRIKER,LH,BLK

1027193-458

$31.99

WELD-ROLLER,STRIKER,RH,BLK

1027194-458

$31.99

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

ROLLER-CAM,LATCH

5459572

$8.79

WASHER-FLAT

7556337

$1.83

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

HANDLE-BOX, LATCH

5450278

$31.99

BUMPER-CARGO BOX

5417966

$3.99

CLIP-HITCHPIN .148X3 1/16

7661067

$2.39

PIN-CLEVIS,1/2 X 1 3/4

7661878

$2.39

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

BRKT-MOUNT,BOX SHOCK, BLK

5272821-458

$31.99

SHOCK-BOX,XP [TO 01/06/2025]

7046059

Unavailable

SHOCK-BOX,XP [FROM 01/06/2025]

7046189

$83.99

SPRING-EXHAUST

7041687

$5.65

NUT-RIVNUT,HEX,M6X1.00

7547790

$3.19
