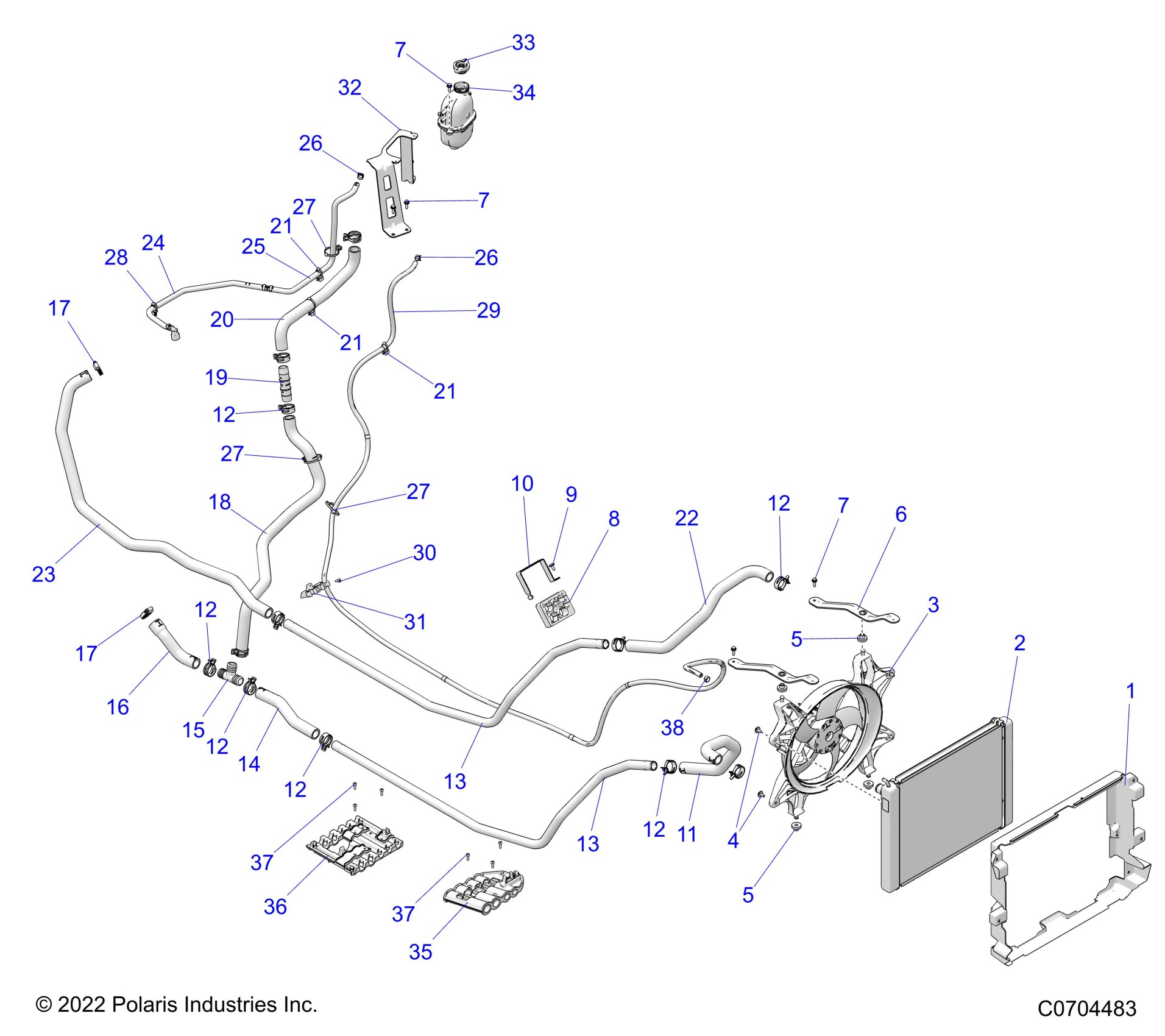

Polaris POLARIS XPEDITION XP ULTIMATE (R01) - G24G2K99AB/AH/BB/BH ENGINE, COOLING - G24G2K99A/99B (C0704483) Diagram

#

Description
Price

1

SHROUD-RADIATOR

5456827

$39.99

2

ASM-RADIATOR,CORE

1244681

$432.89

3

FAN-RADIATOR,ASM

2416113

$239.99

4

BOLT, M6X15MM

7519585

$9.59

5

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

5

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

6

BRKT-RADIATOR MOUNT,ECOAT

5273084-329

$35.99

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

7

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

8

GROMMET-ROUTING

5418786

$23.99

9

SCR-M6X1X16 TR/TX-M

7518936

$3.99

10

BRKT-ROUTING GROMMET,BLK

5269611-329

$10.55

11

HOSE-LWR,RAD,LONG

5417281

$43.99

12

SPRINGBAND-CLAMP,BLK

7082308

$5.59

12

SPRINGBAND-CLAMP,BLK

7082308

$5.59

12

SPRINGBAND-CLAMP,BLK

7082308

$5.59

12

SPRINGBAND-CLAMP,BLK

7082308

$5.59

12

SPRINGBAND-CLAMP,BLK

7082308

$5.59

12

SPRINGBAND-CLAMP,BLK

7082308

$5.59

13

TUBE-COOLANT,1"

5143303

$43.99

13

TUBE-COOLANT,1"

5143303

$43.99

14

HOSE-ENG INLET,FRT

5417321

$23.99

15

CONNECTOR-TEE,1",1",1" BARBED

7052373

$10.39

16

HOSE-ENG INLET,REAR

5417283

$23.99

17

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

17

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

18

HOSE-SPLICE TO TEE

5418141

$27.99

19

CONNECTOR-1" SPLICE,BARBED

7055611

$3.99

20

HOSE-BOTTLE TO SPLICE,TILT

5418143

$27.99

21

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$27.99

21

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$27.99

21

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$27.99

22

HOSE-UPPER,RADIATOR

5417279

$43.99

23

HOSE-ENGINE OUTLET

5418807

$39.99

24

ASM-COOLANT HOSE,VENTED [INCLUDES 24 & 25]

1244795

$47.99

24

HOSE-COOLANT,FITTING TO SPLICE

5418542

$11.99

25

HOSE-COOLANT,SPLICE TO BOTTLE

5417979

Unavailable

26

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

26

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

27

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

27

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

27

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

28

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

29

ASM-VENT LINE,2P

2522362

$31.99

30

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

31

CLIP-ROUTING,COOLANT-VENT

5458510

$3.99

32

BRKT-COOLANT BOTTLE,ECOAT

5272723-329

$55.99

33

CAP-PRESSURE

1241379

$35.99

34

ASM-TANK,SURGE

1244655

$91.99

35

TRAY-ROUTING,FRONT,BLK

5465649-070

$27.99

36

TRAY-ROUTING,RH,BLK

5465540-070

$19.99

37

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

37

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

38

HOSE CLAMP, RED

7080003

$1.49
