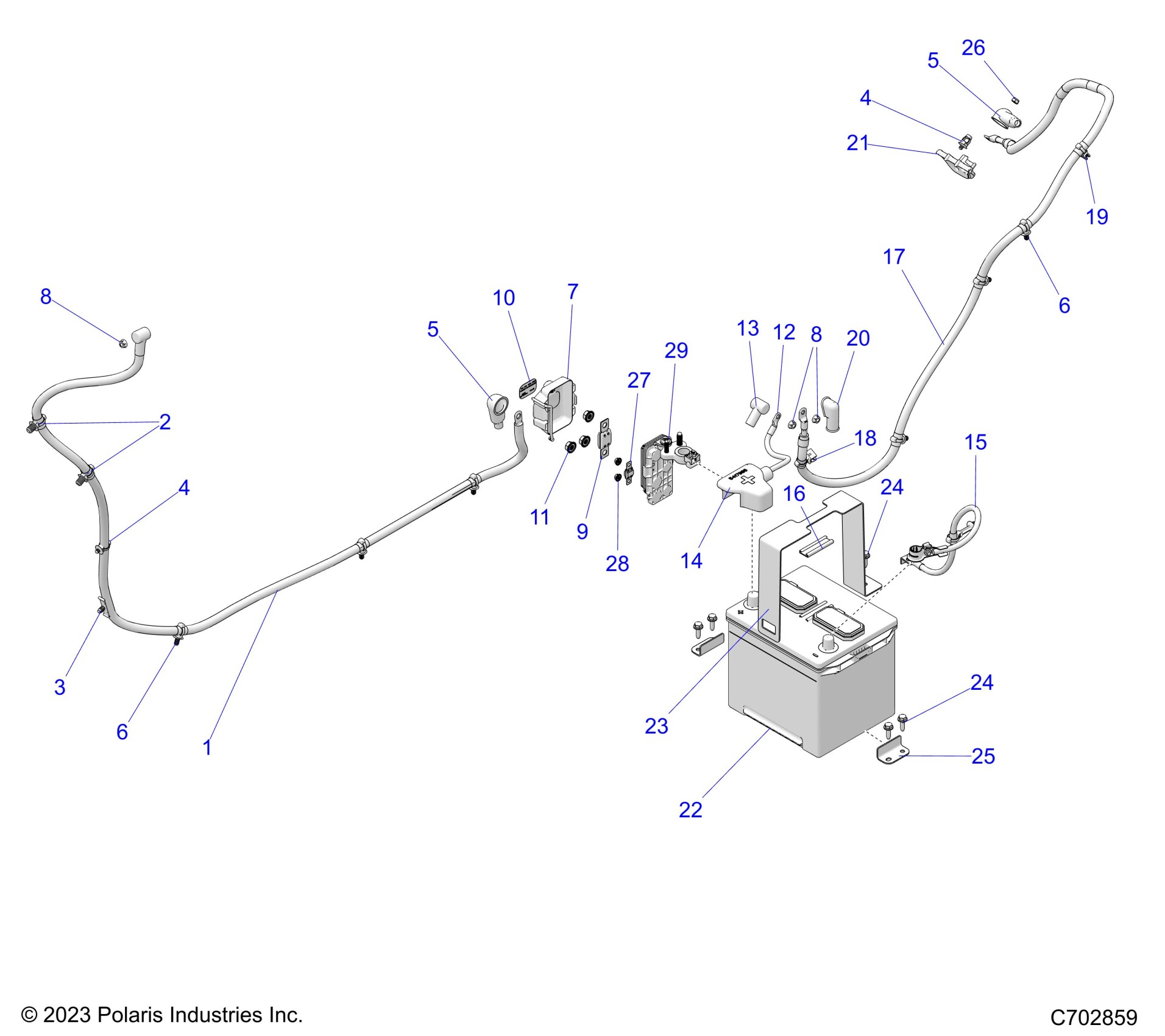

Polaris POLARIS XPEDITION XP ULTIMATE (R01) - G24G2K99AB/AH/BB/BH ELECTRICAL, BATTERY/CABLES - G24G2K99A/99B (C702859) Diagram

#

Description
Price

1

CABLE-PULSE [INCLUDES 2-6]

4019177

$131.99

2

CLIP-FIR TREE,9.7-10.0MM HOLE

7082414

$3.99

3

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.19

4

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

4

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

5

BOOT, BATTERY, RED

4011723

$7.99

5

BOOT, BATTERY, RED

4011723

$7.99

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

7

COVER-FUSEHOLDER

4080187

$10.39

8

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

8

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

9

FUSE-MEGA,225A

4080525-225

$35.99

10

LABEL-PDM

7197272

$3.19

11

NUT-HXFL-M8X1.25 8 ZPC SPC

7548084

$5.59

12

CABLE-POWER,BATT,START [INCLUDES 13 & 14]

4081518

$35.99

13

CAP-CABLE, RED

5418245

$5.59

14

COVER-BATT,TERM,B+

5417986

$6.39

15

CABLE-GROUND,BATTERY

4081830

$51.99

16

STRAP-BATT,SPACER,RUBBER

5416083

$3.99

17

CABLE-POWER,STARTER,2P [INCLUDES 1, 5 & 18-20]

4081517

$99.99

18

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

19

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

20

BOOT,BTTRY CABLE,RED,POS

5411570

$7.19

21

BRKT-SPRT,CABLE,STRTR,35DG,BLK

5465099-070

$14.39

22

BATTERY-575 CCA,FLOODED,FILLED

4014132

Unavailable

22

BATTERY-HD,AGM,SEALED,R2 [HD OPTION]

4081855

$183.99

23

STRAP-BATTERY,STD

5273478

$19.99

24

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

24

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

25

BRKT-BATTERY,ECOAT

5272087-329

$10.39

26

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

27

FUSE-MIDI, 40A

4080524-40

$14.39

28

NUT-HXFL-M5X0.8 8 ZTC SPC

7548077

$12.31

29

ASM-FUSEHOLDER,BATT,TERM

4080188

$87.99
