Description

Price

1

CAP-PRESSURE

1241379

$35.99

2

ASM-RADIATOR,CORE,HVAC

1241447

$460.19

3

FAN-ASSEMBLY,HVAC

2415296

$491.39

4

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

5

BRKT-ROUTING GROMMET,BLK

5269611-329

$10.55

6

BRKT-RADIATOR MOUNT,HVAC,ECOAT

5269919-329

$11.43

7

BRKT-COOLANT BOTTLE,ECOAT

5272723-329

$55.99

8

HOSE-BOTTLE TO SPLICE,TILT

5418143

$27.99

9

GROMMET-ROUTING

5418786

$23.99

10

CLIP-ROUTING,COOLANT-VENT

5458510

$3.99

11

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

12

HOSE CLAMP, RED

7080003

$1.49

13

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

14

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

15

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

16

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$27.99

17

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

18

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

19

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

19

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

20

SCR-M6X1X16 TR/TX-M

7518936

$3.99

21

SHROUD-RADIATOR,HVAC

5456828

$39.99

22

SPRINGBAND-CLAMP,BLK

7082308

$5.59

22

SPRINGBAND-CLAMP,BLK

7082308

$5.59

23

TUBE-COOLANT,1"

5143303

$43.99

24

HOSE-ENG INLET,REAR

5417283

$23.99

25

HOSE-ENG INLET,FRT

5417321

$23.99

26

HOSE-COOLANT,HVAC,TEE,UPPER

5417455

$23.99

27

HOSE-COOLANT,HVAC,TEE,LOWER

5417456

$5.59

28

HOSE-SPLICE TO TEE

5418141

$27.99

29

CONNECTOR-TEE,1",1",1" BARBED

7052373

$10.39

30

CONNECTOR-TEE,1X1X0.5

7052530

$5.59

31

CONNECTOR-1" SPLICE,BARBED

7055611

$3.99

32

HOSE-UPPER, RADIATOR,HVAC

5417280

$39.99

33

HOSE-ENGINE OUTLET

5418807

$39.99

34

ASM-COOLANT HOSE,VENTED

1244795

$47.99

35

ASM-VENT LINE,2P

2522362

$31.99

36

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

37

ASM-TANK,SURGE

1244655

$91.99

38

TRAY-ROUTING,RH,BLK

5465540-070

$19.99

39

TRAY-ROUTING,FRONT,BLK

5465649-070

$27.99

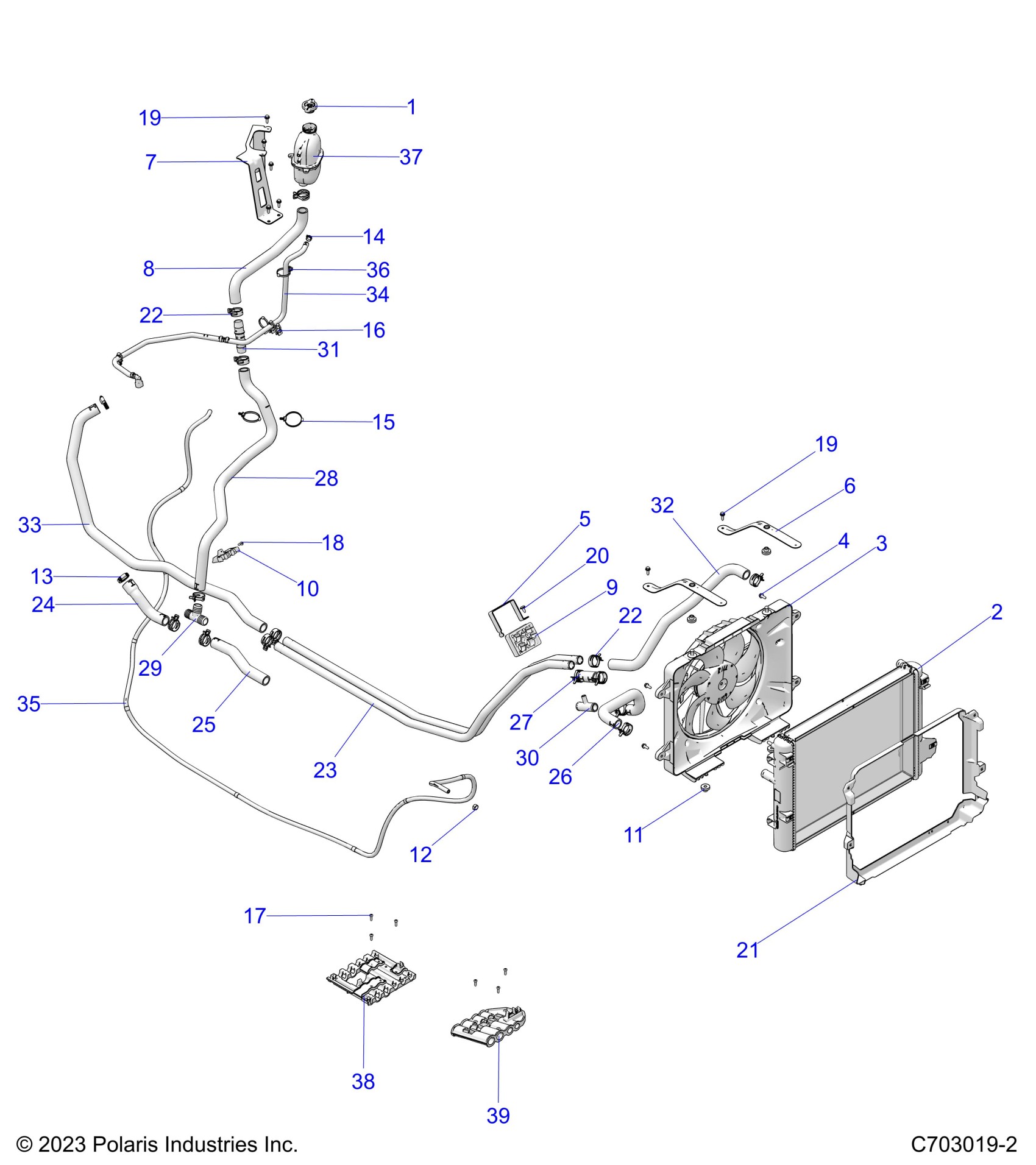

Polaris POLARIS XPEDITION XP NORTHSTAR (R02) - G24G2W99AB/AH/BB/BH ENGINE, COOLING - G24G2W99A/99B (C703019-2) Diagram

CAP-PRESSURE

ASM-RADIATOR,CORE,HVAC

FAN-ASSEMBLY,HVAC

SCREW-HXFL-M6X1.0X16 8.8 ZPB

BRKT-ROUTING GROMMET,BLK

BRKT-RADIATOR MOUNT,HVAC,ECOAT

BRKT-COOLANT BOTTLE,ECOAT

HOSE-BOTTLE TO SPLICE,TILT

GROMMET-ROUTING

CLIP-ROUTING,COOLANT-VENT

GROMMET-FLANGED,.36X.56X1.06

HOSE CLAMP, RED

CLAMP-HOSE(WORM DR)25-40MM

CLAMP-HOSE, 17/32, GREEN

CLIP FIR-TREE,DIA6-33MM

STRAP-CABLE TIEW/EDGECLIP3-6MM

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

SCR-M6X1X16 TR/TX-M

SHROUD-RADIATOR,HVAC

SPRINGBAND-CLAMP,BLK

SPRINGBAND-CLAMP,BLK

TUBE-COOLANT,1"

HOSE-ENG INLET,REAR

HOSE-ENG INLET,FRT

HOSE-COOLANT,HVAC,TEE,UPPER

HOSE-COOLANT,HVAC,TEE,LOWER

HOSE-SPLICE TO TEE

CONNECTOR-TEE,1",1",1" BARBED

CONNECTOR-TEE,1X1X0.5

CONNECTOR-1" SPLICE,BARBED

HOSE-UPPER, RADIATOR,HVAC

HOSE-ENGINE OUTLET

ASM-COOLANT HOSE,VENTED

ASM-VENT LINE,2P

CLIP-EDGE,1-3MM,6-45MM,SERT.

ASM-TANK,SURGE

TRAY-ROUTING,RH,BLK

TRAY-ROUTING,FRONT,BLK
