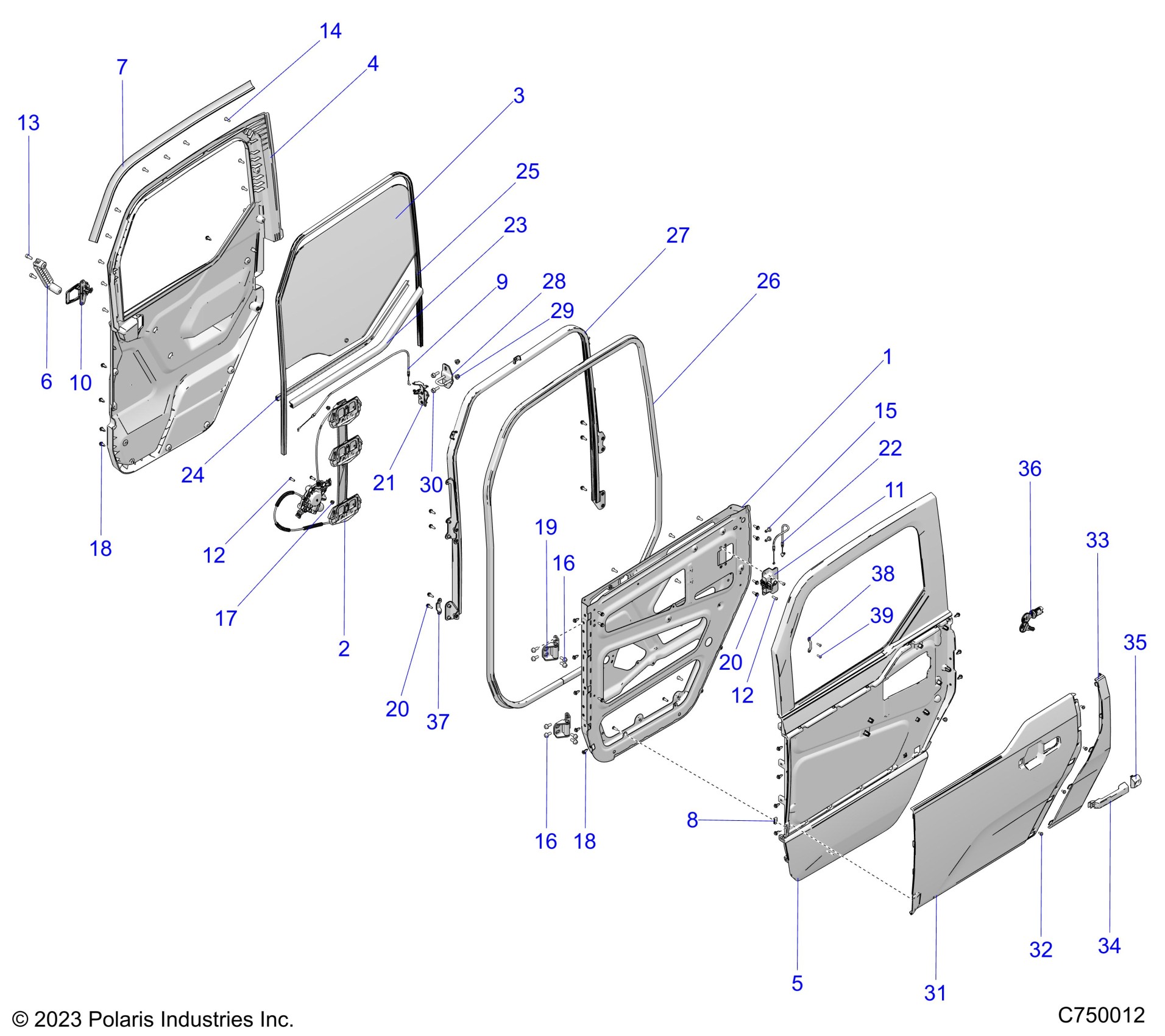

Polaris POLARIS XPEDITION XP NORTHSTAR (R01) - G25G2W99AB/AP/AK/BB/BP/BK BODY, DOOR ASSEMBLY Diagram

#

Description
Price

-

ASM-DOOR,POWER,LH [INCLUDES 1-27]

2637917

$1,759.99

-

ASM-DOOR,POWER,RH [INCLUDES 1-27]

2637918

$1,759.99

1

WELD-FR,HALF,FRONT,LH,BLK [INCLUDES 38 & 39]

1027132-458

$742.49

1

WELD-FR,HALF,FRONT,RH,BLK [INCLUDES 38 & 39]

1027133-458

$742.49

2

ASM-REGULATOR,POWER WINDOW,LH

2637925

$281.59

2

ASM-REGULATOR,POWER WINDOW,RH

2637926

$281.59

3

GLASS-WINDOW,DOOR,FRNT,LH

2637929

$82.49

3

GLASS-WINDOW,DOOR,FRNT,RH

2637930

$82.49

4

PNL-DOOR,INT,LH,POWER,BLK

5456867-070

$327.99

4

PNL-DOOR,INT,RH,POWER,BLK

5456868-070

$327.99

5

PNL-DOOR,EXT,BASE,LH,BLK

5465166-070

$355.99

5

PNL-DOOR,EXT,BASE,RH,BLK

5465167-070

$355.99

6

HANDLE-GRAB,DOOR,BLK

5465274-070

$13.59

7

SEAL-EXTRSN,14.00X12.70,995MM

5526544-995

$43.99

8

CLIP-U SPEED NUT

7081305

$1.99

9

CABLE-DOOR,INTERNAL

7082665

$14.39

10

ASM-HANDLE,DOOR INNER

7082692

$39.99

11

ASM-ACTUATOR,EXT,LH

7083143

$71.99

11

ASM-ACTUATOR,EXT,RH

7083144

$71.99

12

BOLT-M6X1.0X20,PH/TX-OLIVE D

7518616

$1.49

12

BOLT-M6X1.0X20,PH/TX-OLIVE D

7518616

$1.49

13

SCR-TXBH-M8X1.25X20 10.9 ZTB

7527948-20

$2.39

14

SCR-TXPH-#14 X .75 HI-LO RIE

7519731

$3.99

15

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

16

SCR-HXFL-M8X1.25X20 10.9ZFB P

7528211

$1.59

16

SCR-HXFL-M8X1.25X20 10.9ZFB P

7528211

$1.59

17

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

18

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

18

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

19

ASM-HINGE,FRONT

2638401

$23.99

20

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

20

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

21

ASM-LATCH,LH

7082930

$51.99

21

ASM-LATCH,RH

7082931

$51.99

22

CABLE-DOOR,EXTERNAL

7082663

$14.39

23

SEAL-BELTLINE,FRONT,A

5522389

$27.99

24

SEAL-BELTLINE,FRONT,B

5522390

$27.99

25

SEAL-WINDOW,RUN CHANNEL,FRONT

5526360

$55.99

26

SEAL-BULB,FRONT,FULL DOOR

5526487

$87.99

27

WELD-FRAME,WINDOW,FRONT,LH

1026476

Unavailable

27

WELD-FRAME,WINDOW,FRONT,RH

1026477

Unavailable

28

ASM-STRIKER

2638472

$27.99

29

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

30

SCR-HXFL-M8X1.25X25 10.9 ZFB

7521332-25

$3.73

31

PNL-DOOR,EXT,TRM,PNT,LH,M.GRN [AB] [BB] [MOSS GREEN]

5465117-975

$311.99

31

PNL-DOOR,EXT,TRM,PNT,LH,M.S.GR [AK] [BK] [SUPER GRAPHITE]

5465117-894

$311.99

31

PNL-DR,EXT,TRM,PNT,LH,MD BLUE [AP [BP] [MIDNIGHT BLUE]

5465117-469

$311.99

31

PNL-DOOR,EXT,TRM,PNT,RH,M.GRN [AB] [BB] [MOSS GREEN]

5465118-975

$311.99

31

PNL-DOOR,EXT,TRM,PNT,RH,M.S.GR [AK] [BK] [SUPER GRAPHITE]

5465118-894

$311.99

31

PNL-DR,EXT,TRM,PNT,RH,MD BLUE [AP [BP] [MIDNIGHT BLUE]

5465118-469

$311.99

32

SCR-TXPH-1/4X1/2 ZBK SPC

7521141

$3.99

33

PNL-DOOR,EXT,FILLER,LH,BLK

5456879-070

$35.99

33

PNL-DOOR,EXT,FILLER,RH,BLK

5456880-070

$35.99

34

HANDLE-ACTUATOR,EXT [INCLUDES SCREW]

5459569

$31.99

34

SCR-HANDLE,DOOR

7528227

$2.39

35

HANDLE-ACTUATOR,EXT,PLUG

5457811

$10.39

36

ASM-ACTUATOR,EXT,CORE,5

7082788

$59.99

37

BRKT-STRAP,LIMIT

5271393

$5.59

38

WIREFORM-HINGE,DOOR

5345470

$4.79

39

RIVET-3/16-.090-.290

7661637

$1.49
