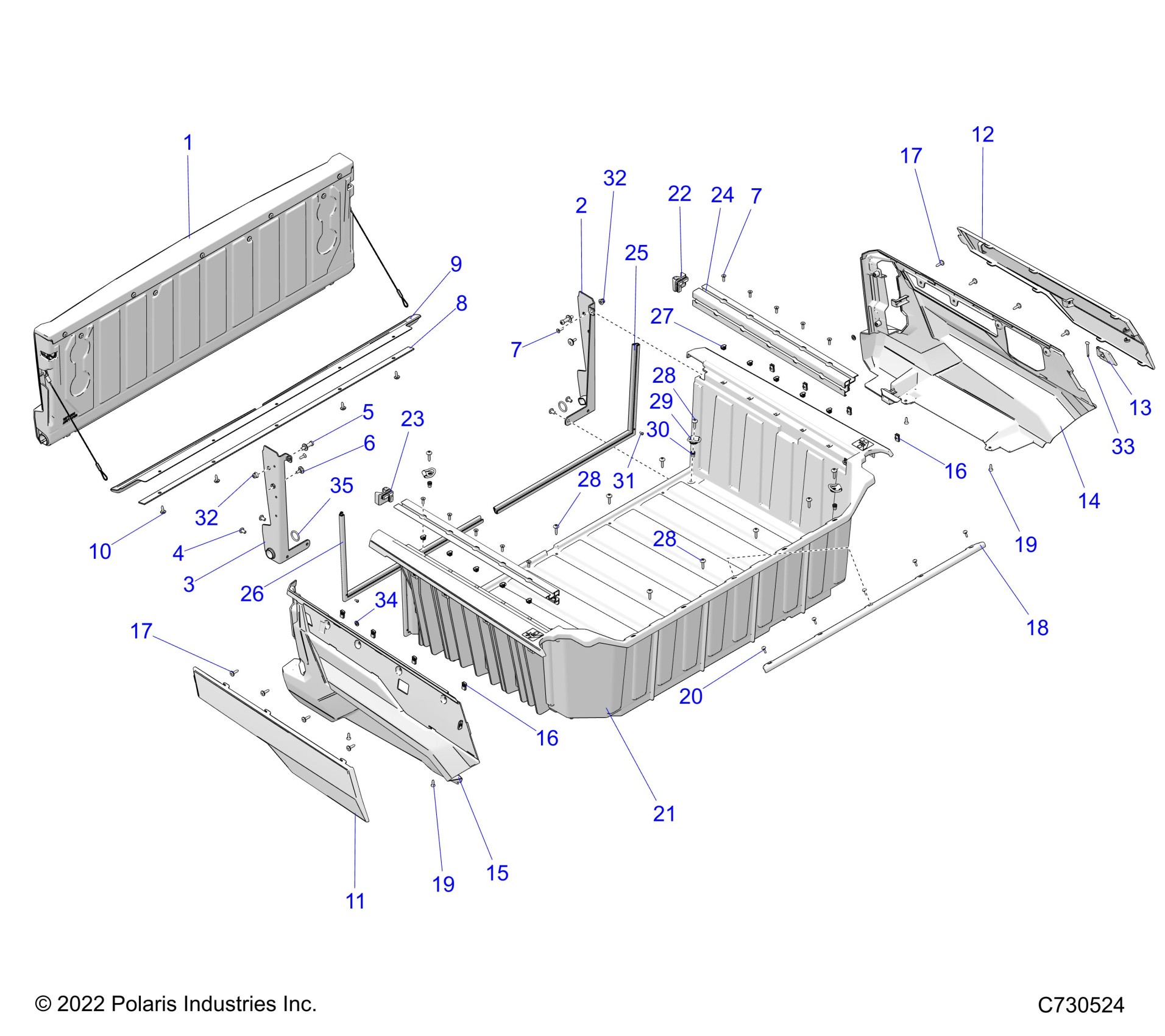

Polaris POLARIS XPEDITION XP NORTHSTAR (R01) - G25G2W99AB/AP/AK/BB/BP/BK BODY, BOX ASSEMBLY, REAR Diagram

#

Description
Price

1

ASM-TAILGATE [SEE BODY - TAILGATE ASM.]

----

Unavailable

2

WELD-TAILGATE SUPPORT,LH,BLK

1028843-458

$64.99

2

WELD-TAILGATE SUPPORT,LH,BLK

1028843-458

$64.99

3

WELD-TAILGATE SUPPORT,RH,BLK

1028844-458

$64.99

4

SCR-TXTH-M8X1.25X15 8.8 ZODP30

7520311

$3.99

5

PIN-STRIKER,M8

7663084

$9.99

6

SCR-TXTH-M6X1.0X20 ZPB SHDR

7520730

$4.76

7

SCR-M6X20MM,HXSOC FHCS,BG

7528307

$0.79

7

SCR-M6X20MM,HXSOC FHCS,BG

7528307

$0.79

8

SEAL,DRIP-TRAY

5526506

$11.41

9

TRAY-DRIP,BLK

5274724-458

$119.99

10

SCR-M6X1X16 TR/TX-M

7518936

$3.97

11

PANEL-BOX,TRIM,LH,PNT,M.GREEN [AB] [BB] [MOSS GREEN]

5465129-975

$184.99

11

PANEL-BOX,TRIM,LH,PNT,M.S.GRPH [AK] [BK] [SUPER GRAPHITE]

5465129-894

$184.99

11

PANEL-BOX,TRIM,LH,PNT,MD.BLU [AP [BP] [MIDNIGHT BLUE]

5465129-469

$184.99

12

PANEL-BOX,TRIM,RH,PNT,M.GREEN [AB] [BB] [MOSS GREEN]

5465130-975

$184.99

12

PANEL-BOX,TRIM,RH,PNT,M.S.GRPH [AK] [BK] [SUPER GRAPHITE]

5465130-894

$184.99

12

PNL-BOX,TRM,RH,PNT,MIDNGHTBLUE [AP [BP] [MIDNIGHT BLUE]

5465130-469

$184.99

13

PANEL-BOX,LATCH,LH,BLK

5457251-070

$7.27

14

ASM-PANEL,BOX,OUTER,LH,BLK

2639948-070

$198.48

15

ASM-PANEL,BOX,OUTER,RH,BLK

2639949-070

$198.48

16

CLIP-U SPEED NUT

7081305

$1.98

16

CLIP-U SPEED NUT

7081305

$1.98

17

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

17

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

18

ASM-SEAL,CARGO,BOX,WPER

2639493

$109.99

19

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.17

19

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.17

20

SCREW-M4.2X1.40,12,HEX,BUTT,SHLD

7518518

$1.59

21

K-ASM,BOX,CARGO,XPED

2212029

$1,099.99

22

BUMPER-BOX,TAILGATE,LH

5418788

$4.76

23

BUMPER-BOX,TAILGATE,RH

5418789

$4.76

24

RAIL-BOX,MACH

5144443

$164.99

25

SEAL-TAILGATE,LH

5526501

$99.99

26

SEAL-TAILGATE,RH

5526502

$99.99

27

NUT-PAL NUT,M6

7548058

$3.97

28

SCR-TXTH-M6X1.0X30 T40 ZPB

7520748

$3.97

28

SCR-TXTH-M6X1.0X30 T40 ZPB

7520748

$3.97

29

RING,TIEDOWN 700087

7081195

$11.32

30

NUT-RIVNUT,HEX,M6X1.00

7547790

$3.17

31

SCR-#8-32X.375",TORX,TRI-S

7518256

$2.38

32

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.38

32

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.38

33

PIN-HINGE,DIN BOX

5451236

$8.99

34

WSHR-FLAT-M8X1.6 ZTB

7557234

$2.38

35

O-RING,28.17X3.53,VITON,60A

5418014

$4.84
