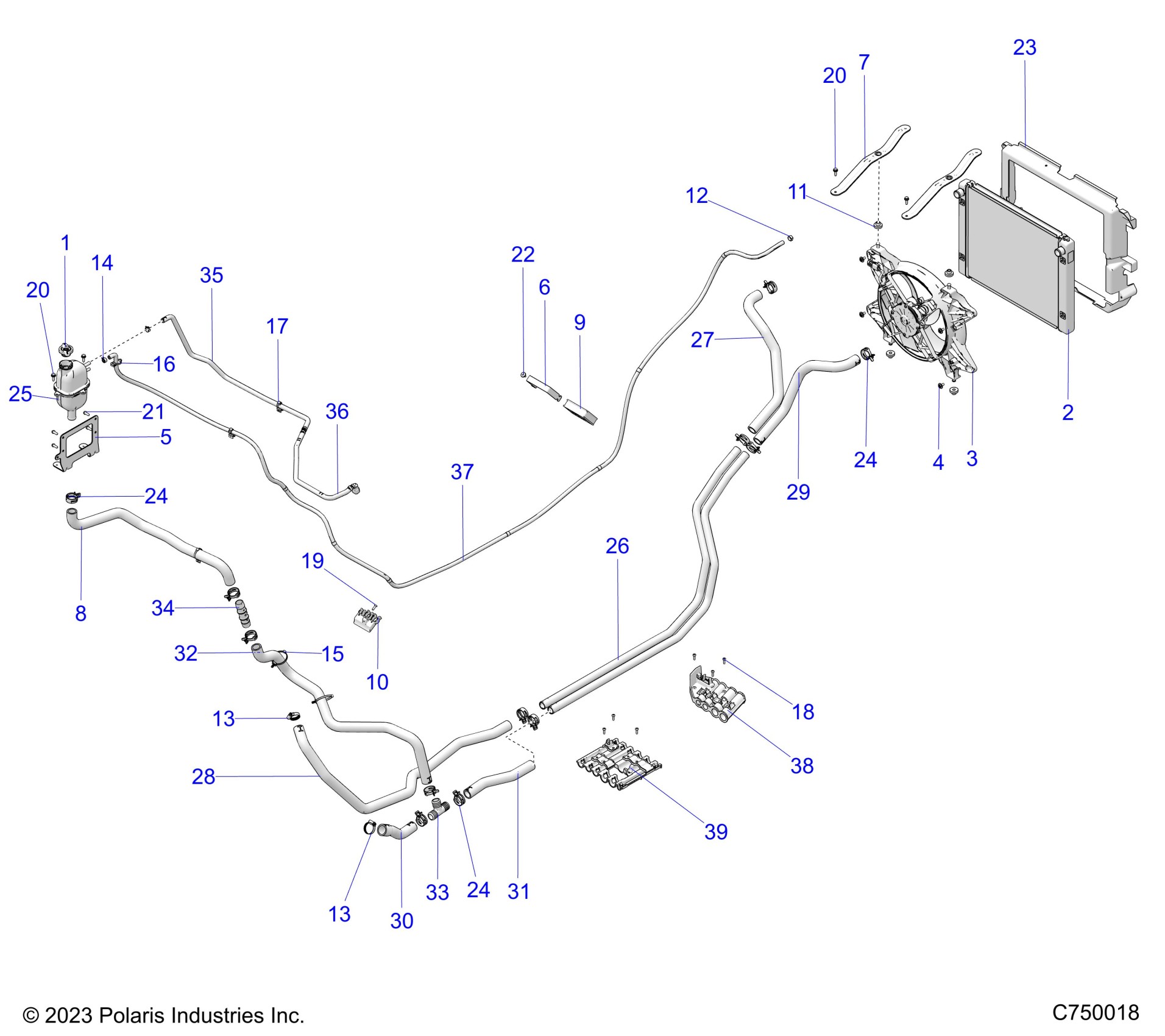

Polaris POLARIS XPEDITION ADV ULTIMATE (R01) - G24GVK99AF/AN/BF/BN ENGINE, COOLING - G24GVK99A/99B (C750018) Diagram

#

Description
Price

1

CAP-PRESSURE

1241379

$36.41

2

ASM-RADIATOR,CORE

1244681

$589.99

3

FAN-RADIATOR,ASM

2416113

$304.98

4

BOLT, M6X15MM

7519585

$9.52

5

BRKT-COOLANT BOTTLE,BLK

5269295-329

$34.99

6

BRKT-ROUTING GROMMET,BLK

5269611-329

$11.99

7

BRKT-RADIATOR MOUNT,ECOAT

5273084-329

$44.99

8

HOSE-BOTTLE TO SPLICE,ADV

5418142

$43.56

9

GROMMET-ROUTING

5418786

$28.32

10

CLIP-ROUTING,COOLANT-VENT

5458510

$3.97

11

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.35

12

HOSE CLAMP, RED

7080003

$1.19

13

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

13

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

14

CLAMP-HOSE, 17/32, GREEN

7081432

$3.97

15

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

16

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

17

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$33.32

18

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.19

19

SCREW-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.97

20

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

20

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

21

SCREW-HXFL-M6X1.0X16 8.8 ZY3

7518548

$1.59

22

SCR-M6X1X16 TR/TX-M

7518936

$3.97

23

SHROUD-RADIATOR

5456827

$54.99

24

SPRINGBAND-CLAMP,BLK

7082308

$5.56

24

SPRINGBAND-CLAMP,BLK

7082308

$5.56

24

SPRINGBAND-CLAMP,BLK

7082308

$5.56

25

ASM-TANK,SURGE

1244655

$97.13

26

TUBE-COOLANT,1"

5143303

$58.08

27

HOSE-UPPER,RADIATOR

5417279

$48.56

28

HOSE-ENGINE OUTLET

5418807

$53.24

29

HOSE-LWR,RAD,LONG

5417281

$48.56

30

HOSE-ENG INLET,REAR

5417283

$28.32

31

HOSE-ENG INLET,FRT

5417321

$28.32

32

HOSE-SPLICE TO TEE

5418141

$38.71

33

CONNECTOR-TEE,1",1",1" BARBED

7052373

$10.32

34

CONNECTOR-1" SPLICE,BARBED

7055611

$4.76

35

ASM-COOLANT HOSE,VENTED [INCLUDES 36]

1244796

$67.76

35

HOSE-COOLANT,FITTING TO SPLICE

5417981

Unavailable

36

HOSE-COOLANT,FITTING TO SPLICE

5418542

$15.22

37

ASM-VENT LINE,2P

2522427

Unavailable

38

TRAY-ROUTING,FRONT,BLK

5465649-070

$28.32

39

TRAY-ROUTING,RH,BLK

5465540-070

$24.27
