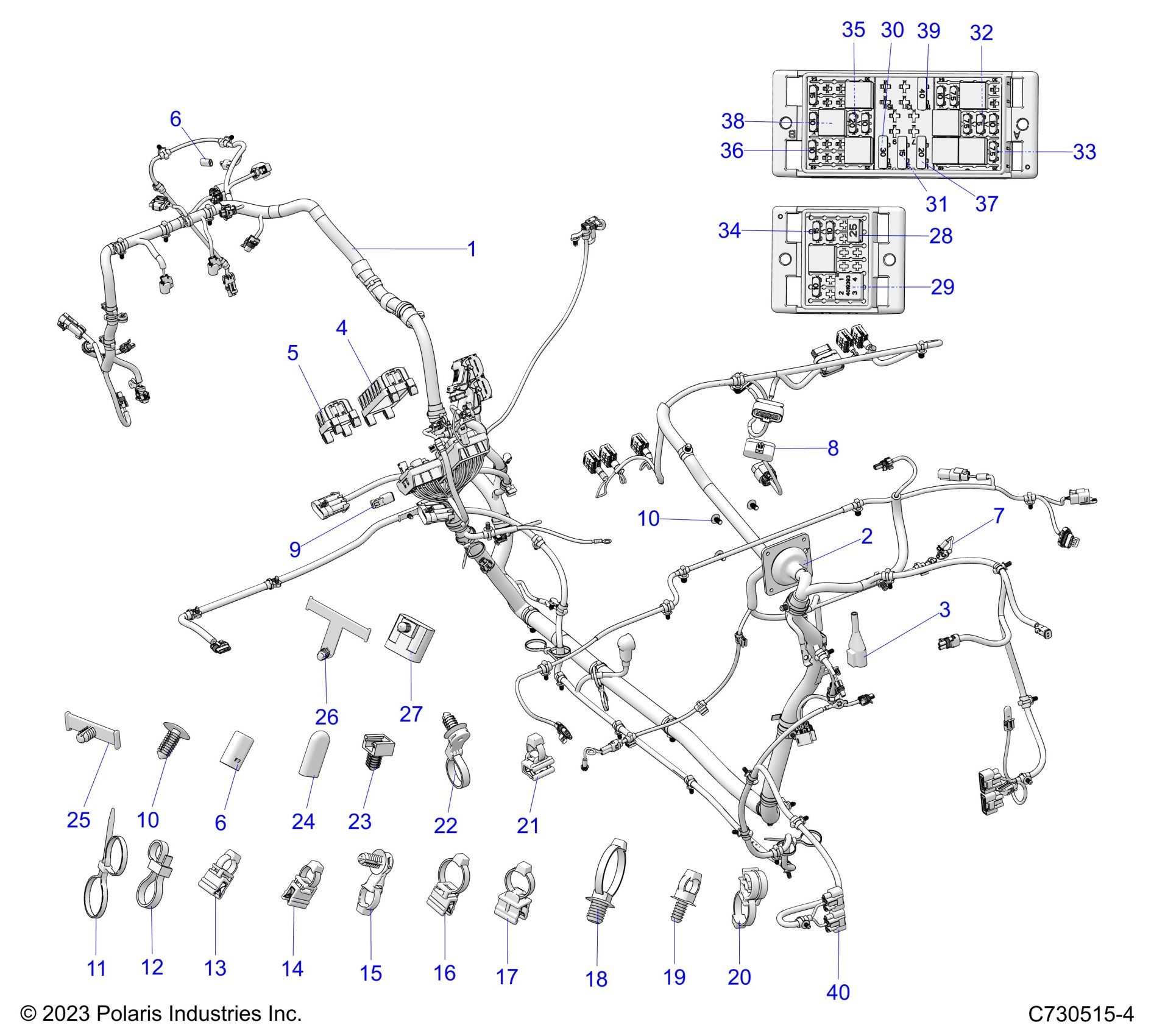

Polaris POLARIS XPEDITION ADV ULTIMATE (R01) - G24GVK99AF/AN/BF/BN ELECTRICAL, HARNESS-CHASSIS - G24GVK99A/99B (C730515-4) Diagram

#

Description
Price

1

HARN-CHASSIS,2P [INCLUDES 2-39] [TO 4/22/2024]

2417057

$1,749.99

1

HARN-CHASSIS,2P [INCLUDES 2-39] [FROM 4/22/2024]

2417875

Unavailable

2

GROMMET - 65MM, W/FLANGE, BLK

5814560

$12.70

3

THROTTLE-CON BOOT

4080238

$9.70

4

COVER-PDM,BASE

----

Unavailable

5

COVER-PDM, BASE, 2

4080285

$40.46

6

CAP EVAP CONNECTOR

4018066

$4.03

6

CAP EVAP CONNECTOR

4018066

$4.03

7

LED-PANEL MNT,12V,BLUE

2416797

$74.99

8

CAP-EVAP CONNECTOR

4018655

$4.03

9

DIODE-2 AMP

2415626

$15.37

10

CLIP-FIR TREE,DART,6.35MM

7670090

$1.19

10

CLIP-FIR TREE,DART,6.35MM

7670090

$1.19

11

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.84

12

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$4.03

13

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.56

14

CLIP, EDGE, HARNESS

7081890

$10.32

15

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.17

16

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

17

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.94

18

CLIP-FIR TREE,9.7-10.0MM HOLE

7082414

$3.97

19

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

20

CLIP-OMEGA,CABLE,4-10MM DIA

7082744

$2.38

21

CLIP-EDGE,1-3MM THICKNESS

7082401

$8.99

22

CLIP OFFSET 12.5MM FIRTREE(BK)

7082458

$4.74

23

CLIP-CONNECTOR,GREY

4018311

$3.99

24

CAP - VINYL, 125X375, BLACK

5438230

$5.65

25

CLIP-XMAS,6.35MM HOLE,TAPE-ON

7082411

$3.17

26

CLIP-XMAS, 31MM OFFSET, TAPE-ON

7082412

$3.17

27

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

28

BREAKER-CIRCUIT,ETA,TI,25A, MINI

4080367

$54.99

29

SSR-4PIN

4019393

$128.24

30

FUSE-ATC 30 AMP

4017557

$49.99

31

FUSE, 15 AMP

4011682

$9.67

32

FUSE-5A,MINI BLADE

4011652

$11.32

33

FUSE - 7.5, MINI BLADE (BROWN)

4011068

$11.32

34

FUSE-15AMP,MINI BLADE

4010859

$8.08

35

FUSE-PARK,20 AMP

2434017

$8.08

36

FUSE-IGNITION,10 AMP

2434016

$5.65

37

FUSE, 20 AMP

4011683

$11.60

38

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$36.41

39

FUSE, ATC 40 AMP

4012421

$43.56

40

HARN-900W,AC,2P

2415318

$194.99
