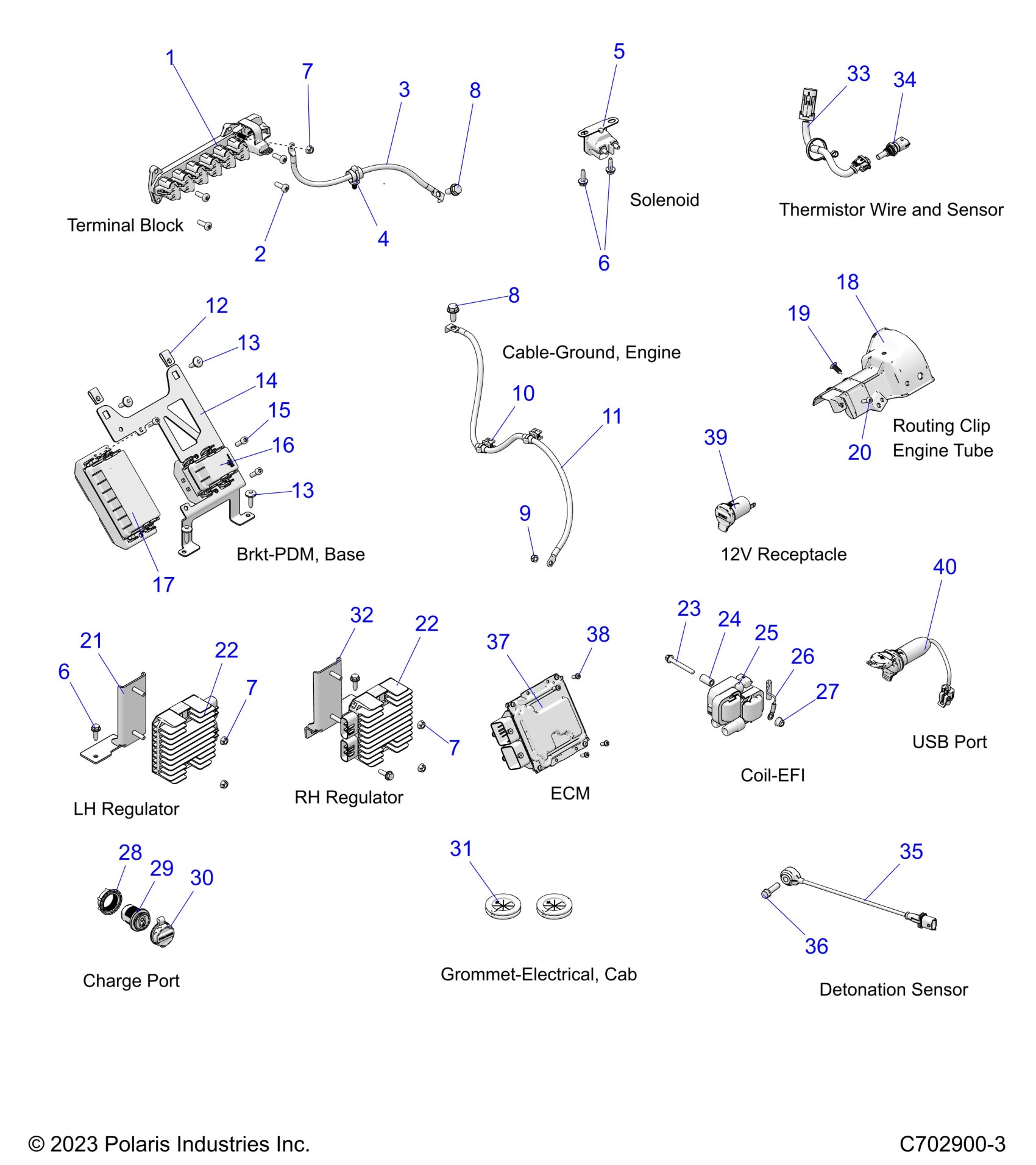

Polaris POLARIS XPEDITION ADV ULTIMATE (R01) - G24GVK99AF/AN/BF/BN ELECTRICAL, COMPONENTS - G24GVK99A/99B (C702900-3) Diagram

#

Description
Price

1

BLOCK-TERMINAL,3 POST,TALL

4016007

$44.99

1

FUSE-CARTRIDGE,40A

4013891

$31.99

1

PLUG,ACCY TB

5454283

$39.99

1

COVER,TB,JCASE

5454284

$27.99

2

SCR-TXPH-#14 X .75 HI-LO RIE

7519731

$3.99

3

CABLE-GROUND,PULSE

4019175

$43.99

4

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

5

SOLENOID-STARTER,SEALED

4014655

$49.99

6

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

6

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

7

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

7

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

7

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

8

SCR-HXFL-M8X1.25X20 TAP ZY3

7520764

$4.79

8

SCR-HXFL-M8X1.25X20 TAP ZY3

7520764

$4.79

9

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

10

STRAP-CABLE TIEW/EDGECLIP3-6MM

7082073

$27.99

11

CABLE-GROUND,ENGINE

4081552

$51.99

12

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

$1.49

13

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

13

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

14

BRKT-PDM,BASE,ECOAT

5272829-329

$31.99

15

SCREW-SH-M6X1.0X20 8.8 ZPB

7517305

$4.79

16

FUSE BLOCK SEE ELECTRICAL, WIRE HARNESS, CHASSIS

-------

Unavailable

17

FUSE BLOCK SEE ELECTRICAL, WIRE HARNESS, CHASSIS

-------

Unavailable

18

CLIP-ROUTING,ENGINE TUBE

5459040

$7.99

19

RETAINER-MOULDING,BLACK

5414462

$7.99

20

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

21

WELD-REGULATOR,LH,BLK

1026733-458

$35.99

22

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$123.99

22

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$123.99

23

SCR-M6X1.0X50.0 HX/FL-Y/D

7517932

$3.99

24

SPACER-COIL,FRONTIER

5133658

$7.19

25

COIL-EFI

4010425

Unavailable

26

JUMPER, COIL GROUND

4014422

$27.99

27

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

28

NUT-CHARGE PORT

5456622

Unavailable

29

ASM-CHARGE PORT,BASE [INCLUDES 28-30]

2415295

$40.46

29

PLUG-HARNESS CHARGE PORT

2415198

Unavailable

30

CAP-CHARGE PORT

5417215

$12.79

31

GROMMET-ELEC,CAB,SLIT

5415049

$3.99

32

WELD-REGULATOR,RH,BLK

1026734-458

$35.99

33

WIRE, THERMISTER LEAD

4014319

$75.99

34

SENSOR-THERMISTER

4010644

$87.13

35

SENSOR-DETONATION BOSCH

2410369

$76.89

36

SCREW-M8X1.25X30,HX/FL-YD

7517262

$5.59

37

ECM-HARD,MG1,112P DEPOP [DEALER INSTALL REQUIRED]

4018203

$648.22

38

SCR-#10X1/2-HI/LO-PN-T25, TRX-M

7519091

$3.19

39

RECEPTACLE-POD MNT,12 VOLT

4080487

$31.99

40

PORT-USB

4019210

$83.99
